Weed Eater XT 90 Gas Trimmer, XT 90

Model: XT 90 Gas Trimmer, XT 90

Back To Assemblies

Save Part Not Listed?
product name

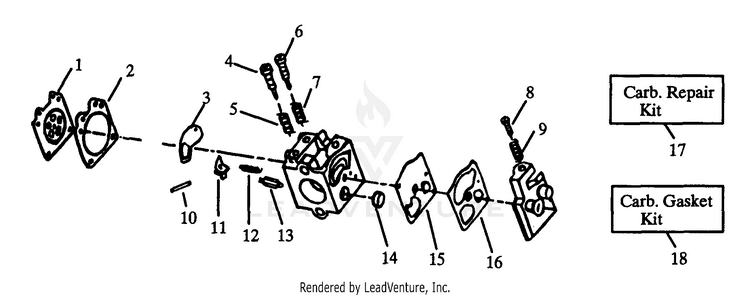

Carburetor Assembly (Part 1)

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
GASKET PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin PLN-505520125
...
11
Metering Lever PLN-505520127
...
12
Metering Lever Spring PLN-530035188
...
13
Needle PLN-503117001
...
14
Inlet Screen PLN-530035178
...
15
PUMP DIAPHRAGM PLN-504130807
...
16
GASKET PLN-504130906
...
17
Carb. Kwik Repair Kit (Contents 1, 2, 3, 10, 11, 12, 13, 14, 15, & 16) PLN-530035260
...
18
Carb. Gasket/Diaphragm Kit (Contents 1, 2, 3, 15, & 16) PLN-530035185
