Weed Eater XT 90 Gas Trimmer, XT 90

Model: XT 90 Gas Trimmer, XT 90

Back To Assemblies

Save Part Not Listed?
product name

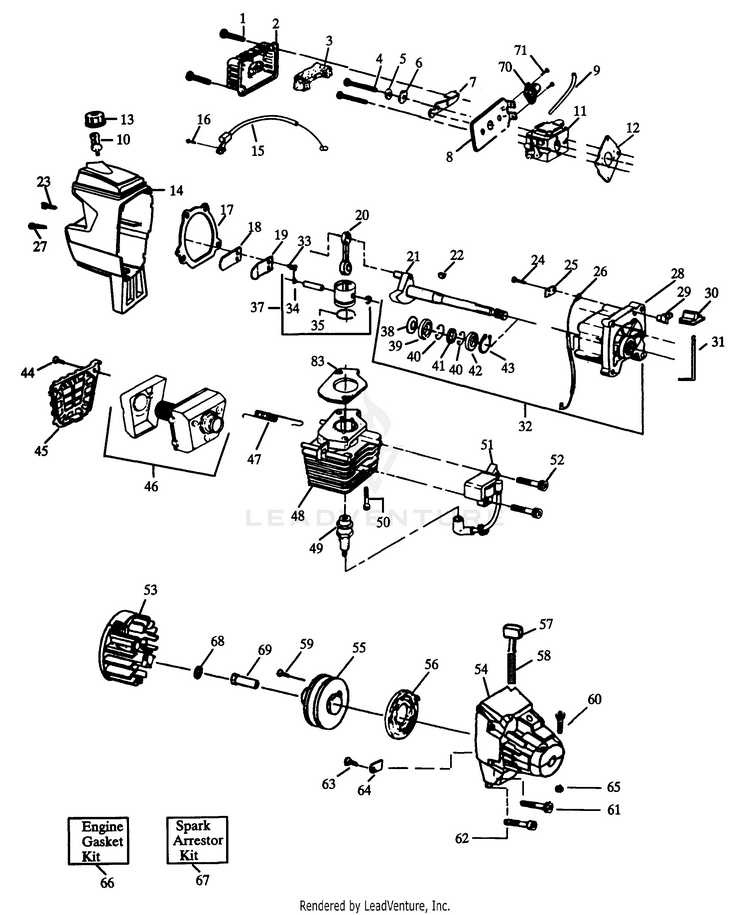

Engine Assembly

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter New Part Number For This IPL PLN-530038103
...
8
Air Filter Plate Type I PLN-530027527
...
8
Air Filter Plate Type II New Part Number For This IPL PLN-530037930
...
9
Fuel Line Kit Fuel Line PLN-530069247
...
9
Fuel Line Kit Return Line New Part Number For This IPL PLN-530069238
...
10
Assy-Fuel Pickup PLN-530095646
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Shroud & Tank Ass'y. Type I PLN-530027982
...
14
Shroud & Tank Ass'y. Type II New Part Number For This IPL PLN-530047086
...
15
Throttle Cable Ass'y. Type I PLN-530027955
...
15
Throttle Cable Ass'y. Type II New Part Number For This IPL PLN-530037498
...
16
Screw PLN-530015775
...
17
Crankcase/Shroud Gasket PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (Incl. Bearings) PLN-530010960
...
21
Crankshaft Ass'y. PLN-530010945
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015772
...
24
Screw PLN-530015780
...
25
Switch Insulator PLN-530027546
...
26
Lead Wire PLN-530027547
...
27
Screw PLN-530015771
...
28
Crankcase Ass'y. (Incl. 39-42) PLN-530014016
...
29
Switch Ramp PLN-530027545
...
30
Switch Button PLN-530038309
...
31
Switch Spring PLN-530027959
...
32
Assy-C'case/C'shaft Assy. (Incl. 21, 28, 38 & 43) PLN-530071705
...
33
SCREW 6-19X.437 PLN-545227101
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring PLN-530025875
...
36
GASKET CYL W/ ADHESIVE PLN-530019267
...
37
Piston Kit (Incl. 34, 35 & Pin) PLN-530069899
...
38
Spacer PLN-530015788
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027781
...
46
Muffler Kit PLN-530069310
...
47
Muffler Attachment Spring PLN-530036409
...
48
Cylinder PLN-530012235
...
49
Spark Plug PLN-530030077
...
50
Screw PLN-530001624
...
51
Ignition Module Kit PLN-530039134
...
52
Screw PLN-530015816
...
53
Flywheel Ass'y PLN-530047198
...
54
Fan Housing PLN-530014045
...
55
Kit-Starter Pulley PLN-530071387
...
56
STARTER SPRING PLN-545008010
...
57
Starter Handle PLN-530027569
...
58
Rope Kit PLN-530069232
...
59
Screw New Part Number For This IPL PLN-530016080
...
60
Screw PLN-530015767
...
61
Screw PLN-530015770
...
62
Screw PLN-530015769
...
63
Screw PLN-530015496
...
64
Retainer PLN-530027523
...
65
Locknut PLN-530015768
...
66
Engine Gasket Kit (Contents 12, 17, & 36) PLN-530069276
...
67
Spark Arrestor Kit PLN-952701612
...
68
Washer PLN-530015828
...
69
Drive Coupling PLN-530027953
...
70
Bulb Ass'y. New Part Number For This IPL PLN-530038874
...
71
Screw New Part Number For This IPL PLN-530016085
...
xx
Instruction Decal Type I Not Shown PLN-530027986
...
xx
Instruction Decal Type II Not Shown New Part Number For This IPL PLN-530037743
