Weed Eater XR-88 Gas Trimmer

Model: XR-88 Gas Trimmer

Save Part Not Listed?
product name

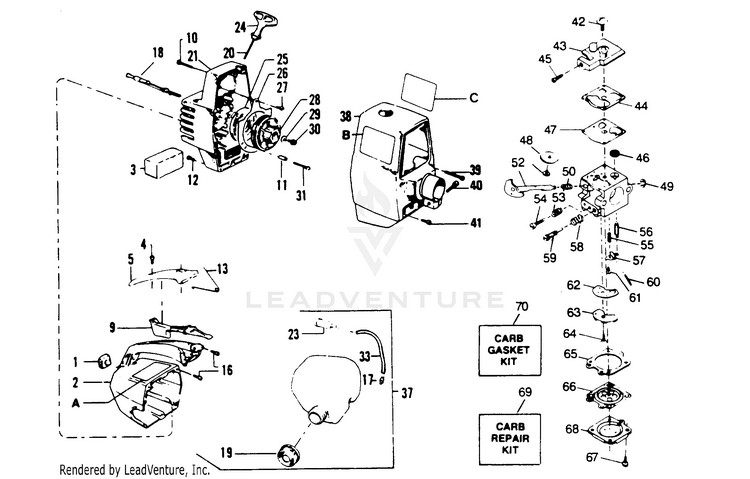

CARBURETOR, FUEL TANK, & STARTER

...
...
1
Bumper-Fuel Tank Housing PLN-530024436
...
2
Handle & Fuel Tank Housing PLN-530024656
...
3
Air Filter PLN-530024371
...
4
Screw-#8-16x3/4-Pan Hd. Handle Cover PLN-530015247
...
5
Handle Cover PLN-530024665
...
9
Throttle Trigger PLN-530024365
...
10
Screw-# 10-24x1-1/2"-Sems-Fan Housing Top PLN-530015583
...
11
Air Baffle Spacer PLN-530026122
...
12
Screw-# 10-24x5/8"-Sems Fan Housing-Bottom PLN-530015582
...
13
Spring-Trigger PLN-530024461
...
16
Screw-Line Limiter PLN-530015814
...
17
Fuel Line Fitting PLN-530026981
...
18
Choke Knob PLN-530024303
...
19
Assy-Fuel Cap PLN-530014347
...
20
Rope Kit PLN-530069231
...
21
Fan Housing Kit PLN-530069178
...
23
Assy-Fuel Pickup PLN-530095646
...
24
Handle Rope Kit PLN-530026792
...
25
KIT STARTER SPRING PLN-545008009
...
26
Air Baffle PLN-530026035
...
27
Screw-# 10-14x3/8"-Pan Hd-Air Baffle If your unit has been serviced with the metal fan housing, use P/N 15373-10-24xl/4-Fil.HD. instead of 13544, PLN-530015544
...
28
Starter Pulley PLN-530026048
...
29
Washer-Starter Pulley PLN-530015123
...
30
Screw-# 10x3/4" Hex Washer Hd.-Starter Pulley PLN-530015479
...
31
Screw-# 10-14x1-3/16" Air Baffle/Pump Mounting If your unit has been serviced with the metal fan housing, use P/N 15373-10-24xl/4-Fil.HD. instead of 13544, PLN-530015563
...
33
Line Kit PLN-530069247
...
37
Fuel Tank Assembly (inc. 17-19,23,33) PLN-530010776
...
38
Shroud PLN-530011778
...
39
Screw- # 10-24 x 1-1/3"-Fil Hd.-Shroud (Top) PLN-530015376
...
40
BOLT PLN-530093802
...
xx
HAND GUARD PLN-506093802
...
41
Screw- # 10-24x5/8"-Fil Hd.-Shroud Bottom PLN-530015168
...
42
Screw-Pump Cover PLN-530035017
...
43
Pump Cover Ass'y (incl #4) PLN-530035191
...
44
GASKET PLN-504130906
...
45
Screw-Idle Adjustment PLN-530035156
...
46
Fuel Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
47
PUMP DIAPHRAGM PLN-504130807
...
51
Screw-Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
52
Shaft Assembly Throttle PLN-530035132
...
53
Spring-Idle Needle PLN-530035023
...
54
Needle-Idle PLN-530035141
...
55
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
56
Valve-Inlet Needle Included in Carburetor Kwik Repair Kit. PLN-530035008
...
57
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
58
Spring-Hi Speed Needle PLN-530035036
...
59
H-NEEDLE PLN-501782201
...
60
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
61
Screw-Metering Lever Pin PLN-530035016
...
62
GASKET PLN-501781301
...
63
Plate-Circuit PLN-530035042
...
64
Screw-Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
65
Gasket-Metering Diaphragm PLN-530035151
...
66
DIAPHRAGM PLN-503896701
...
67
Screw Assembly-Metering Cover & Throttle Shaft Clip PLN-530035153
...
68
Cover-Metering Diaphragm PLN-530035149
...
69
Kit-Carb Kwik Repair PLN-530035185
...
70
Gasket Diaphragm Kit PLN-530069844
...
A
Start Inst. Fr./Eng. PLN-530027770
...
B
Model No. (R) PLN-530027772
...
C
Model No. (L) PLN-530027771

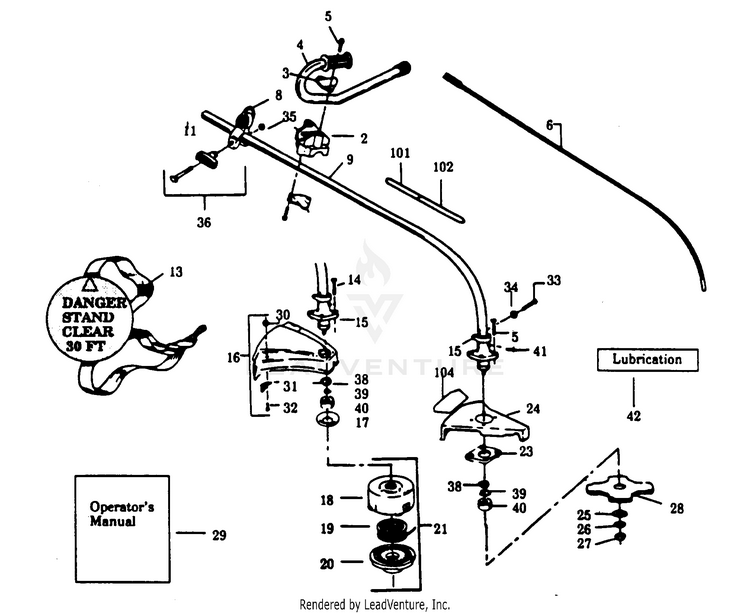

LOWER UNIT

...
...
2
Handlebar Clamp PLN-530012207
...
3
Handlebar Bracket PLN-530094572
...
4
Handlebar PLN-530093169
...
5
Screw 1/4 - 20 x 1- 1/16 PLN-530015791
...
6
Drive Shaft (Flex) PLN-530092261
...
8
Clamp Harness Ass'y. PLN-530094686
...
9
Drive Shaft Housing PLN-530093726
...
13
Shoulder Strap PLN-530094417
...
14
Screw PLN-530016107
...
15
Bearing Housing Ass'y. PLN-530094581
...
16
Shield Kit Ass'y. (Incl. #14 30 31, 32) PLN-530094594
...
17
Grass Washer PLN-530094571
...
18
Hub Ass'y. PLN-530094620
...
19
Spool w/Line PLN-702556
...
20
Cover PLN-530094494
...
21
Cutting Head Ass'y. (Incl. #18, 19, 20) PLN-952702553
...
23
Shield Retention Plate PLN-530027615
...
24
Shield PLN-530094576
...
25
Washer PLN-530093751
...
26
Washer--Belleville PLN-530016240
...
27
Nut 3/8 PLN-530093748
...
28
Weed Blade PLN-952701546
...
29
Operator's Manual PLN-530067173
...
30
Nut PLN-530403094
...
31
Line Limiter PLN-530094570
...
32
Screw # 10 - 24 x 5/8 PLN-530015037
...
33
Screw 1/4 - 20 x 1 PLN-530625509
...
34
Washer PLN-530092227
...
35
Locknut 1/4 - 20 PLN-530015197
...
36
HANDLE KIT PLN-530069347
...
38
Retaining Ring PLN-530091783
...
39
Washer PLN-530092216
...
40
Dust Cup PLN-530092359
...
41
Screw PLN-530015518
...
42
LUBE, FLEX SHAFT NLA PLN-952708514
...
101
Decal - Shaft Warning (Upper) PLN-530027864
...
102
Decal - Shaft Warning (Lower) PLN-530027865
...
104
Decal - Blade Direction PLN-530027883

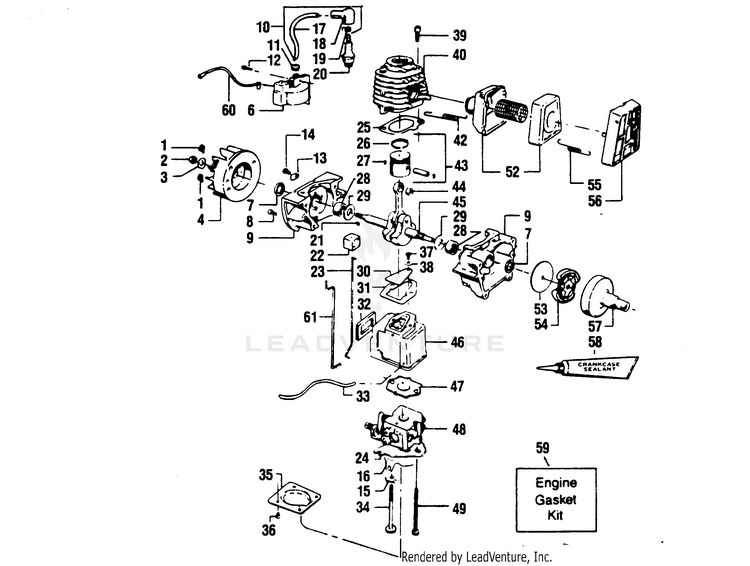

POWER UNIT

...
...
1
Spring-Starter Dog PLN-530023817
...
2
Flywheel-Nut PLN-530626605
...
3
Flywheel Washer PLN-530015127
...
4
Flywheel Assembly (incl.#1) PLN-530039114
...
6
Ignition Module Kit PLN-530069181
...
7
Crankcase Seal PLN-530019059
...
8
Screw-Crankcase PLN-530015369
...
9
Crankcase Assembly (Incl. #7, 28 & Qty. 4 of #8) PLN-530010757
...
10
High Tension-Load Assembly (Incl. #17, 18 & 19) PLN-502039103
...
11
Grommet-Plug Wire PLN-530024435
...
12
Screw PLN-530015816
...
13
Choke Wire Clamp PLN-530024651
...
14
Screw PLN-530015004
...
15
Washer PLN-530015254
...
16
Choke Shutter PLN-530024558
...
17
High Tension Lead Wire PLN-530039082
...
18
Spark Plug Boot PLN-530003934
...
19
Spark Plug Boot PLN-507475326
...
20
Spark Plug (RCJ-8) PLN-530035008
...
21
Key-Flywheel PLN-530015126
...
22
Boot-Throttle Choke Wire Included in Engine Gasket Kit. PLN-530023373
...
23
Throttle Wire (Red) PLN-530024902
...
24
Guide Plate PLN-530026237
...
25
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219
...
26
Ring-Piston Included in Engine Gasket Kit. PLN-530026681
...
27
Retainer-Wrist Pin PLN-530015162
...
28
Bearing-Crankcase PLN-530032029
...
29
Washer-Thrust-Crankcase PLN-530015351
...
30
Reed Valve PLN-530024438
...
31
Gasket-Carburetor Case to Crankcase Included in Engine Gasket Kit. PLN-530019108
...
32
Seal-Carburetor Case to Line Kit Included in Engine Gasket Kit. PLN-530019105
...
33
Line Kit PLN-530069238
...
34
Screw PLN-530015404
...
35
Cover-Carburetor Case PLN-530026029
...
36
Screw-#6-18x9/16" Carburetor Case Cover PLN-530015235
...
37
Screw-#5-19x5/16" Pan Hd. Reed Valve PLN-530015241
...
38
Washer-Reed Valve Screw PLN-530023367
...
39
Screw-# 14-20x3/4" Hex Socket Hd. Cylinder PLN-530015239
...
40
Cylinder PLN-530012191
...
42
Muffler Spring PLN-530036409
...
43
Piston Kit (Inc.26,27,Pin) PLN-530069241
...
44
Bearing-Wrist Pin PLN-530032092
...
45
Crankshaft & Rod Assemby (Inc.44) PLN-530010844
...
46
Carburetor Housing PLN-530024409
...
47
Gasket-Carburetor Included in Engine Gasket Kit. PLN-530019157
...
48
Carburetor PLN-530035183
...
49
Screw-# 10-24x1-7/8" Fil. Hd. Carburetor PLN-530015379
...
52
Muffler Ass'y. PLN-530069243
...
53
Kit-Clutch Washer PLN-530069196
...
54
Kit-Clutch Assembly (Incl. Washer) PLN-530069194
...
55
Spring-Muffler Guard PLN-530024932
...
56
Guard-Muffler PLN-530024855
...
57
Coupling & Bearing Assembly PLN-530010797
...
58
Sealent-Crankcase (Not Supplied with Unit) PLN-530030054
...
59
Kit-Engine Gasket PLN-530069219
...
60
Lead Wire Switch PLN-530024158
...
61
Choke Wire PLN-530026236
