Weed Eater XR-80A Gas Trimmer

Model: XR-80A Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

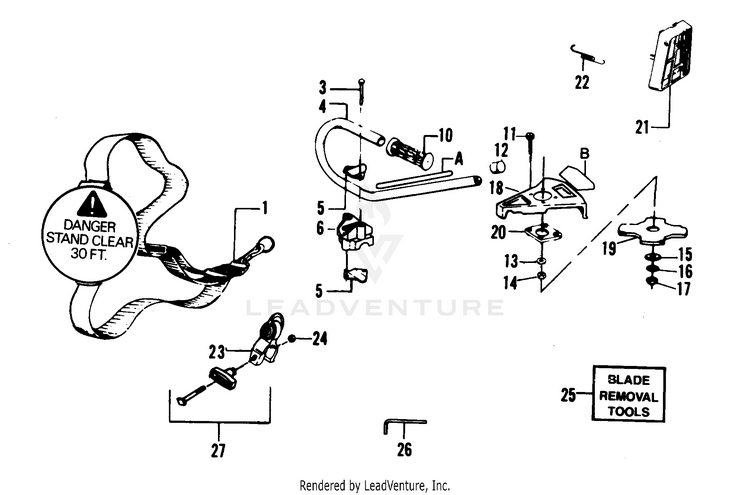

*Accessories

...
...
1
Shoulder Strap (inc. Key Ring) PLN-530094417
...
3
Bolt-1/4-20x2" Hex PLN-530015791
...
4
Barrier Handlebar PLN-530093169
...
5
Handlebar Bracket PLN-530094572
...
6
Handlebar Clamp PLN-530012207
...
10
Grip-Handlebar PLN-530092086
...
11
Screw-#1/4"-20x1" Hex PLN-530625509
...
12
End Cap Handlebar PLN-530092192
...
13
Washer-1/4" Flat PLN-530001503
...
14
Nut-Deflector to Brg. Hsh. (#1/4-20) PLN-530001615
...
15
Washer-Flat PLN-530093751
...
16
Washer--Belleville PLN-530016240
...
17
Flange Nut PLN-530093748
...
18
Shield-Aluminum PLN-530094576
...
19
Blade-4 Tooth Weed PLN-952701546
...
20
Shield Retention Plate PLN-530027615
...
21
Muffler Guard PLN-530024855
...
22
Muffler Guard Spring PLN-530024932
...
23
Clamp Harness Ass'y. PLN-530094686
...
24
Nut PLN-530015197
...
25
Blade Removal Tools PLN-530031130
...
26
Hex Wrench (5/32) PLN-530031159
...
27
HANDLE KIT PLN-530069347
...
A
Decal-Handlebar Warning PLN-530026229
...
B
Decal-Blade Rotation Warning PLN-530027621

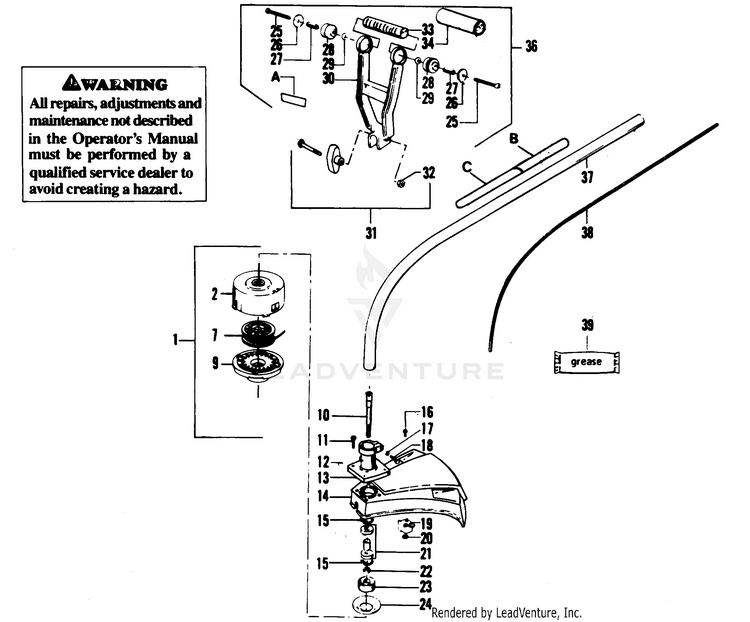

CUTTING HEAD & DRIVE SHAFT

...
...
1
Trimmer Head Ass'y. (Incl. #2, 7 & 9) PLN-952701605
...
2
Hub w/Line Saver PLN-530094592
...
7
Spool w/Line PLN-952701607
...
8
Tap Button PLN-530401183
...
9
Cover PLN-530094494
...
10
Arbor Shaft PLN-530093846
...
11
Screw PLN-530016107
...
12
Screw-#10-16 x 14"-Self Tapping PLN-530015518
...
13
Bearing Housing Ass'y. (Incl. #10, 15, 17, 18, 21, 22 & 23) PLN-530093214
...
14
Shield Assembly-18" (Incl. #16, 19 & 20) PLN-530094594
...
15
Retainer-Bearing PLN-530091783
...
16
Screw-#10-24 x 5/8"-Hex Hd. Line Limiter PLN-530015037
...
17
Washer-1/4" Int. Tooth Lock PLN-530092227
...
18
Screw-Pinch Clamp-#14-20 x 1" PLN-530625509
...
19
Line Limiter Assembly PLN-530094570
...
20
Nut PLN-530403094
...
21
Bearings & Spacer Kit PLN-530069086
...
22
Washer-3/8"-Dust Cup PLN-530092216
...
23
Dust Cup PLN-530092359
...
24
Grass Washer PLN-530092218
...
25
Screw-Pan Hd.-#12-11 x 2" PLN-530015561
...
26
Cup-Isolator PLN-530024376
...
27
Spacer Isolator PLN-530025985
...
28
Isolator-Handle PLN-530024373
...
29
Washer-1/4 Flat PLN-530015209
...
30
Handle-Anti-Vibe PLN-530093859
...
31
HANDLE KIT PLN-530069347
...
32
Nut PLN-530015197
...
33
Center Section-Handle PLN-530025986
...
34
Cushion-Handle Center Section PLN-530026009
...
35
Screw-1/4-20 x 1-5/8" PLN-530015737
...
36
Handle-Anti-vibe Assembly (Incl. #25-30, 33 & 34) PLN-530010642
...
37
Drive Shaft Housing PLN-530093726
...
38
Flexible Drive Shaft PLN-530092261
...
39
LUBE, FLEX SHAFT NLA PLN-952708514
...
A
Decal-Anti-Vibe PLN-530026248
...
B
Decal-Safety Label (Upper) PLN-530027429
...
C
Decal-Safety Label (Lower) PLN-530027404
...
xx
Operator's Manual Not Shown. PLN-530067068
...
xx
Carton (Not a serviceable part) Not Shown. PLN-530061008

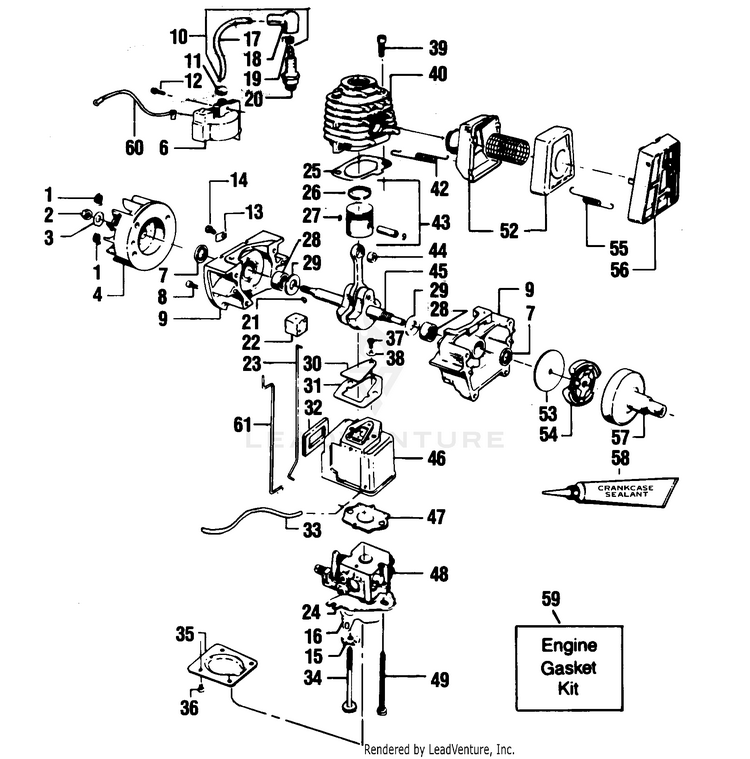

POWER UNIT

...
...
1
Spring-Starter Dog PLN-530023817
...
2
Flywheel-Nut PLN-530626605
...
3
Flywheel Washer PLN-530015127
...
4
Flywheel Assembly (Incl. #1) PLN-530039114
...
6
Ignition Module Kit PLN-530069181
...
7
Crankcase Seal PLN-530019059
...
8
Screw-Crankcase PLN-530015369
...
9
Crankcase Assembly (Incl. #7, 28 & Qty. 4 of #8) PLN-530010757
...
10
High Tension-Load Assembly Incl. #17, 18 & 19 PLN-530039103
...
11
Grommet-Plug Wire PLN-530024435
...
12
Screw PLN-530015816
...
13
Choke Wire Clamp PLN-530024651
...
14
Screw PLN-530015004
...
15
Washer PLN-530015254
...
16
Choke Shutter PLN-530024558
...
17
High Tension Lead Wire PLN-530039082
...
18
Spark Plug Boot PLN-530003934
...
19
Spark Plug Boot PLN-507475326
...
20
Spark Plug (CJ-14) PLN-530030077
...
21
Key-Flywheel PLN-530015126
...
22
Boot-Throttle Choke Wire PLN-530023373
...
23
Throttle Wire (Red) PLN-530024902
...
24
Guide Plate PLN-530026237
...
25
Engine Gasket Kit PLN-530069219
...
26
Ring-Piston PLN-530026681
...
27
Retainer-Wrist Pin PLN-530015162
...
28
Bearing-Crankcase PLN-530032029
...
29
Washer-Thrust-Crankcase PLN-530015351
...
30
Reed Valve PLN-530024438
...
31
Gasket-Carburetor Case to Crankcase PLN-530019108
...
32
Seal-Carburetor Case PLN-530019105
...
33
Line Kit PLN-530069238
...
34
Screw PLN-530015404
...
35
Cover-Carburetor Case PLN-530026029
...
36
Screw-#6-18x9/16"-Pan Hd.-Carburetor Case Cover PLN-530015235
...
37
Screw-#5-19x5/16"-Pan Hd. Reed Valve PLN-530015241
...
38
Washer-Reed Valve Screw PLN-530023367
...
39
Screw-#14-20x3/4" Hex Socket Hd. Cylinder PLN-530015239
...
40
Cylinder PLN-530012191
...
42
Muffler Spring PLN-530036409
...
43
Piston Kit (Incl. #26, 27 & Pin) PLN-530069241
...
44
Bearing-Wrist Pin PLN-530032092
...
45
Crankshaft & Rod Assembly (Incl. #44) PLN-530010844
...
46
Carburetor Housing PLN-530024409
...
47
Gasket-Carburetor PLN-530019157
...
48
Carburetor PLN-530035183
...
49
Screw-#10-24x1-7/8"-Fil. Hd. Carburetor PLN-530015379
...
52
Muffler Ass'y. PLN-530069243
...
53
Kit-Clutch Washer PLN-530069196
...
54
Kit-Clutch Assembly (Incl. Washer) PLN-530069194
...
55
Spring-Muffler Guard PLN-530024932
...
56
Guard-Muffler PLN-530024855
...
57
Coupling & Bearing Assembly PLN-530010797
...
58
Sealent-Crankcase (Not Supplied with Unit) PLN-530030054
...
59
Kit-Engine Gasket PLN-530069219
...
60
Lead Wire-Kill Switch PLN-530024158
...
61
Choke Wire PLN-530026236

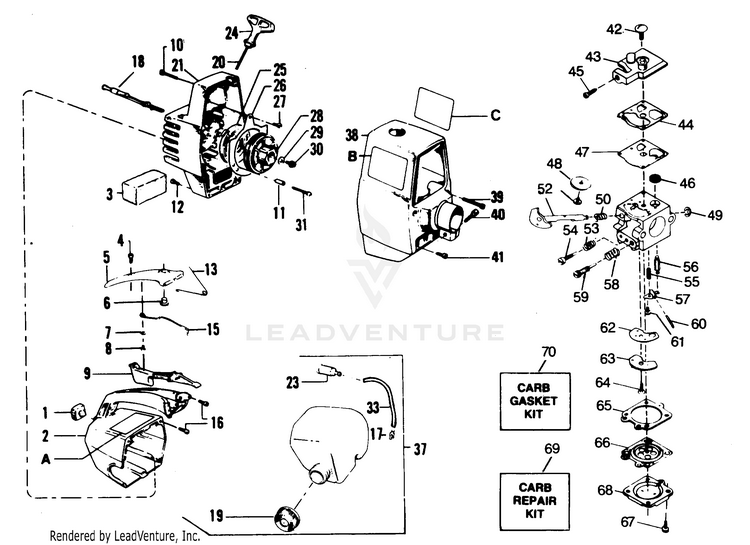

STARTER & SHROUD

...
...
1
Bumper-Fuel Tank Housing PLN-530024436
...
2
Handle & Fuel Tank Housing PLN-530024656
...
3
Air Filter PLN-530024371
...
4
Screw-#8-16x3/4"-Pan Hd. Handle Cover PLN-530015247
...
5
Handle Cover PLN-530024661
...
6
Kill Switch PLN-530026679
...
7
Washer PLN-530015412
...
8
Screw PLN-530015407
...
9
Throttle Trigger PLN-530024365
...
10
Screw-#10-24 x 1-1/2"-Sems-Fan Housing-Top PLN-530015583
...
11
Air Baffle Spacer PLN-530026122
...
12
Screw-#10-24x5/8"-Sems-Fan Housing-Bottom PLN-530015582
...
13
Spring-Trigger PLN-530024461
...
15
Kill Switch Spring PLN-530024407
...
16
Screw-Line Limiter PLN-530015814
...
17
Fuel Line Fitting PLN-530026981
...
18
Choke Knob PLN-530024303
...
19
Assy-Fuel Cap (Incl. O-Ring) PLN-530014347
...
20
Rope Kit PLN-530069232
...
21
Fan Housing Kit PLN-530069178
...
23
Assy-Fuel Pickup PLN-530095646
...
24
Handle-Starter PLN-530027569
...
25
KIT STARTER SPRING PLN-545008009
...
26
Air Baffle PLN-530026035
...
27
Screw-#10-14x3/8"-Pan Hd.-Air Baffle If your unit has been serviced with the metal fan housing, use P/N 15373-10-24xl/4-Fil.HD.instead of 13544, and P/N 15305 10-24xl-3/16 Fil. HD. instead of P/N 15563. PLN-530015544
...
28
Starter Pulley PLN-530026048
...
29
Washer-Starter Pulley PLN-530015123
...
30
Screw-#10x3/4" Hex Washer Hd.-Starter Pulley PLN-530015479
...
31
Screw-#10-14x1-3/16" Air Baffle/Pump If your unit has been serviced with the metal fan housing, use P/N 15373-10-24xl/4-Fil.HD.instead of 13544, and P/N 15305 10-24xl-3/16 Fil. HD. instead of P/N 15563. PLN-530015563
...
33
Line Kit PLN-530069247
...
37
Fuel Tank Assembly (Incl. #17, 19, 23 & 33) PLN-530010776
...
38
Shroud PLN-530011778
...
39
Screw-#10-24x1-1/3"-Fil Hd.-Shroud (Top) PLN-530015376
...
40
Pinch Clamp Bolt PLN-530093802
...
41
Screw-#10-24x5/8"-Fil Hd.-Shroud (Bottom) PLN-530015168
...
42
Screw-Pump Cover PLN-530035017
...
43
Pump Cover Ass'y. (Incl. #4) PLN-530035191
...
44
GASKET PLN-504130906
...
45
Screw-Idle Adjustment PLN-530035156
...
46
Screen Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
47
PUMP DIAPHRAGM PLN-504130807
...
48
Valve-Throttle PLN-530035133
...
49
Clip-Throttle Shaft PLN-530035007
...
50
Spring-Throttle Return PLN-530035138
...
51
Screw-Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
52
Shaft-Assembly Throttle PLN-530035132
...
53
Spring-Idle Needle PLN-530035023
...
54
Needle-Idle PLN-530035141
...
55
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
56
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
57
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
58
Spring-Hi Speed Needle PLN-530035036
...
59
H-NEEDLE PLN-501782201
...
60
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
61
Screw-Metering Lever Pin PLN-530035016
...
62
GASKET PLN-501781301
...
63
Plate-Circuit PLN-530035042
...
64
Screw-Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
65
Gasket-Metering Diaphragm PLN-530035151
...
66
DIAPHRAGM PLN-503896701
...
67
Screw Assembly-Metering Cover & Throttle Shaft Clip PLN-530035153
...
68
Cover-Metering Diaphragm PLN-530035149
...
69
Kit-Carb Kwik Repair PLN-530035185
...
70
Gasket Diaphragm Kit PLN-530069844
...
A
Decal-Starting Instructions (Not a serviceable part) PLN-530027633
...
B
Decal-Shroud (Right) PLN-530027648
...
C
Decal-Shroud (Left) PLN-530027649
...
...
...
