Weed Eater XR-70 Gas Trimmer

Model: XR-70 Gas Trimmer

Save Part Not Listed?
product name

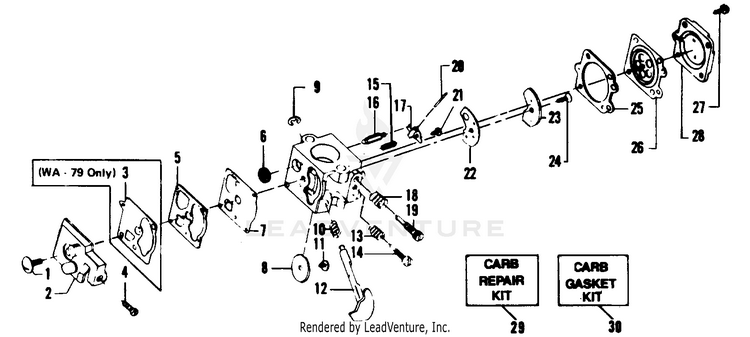

CARBURETORS WA-149, WA-79

...
...
1
Screw - Pump Cover PLN-530035017
...
2
WA - 79 PLN-530035154
...
2
WA - 149 (#35183) PLN-530035191
...
3
Diaphragm - Pump (WA - 79 Only) PLN-530035135
...
4
Screw - Idle Adjustment PLN-530035156
...
5
WA - 79 Included in Carburetor Kwik Repair Kit. PLN-530035009
...
5
GASKET Included in Carburetor Kwik Repair Kit. PLN-504130906
...
6
Screen Inlet PLN-530035178
...
7
WA - 79 PLN-530035152
...
7
PUMP DIAPHRAGM PLN-504130807
...
8
Valve - Throttle PLN-530035133
...
9
Clip - Throttle Shaft PLN-530035007
...
10
Spring - Throttle Return PLN-530035138
...
11
Screw - Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
12
Shaft Assembly - Throttle PLN-530035132
...
13
Spring - Idle Needle PLN-530035023
...
14
Needle - Idle PLN-530035141
...
15
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
16
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
17
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
18
Spring - Hi Speed Needle PLN-530035036
...
19
H-NEEDLE PLN-501782201
...
20
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
21
Screw - Metering Lever Pin PLN-530035016
...
22
GASKET PLN-501781301
...
23
Plate - Circuit PLN-530035042
...
24
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
25
Gasket - Metering Diaphragm PLN-530035151
...
26
DIAPHRAGM PLN-503896701
...
27
Screw Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
28
Cover - Metering Diaphragm PLN-530035149
...
29
WA - 79 PLN-530035144
...
29
WA - 149 (#35183) PLN-530035185
...
30
WA - 79 Included in Carburetor Kwik Repair Kit. PLN-530035145
...
30
Gasket Diaphragm Kit Included in Carburetor Kwik Repair Kit. PLN-530069844

DRIVE SHAFT & CUTTING HEAD

...
...
1
Cutting Head Ass'y. - Current Style (Incl. #3-10) PLN-530093894
...
3
Hub PLN-530071295
...
4
Line Saver PLN-530093898
...
5
Spring PLN-530340007
...
6
Cap Spring PLN-530328929
...
7
Drive Gear - New Style PLN-530093897
...
8
Spool w/Line PLN-952701523
...
9
Tap Button PLN-530401183
...
10
Cover PLN-530092133
...
11
Bolt - Drive Adaptor - Previous Style PLN-530092064
...
12
Hub w/Line Saver - Previous Style See Service Reference 6. PLN-530092131
...
13
Drive Gear - Previous Style PLN-530092069
...
14
Shaft - Arbor - Type 1 Only PLN-530093846
...
16
Screw - 5/16 - Self Tapping PLN-530015518
...
17
Bearing Housing Ass'y - (Inc. #14,19, 21,22,25-27) Type 1 See Ser. Ref. 11 PLN-530093214
...
19
Retainer - Bearing PLN-530091783
...
21
Washer - 1/4 Int. Tooth Lock - Type 1 Only PLN-530092227
...
22
Screw - Pinch Clamp - Type 1 Only PLN-530625509
...
25
Bearings & Spacer Kit - Type 1 Only PLN-530069086
...
26
Washer - 3/8 - Dust Cup - Type 1 Only PLN-530092216
...
27
Type 1 PLN-530092359
...
27
Type 2, 3 & 4 PLN-530093716
...
28
WASHER PLN-530092218
...
xx
SCREW PLN-920092218
...
29
Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3 PLN-530069496
...
29
Model XR-70 PLN-530092063
...
30
Knob - 1/4 20 - Model XR-70 PLN-530092059
...
31
Washer - 1/4 Flat PLN-530092062
...
32
Hex Bolt - 1/4 - 20x1 - 1/2 PLN-530015737
...
33
Drive Shaft Hsg., Previous Style (Incl. #40) Model XR-50 PLN-530093727
...
33
Drive Shaft Hsg., Previous Style (Incl. #40) Model XR-70 PLN-530093728
...
33
Drive Shaft Hsg., Previous Style (Incl. #40) Model XR-50 - Type 1 PLN-530093858
...
33
Drive Shaft Hsg., Previous Style (Incl. #40) Model XR-50 - Type 2 PLN-530093940
...
33
DRIVESHAFT KIT 34" PLN-530071643
...
33
Drive Shaft Hsg., Previous Style (Incl. #40) Model XR-70 - Type 1 PLN-530093726
...
34
Model XR-50 - Type 1 PLN-530092054
...
34
Model XR-50 - Type 2, 3 & 4 PLN-530093936
...
34
Model XR-70 PLN-530092261
...
40
Collar Nut Collar Nut Style (Incl. #40) PLN-530024406
...
41
LUBE, FLEX SHAFT NLA PLN-952708514
...
B
Shaft Warning Decal PLN-530029159
...
0
Tap-N-Go Repair Kit - Old Style Cutting Head (Incl. #5, 6, 8-13) Not Shown. PLN-952701569
...
0
Operator's Manual Model XR-70 Not Shown. PLN-530064962
...
0
Operator's Manual Model XR-50 Not Shown. PLN-530066904

POWER UNIT

...
...
1
Check Valve - Duck Bill PLN-530026119
...
2
Fuel Tank Assembly (Incl. #1, 3, 14 & 15) PLN-530010776
...
3
Assy-Fuel Cap PLN-530014347
...
4
Clamp - Choke Wire PLN-530024651
...
5
Screw - 8 - 32x5/16 - Pan Hd. - Choke Rod Clamp PLN-530015004
...
6
Seal - Crankcase PLN-530019059
...
7
Screw - Crankcase PLN-530015369
...
8
Crankcase Assembly (Incl. #4, 9 & Qty. 1 of #7) PLN-530010757
...
9
Bearing - Crankcase PLN-530032029
...
10
Washer - Thrust - Crankcase PLN-530015351
...
11
Kit - Engine Gasket PLN-530069219
...
14
Fuel Line - Type 1, 2 & 3 PLN-530021042
...
14
Line Kit - Type 4 PLN-530069247
...
15
Type 1, 2 & 3 PLN-530091878
...
15
Assy-Fuel Pickup PLN-530095646
...
16
Gasket - Carburetor Case Cover - ModelS XR-50,XR-70 Type 1 PLN-530019112
...
17
Screw - 8 - 18x9/16" - Pan Hd. - Carb. Case Cover PLN-530015235
...
18
Model XR-50 Type 2, 3 & 4 PLN-530026029
...
19
Boot - Throttle - Choke Wire PLN-530023373
...
20
Model XR-50 Type 2, 3 & 4 PLN-530026236
...
21
Engine Gasket Kit PLN-530069219
...
22
Type 1, 2 & 3 PLN-530024302
...
22
Type 4 PLN-530027369
...
23
Retainer - Wrist Pin PLN-530015162
...
24
Key - Flywheel PLN-530015126
...
25
Throttle Wire PLN-530024902
...
26
Seal - Carburetor Case PLN-530019105
...
27
Type 1, 2 & 3 PLN-530025472
...
27
Type 4 PLN-530026981
...
28
Model XR-50 Type 2, 3 & 4 PLN-530026237
...
29
Choke Shutter PLN-530024558
...
30
Washer - Wave PLN-530015254
...
31
Screw - 10 - 24x2-1/8" - Fil. Hd. - Carb. Shoulder PLN-530015404
...
32
Screw - 6 - 19x5/16" -Pan Hd. - I. - Reed Valve PLN-530015241
...
33
Washer - Reed Valve Screw PLN-530023367
...
34
Reed Valve PLN-530024438
...
35
Gasket - Carburetor to Crankcase PLN-530019108
...
36
Carburetor Housing PLN-530024409
...
37
Gasket - Carburetor PLN-530019115
...
38
Line Kit PLN-530069238
...
39
Carburetor - (See Ser. Ref. 2, for Models XR-50,XR-70 Type 1 only) PLN-530035183
...
40
Screw - 10 - 24x1-7/8" - Fil. Hd. - Carburetor PLN-530015379
...
41
Screw - 1/4 - 20x3/4" - Hex Socket Hd. Cylinder PLN-530015239
...
42
Cylinder PLN-530012070
...
44
Muffler Spring PLN-530036409
...
45
Type 1, 2 & 3 PLN-530022198
...
45
Type 4 PLN-530069240
...
46
Type 1, 2 & 3 PLN-530032057
...
46
Type 4 PLN-530032092
...
47
Type 1 & 2 PLN-530026675
...
47
Type 3 PLN-530010858
...
47
Type 4 PLN-530010844
...
51
Spring - Muffler Guard PLN-530024932
...
52
Guard - Muffler PLN-530024855
...
53
Sealant - Crankcase (Not Supplied with Unit) PLN-530030054

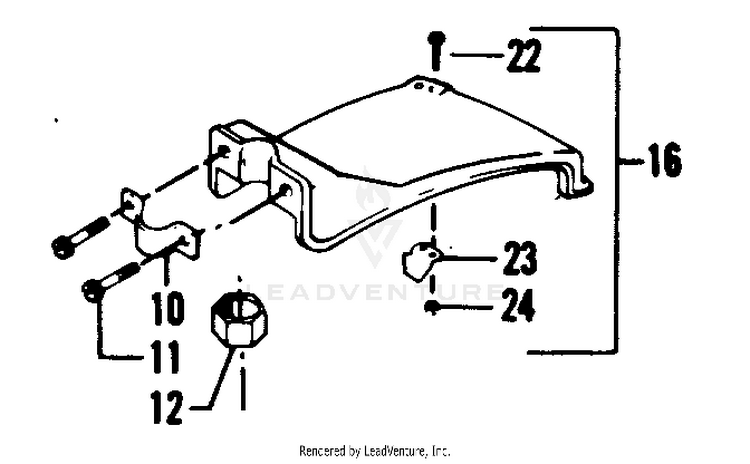

SHIELD ASSEMBLY & LINE LIMITERS - CURRENT STYLES

...
...
10
Shield Bracket PLN-530093653
...
11
Screw PLN-530016107
...
12
Dust Cup PLN-530093716
...
16
Shield Ass'y. PLN-530069213
...
22
Screw PLN-530015337
...
23
Line Limiter PLN-530093853
...
24
Nut PLN-530015064
...
10
Shield Bracket PLN-530093653
...
11
Screw PLN-530625567
...
14
Lockwasher PLN-530001642
...
15
Nut PLN-530001615
...
16
Shield Ass'y. PLN-530069213

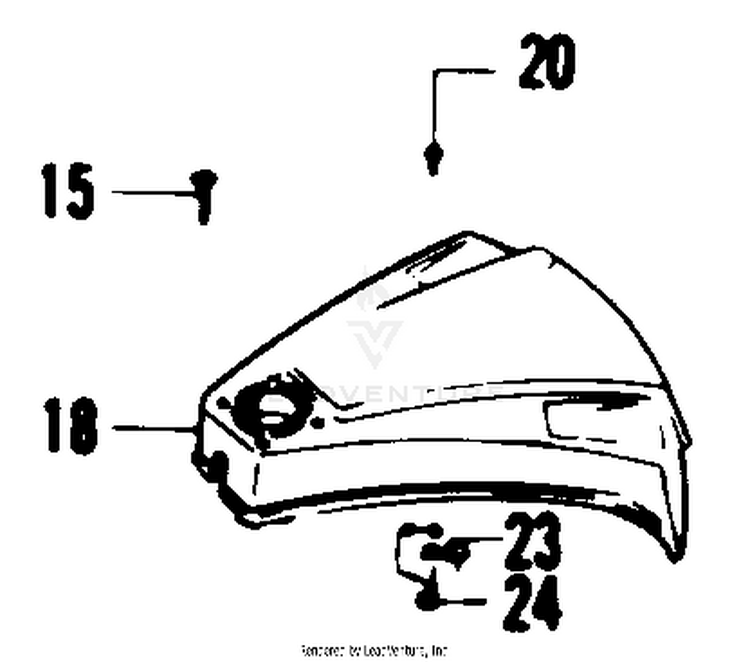

SHIELD ASSEMBLY & LINE LIMITERS - PREVIOUS STYLES

...
...
15
Screw PLN-530016107
...
18
14" - Model XR-50 PLN-530092362
...
18
17" - Model XR-50,XR-70 PLN-530093885
...
18
18" - Model XR-70 PLN-530093886
...
20
Screw PLN-530015037
...
24
Nut PLN-530015064
...
35
Wing Nut PLN-530092049
...
36
Hex Nut PLN-530092051
...
37
14" & 17" PLN-530091981
...
38
Line Limiter PLN-530092046
...
39
Screw PLN-530092045

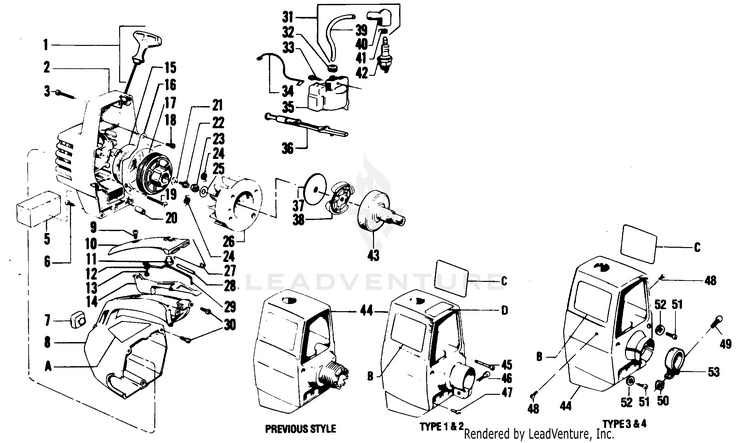

STARTER & SHROUD

...
...
2
Fan Housing (Incl. #16, 18, 19, 20 & 28) See Service Ref. 8 PLN-530069178
...
5
Air Filter PLN-530024371
...
7
Bumper - Fuel Tank Housing PLN-530024436
...
8
Handle and Fuel Tank Housing PLN-530024656
...
9
Screw - 8 - 16x3/4" - Pan Hd. - Handle Cover PLN-530015247
...
10
Handle Cover PLN-530024661
...
11
Button - Kill Switch PLN-530026679
...
12
Washer - Kill Switch PLN-530015412
...
13
Screw - 8 - 16x3/8"-Pan Head - PLN-530015407
...
14
Trigger - Throttle PLN-530024365
...
15
KIT STARTER SPRING PLN-545008009
...
16
Air Baffle PLN-530026035
...
17
Starter Pulley (Incl. #21), Model XR-50 Type 2, 3 & 4 PLN-530026048
...
20
Spacer PLN-530026122
...
21
Washer - Starter Pulley PLN-530015123
...
23
Nut - Flywheel - 5/16x24" - Fil. Hd. PLN-530626605
...
24
Spring-Starter Dog PLN-530023817
...
25
Washer - Flywheel PLN-530015127
...
26
Flywheel Assembly (Incl. #24) PLN-530039114
...
27
Trigger Spring PLN-530024461
...
28
Insulation - Switch Spring PLN-530021036
...
29
Spring - Kill Switch PLN-530024407
...
30
Screw-Line Limiter PLN-530015814
...
31
High Tension - Lead Assembly (Incl. #17, 18 & 19) PLN-502039103
...
xx
HIGH TENSION LEAD NLA PLN-530039103
...
32
Grommet - Plug Wire PLN-530024435
...
33
Screw PLN-530015816
...
34
Lead Wire - Switch PLN-530024158
...
35
Kit - Ignition Module PLN-530069181
...
36
Knob - Choke PLN-530024303
...
37
Kit - Clutch - Washer PLN-530069196
...
38
Kit - Clutch Ass'y (Inc. Clutch Washer) See Ser. Ref.7, (For XR-50,XR-70 Type 1 Ref #1) PLN-530069194
...
39
High Tension Lead Wire PLN-530039082
...
40
Boot - Spark Plug PLN-530003934
...
41
Spark Plug Boot PLN-507475326
...
42
Spark Plug - CJ-14 PLN-530030077
...
43
Coupling and Bearing Assembly PLN-530010797
...
44
Previous Style PLN-530011641
...
44
Type 1 & 2 PLN-530011778
...
44
Type 3 & 4 PLN-530026547
...
45
Screw - Shroud (Top) - Type 1 & 2 PLN-530015376
...
46
Bolt - Pinch Clamp - Type 1 & 2 PLN-530093802
...
47
Screw - Shroud (Bottom) - Type 1 & 2 PLN-530015168
...
48
Screw - Type 3 & 4 PLN-530015590
...
49
Bolt - Type 3 & 4 PLN-530015609
...
50
Nut - Type 3 & 4 PLN-530015610
...
51
Screw - Type 3 & 4 PLN-530015163
...
52
Washer - Type 3 & 4 PLN-530015274
...
53
Clamp - Shroud - Type 3 & 4 PLN-530026560
...
A
Models XR-50,XR-70 - Type 1 PLN-530026442
...
A
Model XR-50 Type 2 PLN-530026636
...
A
Model XR-50 Type 3 PLN-530027345
...
A
Model XR-50 Type 4 PLN-530027452
...
B
Model XR-50 PLN-530024583
...
B
Model XR-70 PLN-530024585
...
C
Model XR-50 PLN-530024584
...
C
Model XR-70 PLN-530024586
...
D
Decal - Shroud (Top) - Model XR-7Q PLN-530024592
