Weed Eater XR-50A Gas Trimmer

Model: XR-50A Gas Trimmer

Save Part Not Listed?
product name

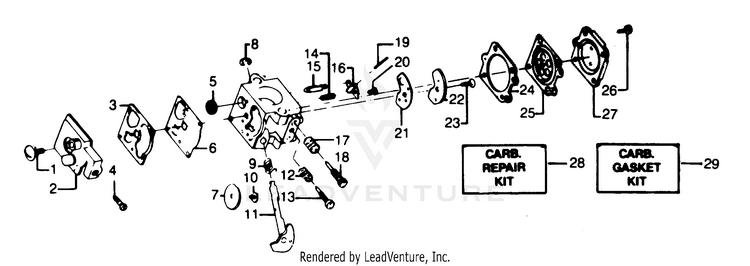

CARBURETOR ASSEMBLY

...
...
1
Screw - Pump Cover PLN-530035017
...
2
Pump Cover Ass'y (Inc.4) PLN-530035191
...
3
GASKET PLN-504130906
...
4
Screw - Idle Adjustment PLN-530035156
...
5
Screen - Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Valve - Throttle PLN-530035133
...
8
Clip - Throttle Shaft PLN-530035007
...
9
Spring - Throttle Return PLN-530035138
...
10
Screw - Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
11
Shaft Assembly - Throttle PLN-530035132
...
12
Spring - Idle Needle PLN-530035023
...
13
Needle - Idle PLN-530035141
...
14
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
15
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
16
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
17
Spring - Hi Speed Needle PLN-530035036
...
18
H-NEEDLE PLN-501782201
...
19
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
20
Screw - Metering Lever Pin PLN-530035016
...
21
GASKET PLN-501781301
...
22
Plate - Circuit PLN-530035042
...
23
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
24
Gasket - Metering Diaphragm PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Screw Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
27
Cover - Metering Diaphragm PLN-530035149
...
28
Kit - Carb. Kwik Repair Kit PLN-530035185
...
29
Gasket Diaphragm Kit PLN-530069844

CUTTING HEAD & DRIVE SHAFT

...
...
1
Cutting Head Assembly PLN-952701605
...
3
Hub-Ass'y. PLN-530094592
...
5
Spool w/Line PLN-952701607
...
7
Cover PLN-530094494
...
10
Bracket-Shield PLN-530093653
...
11
Screw PLN-530016107
...
12
Dust Cup PLN-530093716
...
16
Shield Kit Assembly (Inc.11,22,23,24) PLN-530069249
...
17
Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3 PLN-530069496
...
18
HANDLE KIT PLN-530069347
...
19
Washer-1/4-Flat PLN-530092062
...
20
DRIVESHAFT KIT 34" PLN-530071643
...
21
Flex Shaft Assembly PLN-530093936
...
22
Screw-Line Limiter PLN-530015337
...
23
Line Limiter PLN-530094570
...
24
Nut PLN-530403094
...
25
Nut PLN-530015197
...
26
LUBE, FLEX SHAFT NLA PLN-952708514
...
A
Shaft Warning Decal PLN-530029159
...
xx
Operator's Manual Not Shown. PLN-530067067

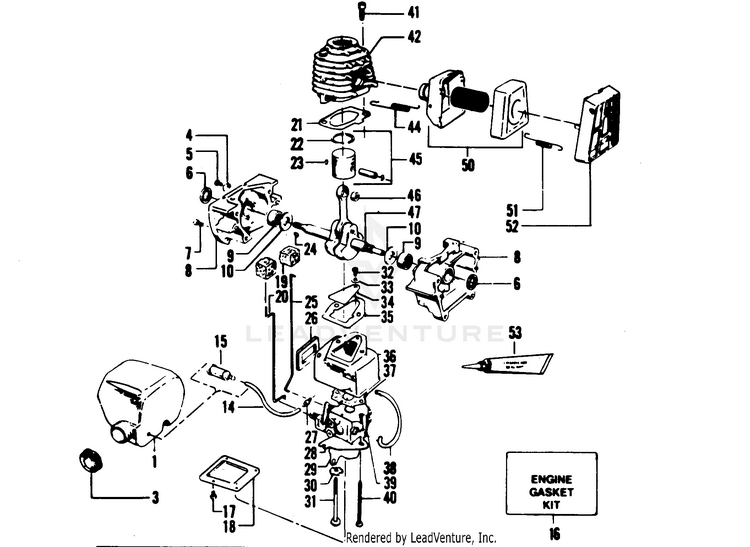

POWER UNIT

...
...
1
Fuel Tank Ass'y. (Inc.3, 14, 15 & 27) PLN-530010776
...
3
Assy-Fuel Cap PLN-530014347
...
4
Clamp-Choke Wire PLN-530024651
...
5
Screw-8-32x5/16-Pan Hd. Choke Rod Clamp PLN-530015004
...
6
Seal-Crankcase Included in Engine Gasket Kit. PLN-530019059
...
7
Screw-Crankcase PLN-530015369
...
8
Crankcase Assembly (Inc.6, 9 & Qty. 4 of #7) PLN-530010757
...
9
Bearing-Crankcase Included in Engine Gasket Kit. PLN-530032029
...
10
Washer-Thrust-Crankcase PLN-530015351
...
14
Line Kit PLN-530069247
...
15
Assy-Fuel Pickup PLN-530095646
...
16
Kit-Engine Gasket PLN-530069219
...
17
Screw-8-18x9/16"-Pan Hd.-Carburetor Case Cover PLN-530015235
...
18
Cover-Carburetor Case PLN-530026029
...
19
Boot-Throttle-Choke Wire Included in Engine Gasket Kit. PLN-530023373
...
20
Choke Wire PLN-530026236
...
21
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219
...
22
Ring-Piston PLN-530027369
...
23
Retainer-Wrist Pin PLN-530015162
...
24
Key-Flywheel PLN-530015126
...
25
Throttle Wire PLN-530024902
...
26
Seal-Carburetor Case Included in Engine Gasket Kit. PLN-530019105
...
27
Fuel Line Fitting PLN-530026981
...
28
Choke Wire Guide Plate PLN-530026237
...
29
Choke Shutter PLN-530024558
...
30
Washer-Wave PLN-530015254
...
31
Screw-10-24x2-1/8"-Fil. Hd.-Carburetor Shoulder PLN-530015404
...
32
Screw-6-19-5/16"-Pan Hd.-Reed Valve PLN-530015241
...
33
Washer-Reed Valve Screw PLN-530023367
...
34
Reed Valve PLN-530024438
...
35
Gasket-Carburetor Case to Crankcase Included in Engine Gasket Kit. PLN-530019108
...
36
Carburetor Housing PLN-530024409
...
37
Gasket-Carburetor Included in Engine Gasket Kit. PLN-530019157
...
38
Line Kit PLN-530069238
...
39
Carburetor PLN-530035183
...
40
Screw-10-24x1-7/8"-Fil. Hd.-Carburetor PLN-530015379
...
41
Screw-1/4-20x3/4"-Hex Shocket Hd.-Cylinder PLN-530015239
...
42
Cylinder PLN-530012190
...
44
Muffler Spring PLN-530036409
...
45
Piston Kit (Incl.#22, 23 & Pin) PLN-530069240
...
46
Bearing-Wrist Pin PLN-530032092
...
47
Crankshaft & Rod Assembly (Inc.46) PLN-530010844
...
50
Muffler Ass'y. PLN-530069243
...
51
Spring-Muffler Guard PLN-530024932
...
52
Guard-Muffler PLN-530024855
...
53
Sealant-Crankcase (Not Supplied with Unit) PLN-530030054

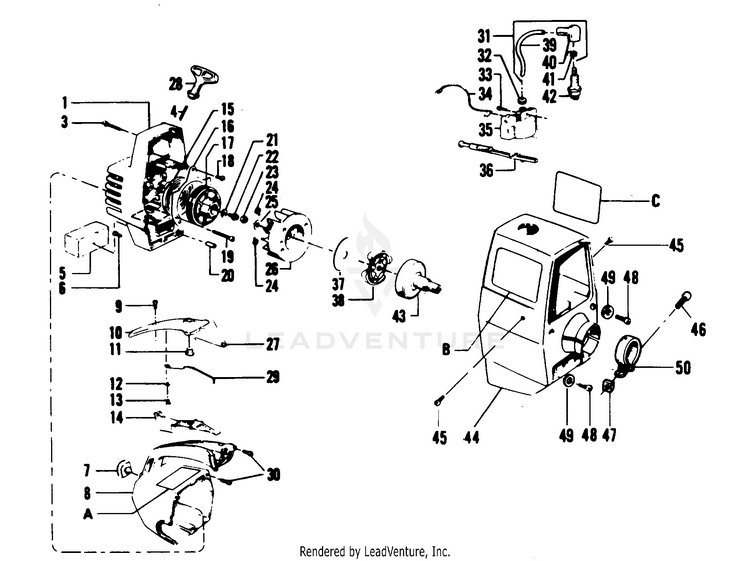

STARTER & SHROUD

...
...
1
Fan Housing Kit PLN-530069178
...
3
Screw-10-16 x 1-5/8"-Plastite Fan Housing-Top PLN-530015706
...
4
Rope Kit PLN-530069231
...
5
Air Filter PLN-530024371
...
6
Screw-10-24x5/8"-Sems-Fan Housing-Bottom PLN-530015582
...
7
Bumper-Fuel Tank Housing PLN-530024436
...
8
Handle & Fuel Tank Housing PLN-530024656
...
9
Screw-8-16x3/4" - Pan Hd.-Handle Cover PLN-530015247
...
10
Handle Cover PLN-530024661
...
11
Kill Switch Button PLN-530026679
...
12
Washer PLN-530015412
...
13
Screw-8-16x3/8-Pan Hd.-Kill Switch PLN-530015407
...
14
Throttle Trigger PLN-530024365
...
15
KIT STARTER SPRING PLN-545008009
...
16
Air Baffle PLN-530026035
...
17
Starter Pulley PLN-530026048
...
18
Screw #10-24x3/8"-Pan Hd.-Air Baffle If your unit has been serviced with the metal fan housing, use P/N 15373-10-24xl/4-Fil.HD. instead of 13544, and P/N 15305 10-24xl-3/16 Fil. HD. instead of P/N 15563. PLN-530015544
...
19
Screw-#10-24x1-3/16"-Plastite If your unit has been serviced with the metal fan housing, use P/N 15373-10-24xl/4-Fil.HD. instead of 13544, and P/N 15305 10-24xl-3/16 Fil. HD. instead of P/N 15563. PLN-530015563
...
20
Spacer-Air Baffle PLN-530026122
...
21
Washer-Starter Pulley PLN-530015123
...
22
Screw-#10-24x3/4"-Hex Washer Hd.-Starter Pulley PLN-530015479
...
23
Nut-Flywheel PLN-530626605
...
24
Spring-Starter Dog PLN-530023817
...
25
Washer-Flywheel PLN-530015127
...
26
Flywheel Assembly (Inc.24) PLN-530039114
...
27
Trigger Spring PLN-530024461
...
28
Handle-Starter PLN-530027569
...
29
Kill Switch Spring PLN-530024407
...
30
Screw-Line Limiter PLN-530015814
...
31
High Tension Lead Ass'y (Inc.39, 40, & 41) PLN-502039103
...
32
Grommet-Plug Wire PLN-530024435
...
33
Screw PLN-530015816
...
34
Lead Wire-Switch PLN-530024158
...
35
Module Kit PLN-530069181
...
36
Choke Knob PLN-530024303
...
37
Clutch Washer Kit PLN-530069196
...
38
Clutch Ass'y Kit (Incl. Clutch Washer) PLN-530069194
...
39
High Tension Lead Wire PLN-530039082
...
40
Spark Plug Boot PLN-530003934
...
41
Spark Plug Boot PLN-507475326
...
42
Spark plug PLN-530030077
...
43
Coupling and Bearing Assembly PLN-530010797
...
44
Shroud PLN-530026547
...
45
Screw PLN-530015590
...
46
Bolt PLN-530015609
...
47
Nut PLN-530015610
...
48
Screw PLN-530015163
...
49
Washer PLN-530015274
...
50
Shroud Clamp PLN-530026560
...
A
Decal-Starting Instructions PLN-530027633
...
B
Decal-Shroud (Right) PLN-530027645
...
C
Decal-Shroud (Left) PLN-530027646
