Weed Eater XR-30 Gas Trimmer

Model: XR-30 Gas Trimmer

Save Part Not Listed?
product name

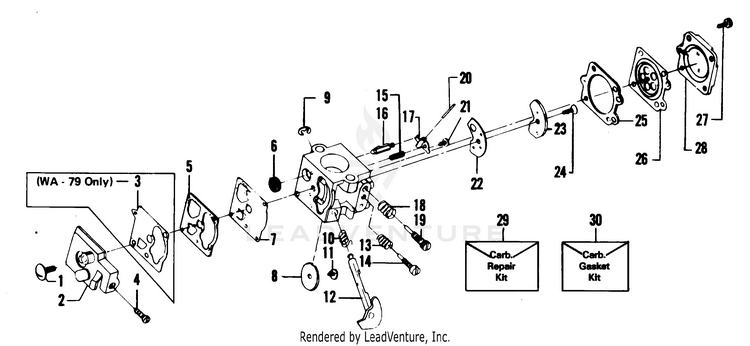

CARBURETORS WA-149 & WA-79 BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017
...
2
WA - 79 PLN-530035154
...
2
WA - 149 (#35183) PLN-530035191
...
3
Diaphragm - Pump WA - 79 Only PLN-530035135
...
4
Screw - Idle Adjustment PLN-530035156
...
5
WA - 79 PLN-530035009
...
5
GASKET PLN-504130906
...
6
Screen - Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
7
WA - 79 PLN-530035152
...
7
PUMP DIAPHRAGM PLN-504130807
...
8
Valve - Throttle PLN-530035133
...
9
Clip - Throttle Shaft PLN-530035007
...
10
Spring - Throttle Return PLN-530035138
...
11
Screw - Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
12
Shaft Assembly - Throttle PLN-530035132
...
13
Spring - Idle Needle PLN-530035023
...
14
Needle - Idle PLN-530035141
...
15
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
16
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
17
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
18
Spring - Hi Speed Needle PLN-530035036
...
19
H-NEEDLE PLN-501782201
...
20
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
21
Screw - Metering Lever Pin PLN-530035016
...
22
GASKET PLN-501781301
...
23
Plate - Circuit PLN-530035042
...
24
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
25
Gasket - Metering Diaphragm PLN-530035151
...
26
DIAPHRAGM PLN-503896701
...
27
Screw - Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
28
Cover - Metering Diaphragm PLN-530035149
...
29
WA - 79 PLN-530035144
...
29
WA - 149 (35183) PLN-530035185
...
30
WA - 79 PLN-530035145
...
30
Gasket Diaphragm Kit PLN-530069844

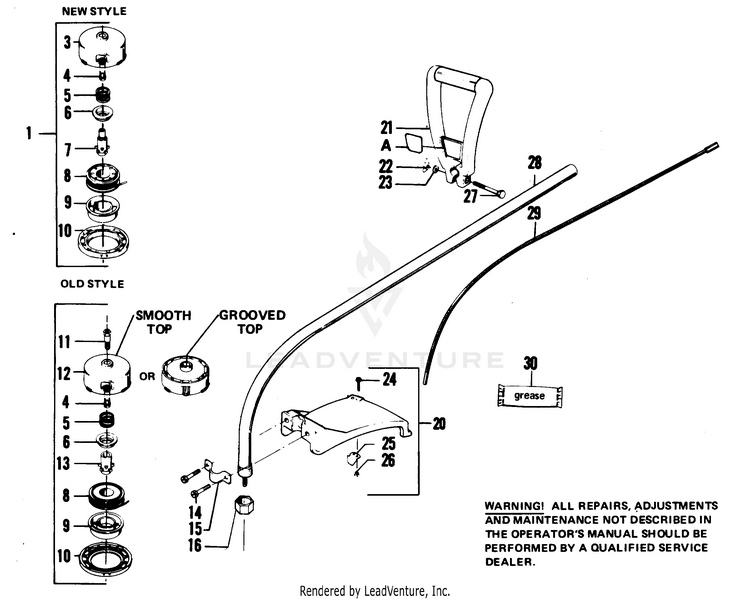

CUTTING HEAD & DRIVE SHAFT

...
...
1
Cutting Head Ass'y - New Style (Inc.3-10) PLN-530093894
...
3
Hub PLN-530071295
...
4
Line Saver PLN-530093898
...
5
Spring PLN-530340007
...
6
Cap Spring PLN-530328929
...
7
Drive Gear - New Style PLN-530093897
...
8
Spool w/Line PLN-952701523
...
9
Tap Button PLN-530401183
...
10
Cover PLN-530092133
...
11
Bolt - Drive Adaptor - Old Style PLN-530092064
...
12
Hub w/Line Saver - Old Style - See Service Ref. 4 PLN-530092131
...
13
Drive Gear - Old Style PLN-530092069
...
15
Bracket - Shield PLN-530093653
...
16
Dust Cup PLN-530093716
...
21
Assist Handle PLN-530010722
...
22
Wing Nut - #1/4 - 20 PLN-530091373
...
23
Washer - #1/4 Flat PLN-530092062
...
24
Screw - Line Limiter (#10 - 24 x 1") PLN-530015337
...
25
Limiter - Line PLN-530093853
...
26
Nut - Line Limiter PLN-530015064
...
27
Hex Bolt - #1/4 - 20 x 2-1/4" PLN-530092061
...
28
Drive Shaft Ass'y (Inc.16) PLN-530093757
...
29
Fl??ble Shaft Ass'y PLN-530093575
...
30
LUBE, FLEX SHAFT NLA PLN-952708514
...
A
Decal - "D" Handle Warning PLN-530026225
...
xx
Tap-N-Go Repair Kit for Old Style-(Inc.5,6,9, PLN-952701569
...
xx
Operator's Manual Not Shown. PLN-530066249

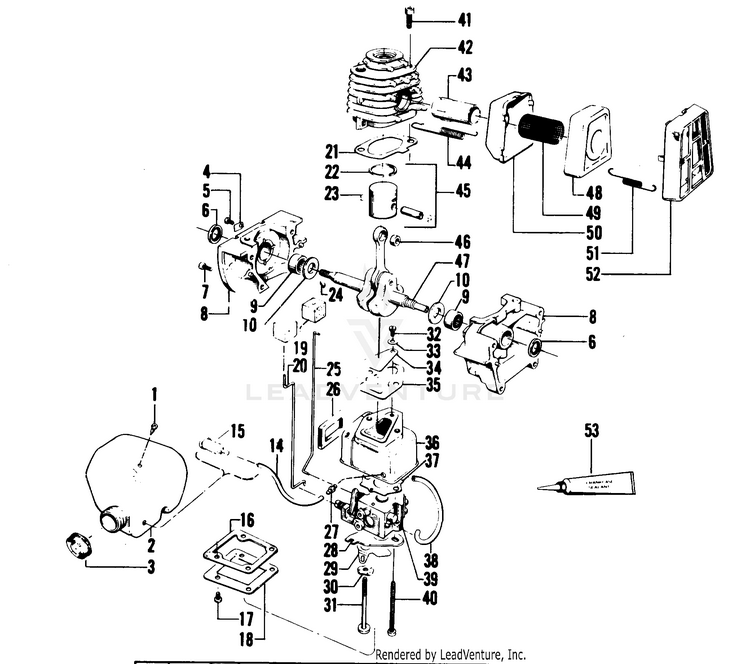

POWER UNIT

...
...
1
Check Valve - Duck Bill PLN-530026119
...
2
Fuel Tank Ass'y (Inc.1, 3, 14 & 15) PLN-530010776
...
3
Assy-Fuel Cap PLN-530014347
...
4
Clamp - Choke Wire PLN-530024651
...
5
Screw - Choke Rod Clamp (Pan Head - 8 - 32 x 5/16) PLN-530015004
...
6
Seal - Crankcase PLN-530019059
...
7
Screw - Crankcase (Fil. Hd. - 10 - 24 x 5/8) PLN-530015168
...
8
Crankcase Assembly (Inc.6, 7, 9 & Qty. 4 of 7) PLN-530010316
...
9
Crankshaft Bearing PLN-530032029
...
10
Washer - Thrust - Crankcase PLN-530015351
...
14
Fuel Line PLN-530021042
...
15
Fuel Pick-up Ass'y PLN-530091878
...
16
Gasket - Carburetor Case Cover PLN-530019112
...
17
Screw - Carb. Case Cover (Pan Head - 8 - 18 x 9/16) PLN-530015235
...
19
Boot - Throttle - Choke Wire PLN-530023373
...
21
Engine Gasket Kit PLN-530069219
...
22
Ring - Piston PLN-530024302
...
23
Retainer - Wrist Pin PLN-530015162
...
24
Key - Flywheel PLN-530015126
...
25
Throttle Wire PLN-530024902
...
26
Seal - Carburetor Case PLN-530019105
...
27
Fuel Line Fitting PLN-530025472
...
29
Choke Shutter PLN-530024558
...
30
Washer - Wave PLN-530015254
...
31
Screw - Carb. Shoulder (Fil. Head - 10 - 24 x 2-1/8) PLN-530015404
...
32
Screw - Reed Valve (Pan Head - 6 - 19 x 5/16) PLN-530015241
...
33
Washer - Reed Valve Screw (Flat No. 6) PLN-530023367
...
34
Reed Valve PLN-530024438
...
35
Gasket - Carb. Case to Crankcase PLN-530019108
...
36
Carburetor Housing PLN-530024409
...
37
Gasket - Carburetor PLN-530019115
...
38
Fuel Line Carburetor PLN-530021043
...
39
Carburetor - See Service Ref. 1. PLN-530035183
...
40
Screw - Carb. (Fil. Hd. - 10 - 24 x 1-7/8) PLN-530015379
...
41
Screw - Cylinder (Soc. Hd. - 1/4 - 20 x 3/4) PLN-530015239
...
42
Cylinder PLN-530012070
...
43
Diffuser - Muffler PLN-530024363
...
44
Muffler Spring PLN-530036409
...
45
Piston Assembly (Inc.22, 23 & Pin) PLN-530022198
...
46
Bearing - Wrist Pin PLN-530032057
...
47
Crankshaft & Rod. Ass'y PLN-530022202
...
48
Cover - Muffler PLN-530024361
...
49
Screen - Spark Arresting PLN-530024364
...
50
Body - Muffler PLN-530024362
...
51
Spring - Muffler Guard PLN-530024932
...
52
Guard - Muffler PLN-530024855
...
53
Sealant - Crankcase (Optional) PLN-530030054

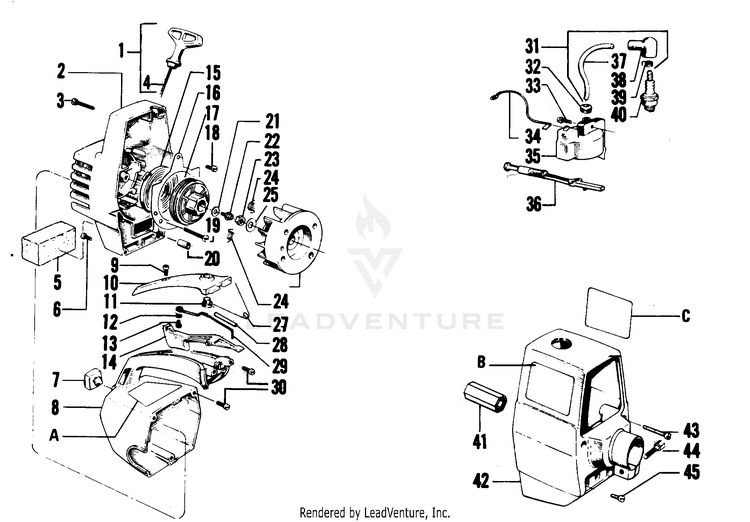

STARTER & SHROUD

...
...
2
Fan Hsg. Kit (Inc.16, 18, 19, 20, & 28) PLN-530069178
...
4
Rope (3.5 ft.) PLN-530022290
...
5
Air Filter PLN-530024371
...
7
Bumper - Fuel Tank Housing PLN-530024436
...
8
Handle & Fuel Tank Housing PLN-530024656
...
9
Screw - #8 - 16 x 3/4" - Pan Hd. - Handle Cover PLN-530015247
...
10
Handle Cover PLN-530024661
...
11
Button - Kill Switch PLN-530026679
...
12
Washer - Kill Switch PLN-530015412
...
13
Screw - #8 - 16 x 3/8" - Pan Hd. - Kill Switch PLN-530015407
...
14
Trigger - Throttle PLN-530024365
...
16
Air Baffle PLN-530026035
...
20
Spacer - Air Baffle PLN-530026122
...
21
Washer - Starter Pulley PLN-530015123
...
23
Nut - Flywheel - #5/16 x 24" PLN-530626605
...
24
Spring-Starter Dog PLN-530023817
...
25
Washer #10 -14 - Flywheel PLN-530015127
...
26
Flywheel Assembly (Inc.24) PLN-530039114
...
27
Trigger Spring PLN-530024461
...
28
Insulation - Switch Spring PLN-530021036
...
29
Spring - Kill Switch PLN-530024407
...
30
Screw-Line Limiter PLN-530015814
...
31
High Tension Lead Assembly (Inc.37,38,39) PLN-502039103
...
32
Grommet - Plug Wire PLN-530024435
...
33
Screw PLN-530015816
...
34
Lead Wire - Switch PLN-530024158
...
35
Kit - Ignition Module PLN-530069181
...
36
Knob - Choke PLN-530024303
...
37
High Tension Lead Wire PLN-530039082
...
38
Boot - Spark Plug PLN-530003934
...
39
Spark Plug Boot PLN-507475326
...
40
Spark Plug PLN-530030077
...
41
Coupling - Hex Drive PLN-530093694
...
42
Shroud PLN-530011778
...
43
Screw - #10 - 24 x 1-1/3" - Fil. Hd. - Shroud (Top) PLN-530015376
...
44
Bolt - Pinch Clamp PLN-530625509
...
45
Screw - #10 - 24 x 5/8" - Fil Hd. - Shroud (Bottom) PLN-530015168
...
A
Decal - Starting Instructions PLN-530026442
...
B
Decal - Shroud (Right) PLN-530025334
...
C
Decal - Shroud (Left) PLN-530025335
