Weed Eater XR-20T Gas Trimmer

Model: XR-20T Gas Trimmer

Back To Assemblies

Save Part Not Listed?
product name

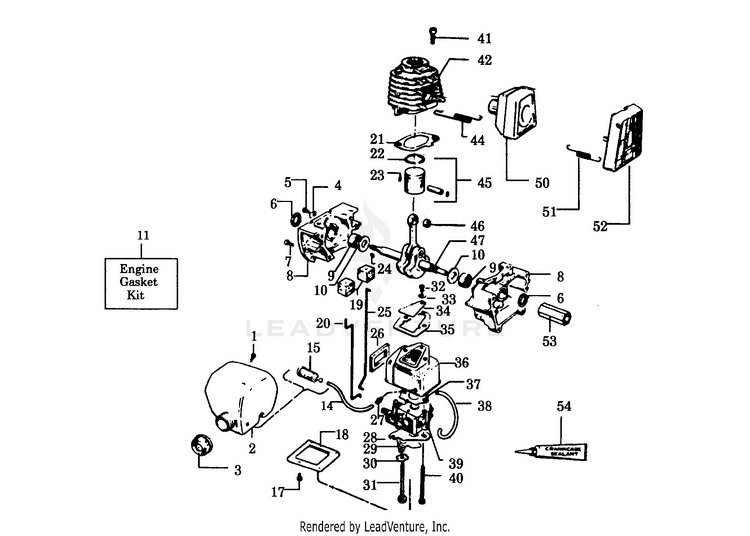

POWER UNIT

...
...
1
Check Valve Duck Bill PLN-530026119
...
2
Fuel Tank Ass'y. PLN-530010776
...
3
Assy-Fuel Cap PLN-530014347
...
4
Choke Wire Clamp PLN-530024651
...
5
Screw PLN-530015004
...
6
Crankcase Seal Included in Engine Gasket Kit. PLN-530019059
...
7
Screw PLN-530015369
...
8
Crankcase Ass'y. (Inc.6,7, & 9) PLN-530010757
...
9
Crankcase Bearing PLN-530032029
...
10
Washer PLN-530015351
...
11
Engine Gasket Kit PLN-530069219
...
14
Fuel Line-Model XR-20-Type 1 & 2 PLN-530069216
...
xx
Line Kit-Model XR-20-Type 3;Model XR-20T-T1 PLN-530069247
...
15
Model XR-20-T 1 & 2 PLN-530091878
...
15
Assy-Fuel Pickup PLN-530095646
...
17
Screw PLN-530015235
...
18
Carburetor Case Cover PLN-530026029
...
19
Choke Wire Throttle Boot PLN-530023373
...
20
Choke Wire Included in Engine Gasket Kit. PLN-530026236
...
21
Engine Gasket Kit PLN-530069219
...
22
Piston Ring Included in Engine Gasket Kit. PLN-530026413
...
23
Wrist Pin Retainer PLN-530015162
...
24
Flywheel Key PLN-530015126
...
25
Throttle Wire PLN-530024902
...
26
Carburetor Case Seal PLN-530019105
...
27
Model XR-20-T1 & 2 PLN-530025472
...
27
Model XR-20-T3; Model XR-20T-T1 PLN-530026981
...
28
Choke Wire Guide Plate PLN-530026237
...
29
Choke Shutter PLN-530024558
...
30
Wave Washer PLN-530015254
...
31
Screw PLN-530015404
...
32
Screw PLN-530015241
...
33
Washer PLN-530023367
...
34
Reed Valve PLN-530024438
...
35
Gasket Included in Engine Gasket Kit. PLN-530019108
...
36
Carburetor Housing PLN-530024409
...
37
Carburetor Gasket Included in Engine Gasket Kit. PLN-530019157
...
38
Line Kit PLN-530069238
...
39
Carburetor PLN-530035183
...
40
Screw PLN-530015379
...
41
Screw PLN-530015239
...
42
CYLINDER PLN-530012349
...
44
Muffler Spring PLN-530036409
...
45
Piston Kit (Inc.22,23,Pin) PLN-530010753
...
46
Wrist Pin Bearing PLN-530032057
...
47
Crankshaft & Rod Ass'y. PLN-530026418
...
50
Model XR-20T PLN-530069243
...
51
Muffler Guard Spring PLN-530024932
...
52
Muffler Guard PLN-530024855
...
53
Drive Adaptor PLN-530093925
...
54
Crankcase Sealant PLN-530030054
