Weed Eater XR-105 Gas Trimmer

Model: XR-105 Gas Trimmer

Back To Assemblies

Save Part Not Listed?
product name

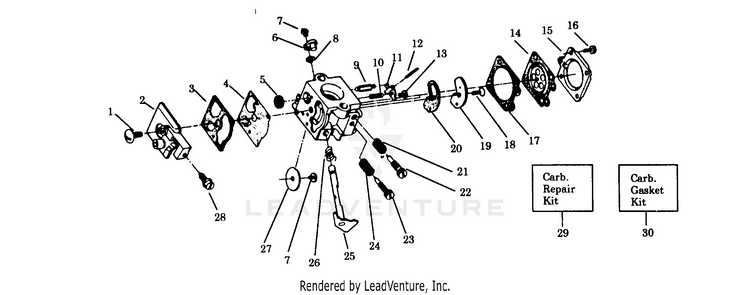

CARBURETOR

...
...
1
Pump Cover Screw PLN-530035017
...
2
Pump Cover Ass'y. (Inc. #28) PLN-530035191
...
3
GASKET PLN-504130906
...
4
PUMP DIAPHRAGM PLN-504130807
...
5
Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
6
Swivel Lever Ass'y. PLN-530035193
...
7
Throttle Valve Screw Included in Carburetor Kwik Repair Kit. PLN-530035015
...
8
Throttle Shaft Clip PLN-530035007
...
9
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
10
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
11
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
12
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
13
Metering Lever Pin Screw PLN-530035016
...
14
DIAPHRAGM PLN-503896701
...
15
Metering Diaphragm Cover PLN-530035149
...
16
Metering Cover & Throttle Shaft Clip Screw PLN-530035153
...
17
Metering Diaphragm Gasket PLN-530035151
...
18
Circuit Plate Screw Included in Carburetor Kwik Repair Kit. PLN-530035137
...
19
Circuit Plate PLN-530035042
...
20
GASKET PLN-501781301
...
21
Hi Speed Needle Spring PLN-530035036
...
22
H-NEEDLE PLN-501782201
...
23
Idle Needle PLN-530035141
...
24
Idle Needle Spring PLN-530035023
...
25
Throttle Shaft Ass'y. PLN-530035192
...
26
Throttle Return Spring PLN-530035138
...
27
Throttle Valve PLN-530035133
...
28
Idle Adjustment Screw PLN-530035156
...
29
Kwik Repair Kit PLN-530035185
...
30
Gasket Diaphragm Kit PLN-530069844
