Weed Eater XR-105 Gas Trimmer

Model: XR-105 Gas Trimmer

Back To Assemblies

Save Part Not Listed?
product name

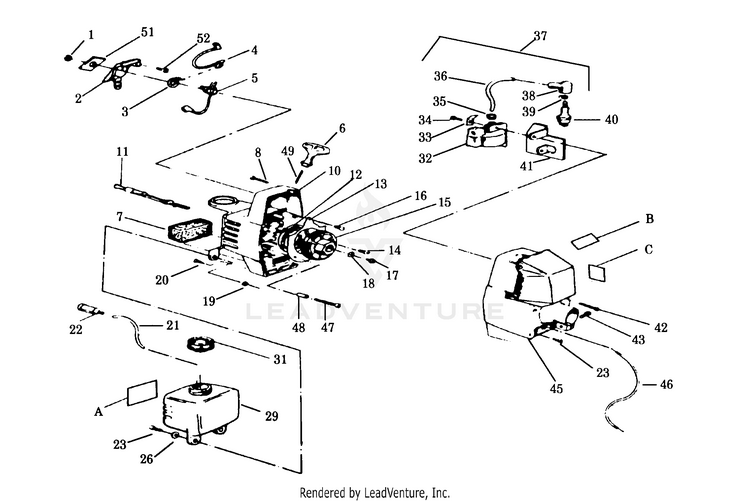

STARTER & SHROUD

...
...
1
Switch- Plate and Nut PLN-530002582
...
2
Housing Switch PLN-530026616
...
3
Grounding Switch Washer PLN-530024569
...
4
Lead Wire Grouding Switch PLN-530039122
...
5
Grounding Switch Kit (Inc. 1,3,4,33) PLN-530069182
...
6
Handle-Starter PLN-530027569
...
7
Air Filter PLN-530024371
...
8
Screw PLN-530015583
...
10
Fan Housing Kit PLN-530069236
...
11
Choke Knob PLN-530024303
...
12
KIT STARTER SPRING PLN-545008009
...
13
Air Baffle PLN-530026035
...
14
Screw PLN-530015373
...
15
Starter Pulley PLN-530026048
...
16
Screw PLN-530015596
...
17
Screw PLN-530016141
...
18
Washer PLN-530015123
...
19
Nut PLN-530001543
...
20
Screw PLN-530015582
...
21
Line Kit PLN-530069247
...
22
XR-105-T 1 PLN-530091878
...
22
Assy-Fuel Pickup PLN-530095646
...
23
Screw PLN-530015168
...
26
Lockwasher PLN-530015123
...
29
Fuel Tank Ass'y. PLN-530010838
...
31
Assy-Fuel Cap PLN-530014347
...
32
Ignition Module Kit PLN-530069181
...
33
Electrical Tab PLN-530025995
...
34
Screw PLN-530015816
...
35
Plug Wire Grommet PLN-530024435
...
36
High Tension Lead Wire PLN-530039082
...
37
High Tension Lead Ass'y. (Inc.36,38,39) PLN-530039103
...
38
Spark Plug Boot PLN-530003934
...
39
Spark Plug Boot PLN-507475326
...
40
Spark Plug (CJ-14) PLN-530030077
...
41
Air Deflector PLN-530026658
...
42
Screw PLN-530015376
...
43
Bolt PLN-530093802
...
45
XR-105 PLN-530010763
...
45
XR-125 PLN-530010931
...
46
Throttle Cable PLN-530093959
...
47
Screw PLN-530015305
...
48
Spacer PLN-530026122
...
49
Rope Kit PLN-530069232
...
51
Indicating Switch Plate PLN-530026741
...
52
Screw PLN-530015598
...
A
Fuel Tank Decal PLN-530027389
...
B
XR-105 & XR-125 (Not a serviceable part) PLN-530026999
...
C
XR-105 PLN-530027390
...
C
XR-125 Right PLN-530027694
...
C
XR-125 Only PLN-530027693
