product name

Weed Eater WildThing Gas Trimmer

Model: WildThing Gas Trimmer

Save Part Not Listed?

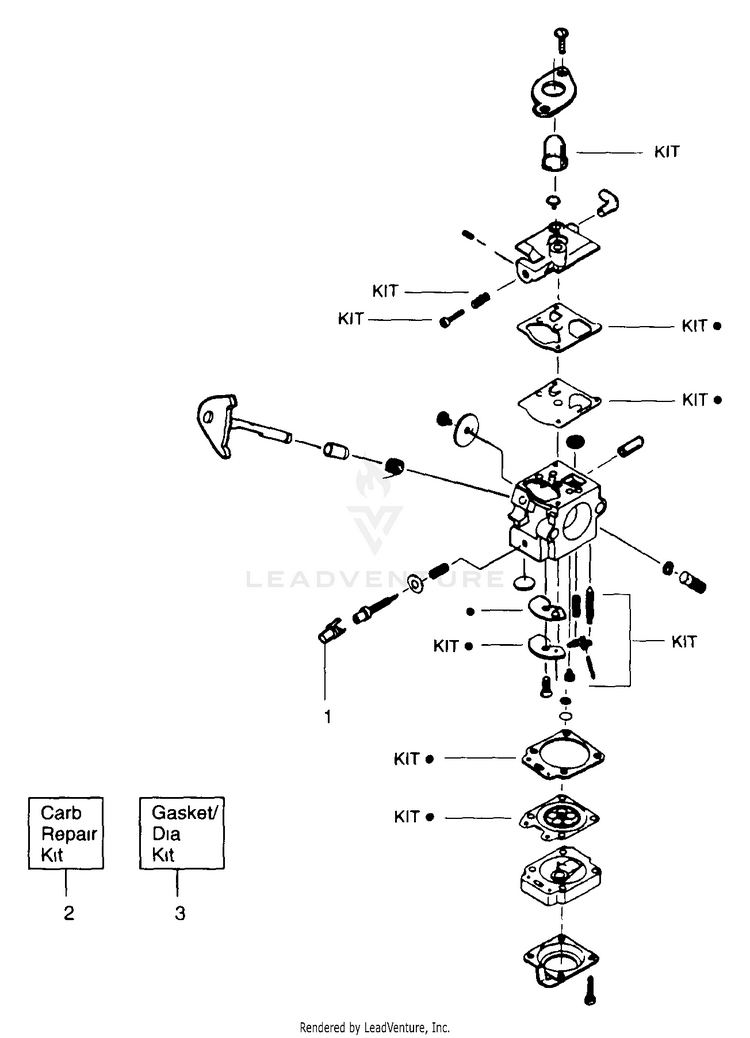

product name

Carburetor Assembly

...
...
xx
Carburetor Assembly PLN-530069754
...
1
Limiter Cap PLN-530038404
...
2
Carburetor Repair Kit KIT = Indicates Contents PLN-530069838
...
3
Gasket Diaphragm Kit A Black DOT = Indicates Contents PLN-530069844

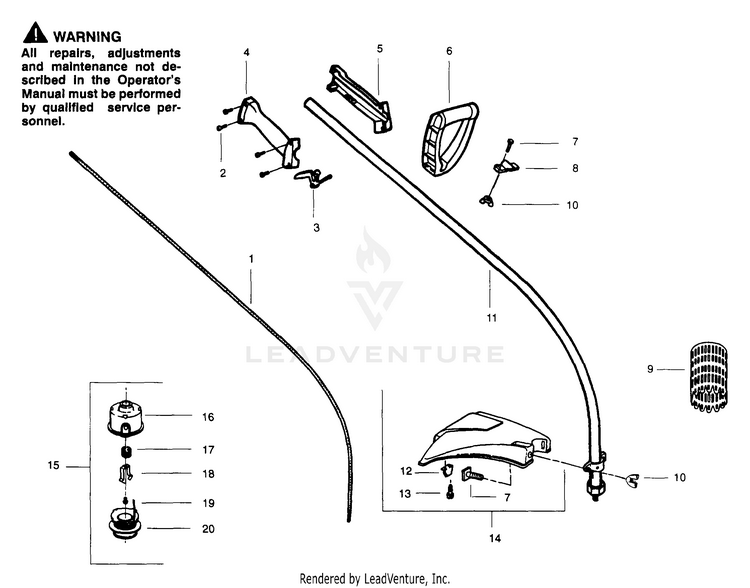

Drive Shaft & Cutting Head

...
...
1
Drive Shaft PLN-530095423
...
2
Screw - Throttle Hsg PLN-530015880
...
3
Trigger PLN-530038682
...
4
Throttle Hsg. (Right) PLN-530052261
...
5
Throttle Hsg. (Left) PLN-530052260
...
6
Assist Handle PLN-530052264
...
7
Bolt - Handle/Shield PLN-530015820
...
8
Clamp - Handle PLN-530049901
...
9
Easywrap Treeguard PLN-952711542
...
10
Nut PLN-530091373
...
11
Drive Shaft Hsg. Ass'y Featherlite Plus 50"(steel tube) PLN-530071314
...
12
Line Limiter PLN-530052286
...
13
Screw - Line Limiter PLN-530015886
...
14
Shield Kit Ass'y Incl items 7, 12 & 13 PLN-530069916
...
15
Cutting Head Ass'y Incl items 16-20 PLN-952701666
...
16
Hub Ass'y PLN-530069690
...
17
Spring PLN-530401464
...
18
Clip - Retainer - Head PLN-530401466
...
19
Screw w/Washer - Head PLN-530401467
...
20
Spool w/Line PLN-952711527
...
xx
Operator Manual Not Shown PLN-530083930
...
xx
Shaft Warning Decal Not Shown PLN-530047899

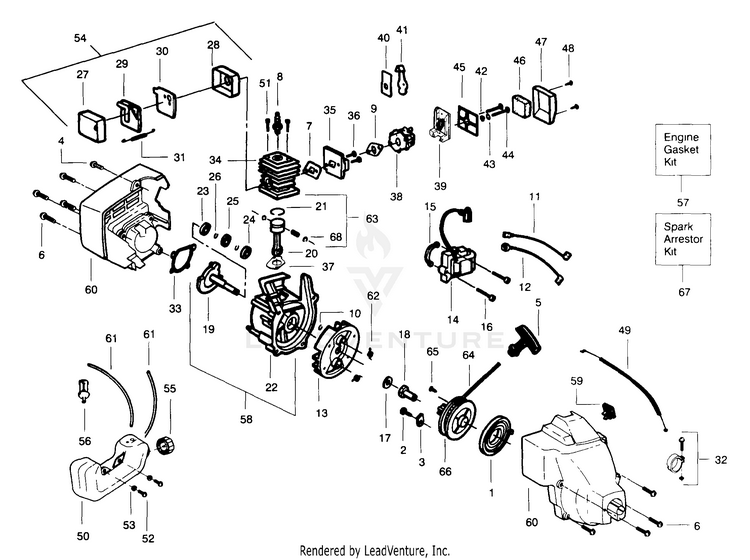

Power Unit

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw - Pulley PLN-530015775
...
3
Retainer - Pulley PLN-530027523
...
4
Screw - Shrd/Fan Hsg PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Gasket - Cylind./Carb PLN-530019233
...
8
Spark Plug PLN-503235112
...
9
Gasket - Carb. PLN-530019194
...
10
Retainer Ring - C'case PLN-530015945
...
11
Lead Wire Ass'y PLN-530014663
...
12
SWITCH, GROUND WIRE PLN-581425901
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530039163
...
15
Spacer - Ignit. Module PLN-530036145
...
16
Screw - Ignit. Module PLN-530015954
...
17
Washer - Flat PLN-530015828
...
18
Drive Coupling PLN-530038604
...
19
Crankshaft Ass'y PLN-530014532
...
20
Connecting Rod Ass'y PLN-530069615
...
21
Piston Ring PLN-530036404
...
22
Crankcase Ass'y Incl items 23-26 PLN-530014861
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retain Ring - C'shaft PLN-530015941
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle - Exit PLN-530049489
...
30
Muffler Baffle - First PLN-530036579
...
31
Muffler Spring PLN-530016197
...
32
Assy-Nose Cone Clamp PLN-530056365
...
33
Gasket - C'case PLN-530019181
...
34
CYLINDER PLN-530012353
...
35
Carb Adaptor PLN-530047659
...
36
Screw - Carb Adaptor PLN-530016014
...
37
Gasket - Cylinder PLN-530019223
...
38
Carburetor Ass'y Kit Includes Limiter Cap PLN-530069754
...
39
Air Box PLN-530038582
...
40
Choke Plate PLN-530038747
...
41
Choke Shutter PLN-530038686
...
42
Washer PLN-530015254
...
43
Choke Spacer PLN-530015852
...
44
Screw PLN-530015887
...
45
Filter Plate PLN-530036569
...
46
Air Filter Foam PLN-530036575
...
47
Air Filter Cover PLN-530036568
...
48
Screw PLN-530015957
...
49
Assy Throttle Cable PLN-530071548
...
50
Fuel Tank Ass'y PLN-530047255
...
51
Screw - Cylinder PLN-530015953
...
52
Screw - Fuel Tank PLN-530015814
...
53
Washer - Fuel Tank PLN-530016131
...
54
Muffler Kit PLN-530069660
...
55
Fuel Cap Ass'y PLN-530014347
...
56
Assy-Fuel Pickup PLN-530095646
...
57
Engine Gasket Kit Incl items 7, 9, 33, 37 PLN-530069616
...
58
C'case & C'shaft Assy Incl items 10, 19, 22 - 26 PLN-530014729
...
59
Switch-Momentary PLN-530071356
...
60
Fan Housing/Shroud Ass'y PLN-530069915
...
61
Fuel Line Kit Incls both fuel lines PLN-530069599
...
62
Starter Dog Spring PLN-530016191
...
63
Piston Kit Incl items 21, 68 & Pin PLN-530069621
...
64
Rope Kit PLN-530069232
...
65
Screw PLN-530016080
...
66
STARTER PULLEY KIT Incl item 65 PLN-530071786
...
67
Spark Arrestor Kit PLN-530069380
...
68
Piston Pin Retainer PLN-530015162
