Weed Eater WT200LE Gas Blower Type 1, Wildthing

Model: WT200LE Gas Blower Type 1

Save Part Not Listed?
product name

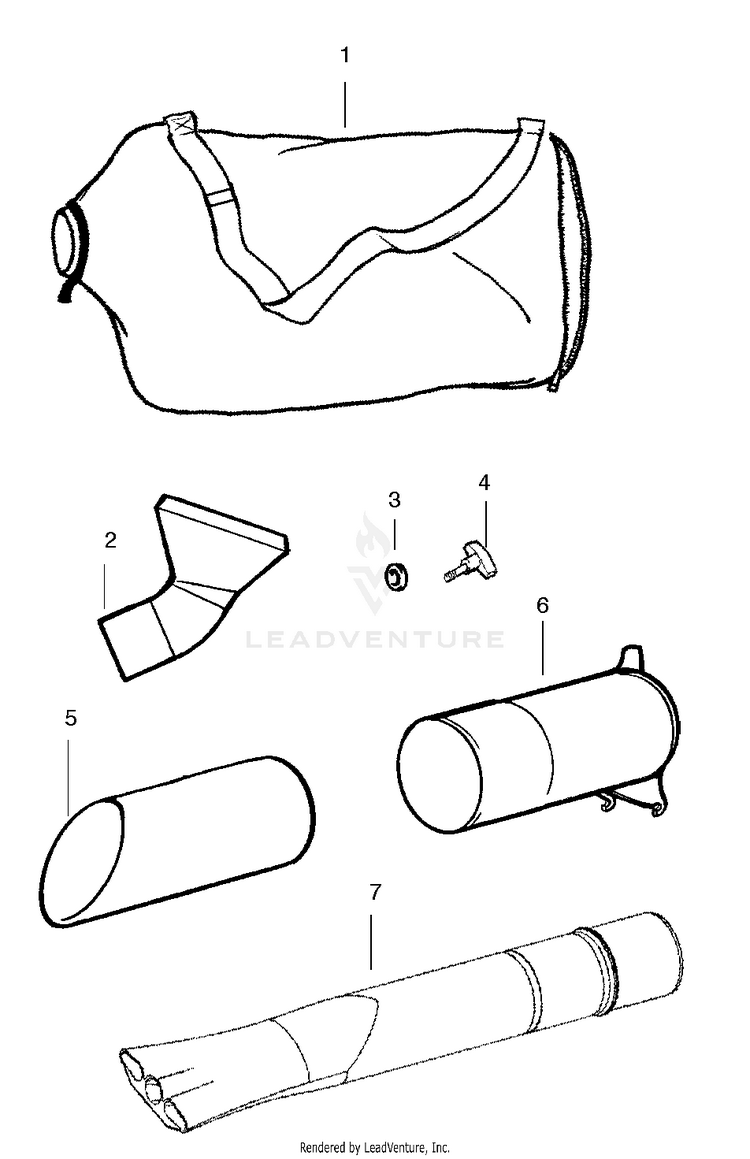

Assy Vaccum

...
...
1
Assy-Vac. Bag w/strap PLN-530095564
...
2
Tube-Elbow Vac PLN-530095470
...
3
Retainer-Vac Tube Knob PLN-530049686
...
4
Knob PLN-530016322
...
5
Tube-Lower Vac PLN-530094476
...
7
Tube-Blower PLN-530095593

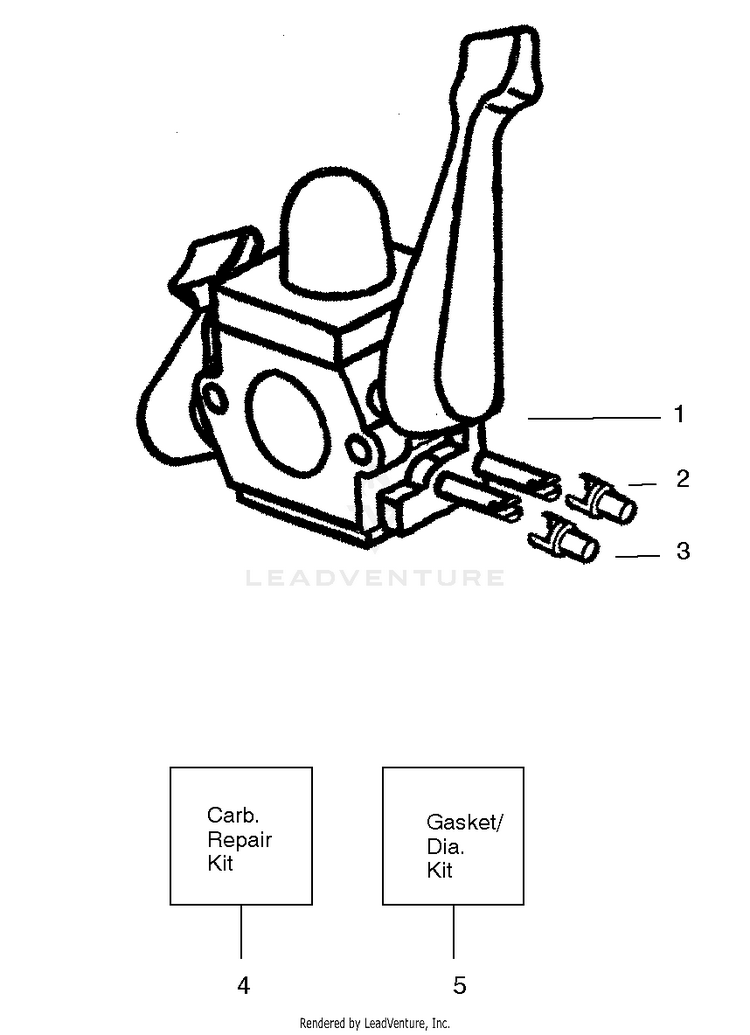

Carburetor Assembly

...
...
xx
Carburetor Assembly (C1Q-W11) PLN-530071465
...
1
Assy-Carb. Zama, (C1Q-W11) PLN-530071465
...
2
Cap-Limiter (high) brown PLN-530038479
...
3
Cap-Limiter (low) tan PLN-530038478
...
4
Kit-Carb. Repair PLN-530071475
...
5
Kit-Carburetor Minor Repair PLN-530071442

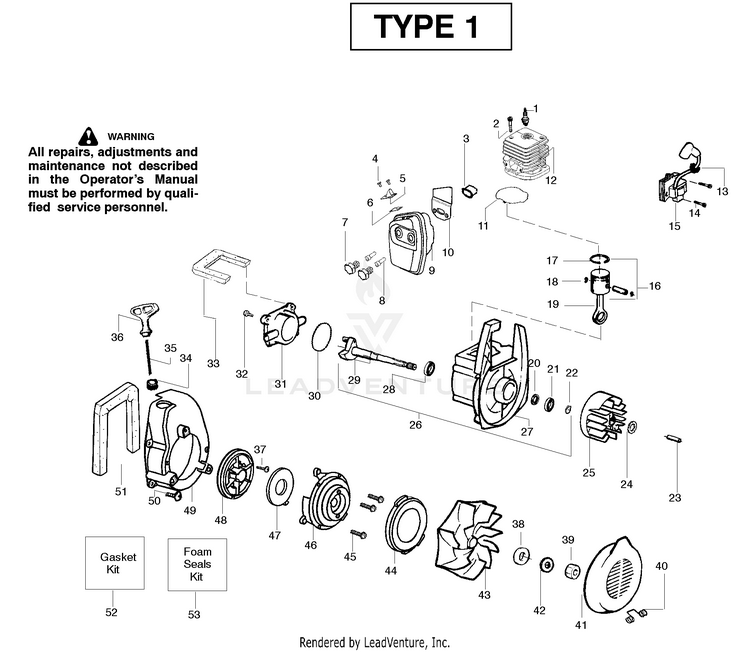

Engine Type 1

...
...
1
Spark Plug PLN-503235112
...
2
Screw PLN-530015953
...
3
Insulator-Heat PLN-530055191
...
4
Screw PLN-530055240
...
5
Deflector-Muffler PLN-530055241
...
6
Kit-Spark Screen (Incl. #4) PLN-530071461
...
7
Bolt-Muffler-external PLN-530016369
...
8
Screw-Muffler-Internal PLN-530016341
...
9
Kit-Muffler (Incl. 4-6,8,10) PLN-530071460
...
10
Gasket-Baffle (kit) PLN-530071458
...
11
Gasket-Cylinder (kit) PLN-530071458
...
12
Kit-Cylinder PLN-530071457
...
13
Grommet-Ign. Module PLN-530019182
...
14
Screw-Ignition Module PLN-530016357
...
15
Ignition Module PLN-530035505
...
16
Kit-Piston (Incl. 17 & 18) PLN-530071833
...
17
RING PISTON PLN-545154001
...
18
Retainer-Piston Pin PLN-530015162
...
19
CONNECTING ROD ASSY PLN-530049817
...
20
Seal-Crankcase PLN-530019264
...
21
Bearing-Outer PLN-530055728
...
22
Retainer Ring-C'shaft PLN-530015941
...
23
Spacer-Flywheel PLN-530016190
...
24
Washer PLN-530015149
...
25
FLYWHEEL ASSY PLN-530047534
...
26
Assy-Crankcase/Crank shaft (Incl. 22,27,29) PLN-530071456
...
27
Assy-Crankcase (Incl. 20,21,28) PLN-530012440
...
28
Bearing-Inner PLN-530032125
...
29
Assy-Crankshaft PLN-530012452
...
30
O-ring-C/case (kit) PLN-530071458
...
31
Cover-Crankcase PLN-530012443
...
32
SCREW PLN-530016386
...
33
Foam-219mm (kit) PLN-530071459
...
34
Eyelet-Flange PLN-530029182
...
35
Kit-Rope PLN-530071467
...
36
Handle-Starter PLN-530049488
...
37
Screw-Rope PLN-530016326
...
38
Washer-Flat PLN-530016279
...
39
Nut PLN-530626605
...
40
Spring-Return Cover PLN-530402043
...
41
Inlet Door PLN-530049313
...
42
Washer-Belleville PLN-530016240
...
43
Assy-Impeller PLN-530069817
...
44
Seal-Ring PLN-530055106
...
45
Screw PLN-530016349
...
46
Housing-Pulley PLN-530055101
...
47
KIT STARTER SPRING PLN-545008011
...
48
PULLEY STARTER PLN-545150201
...
49
Fan Housing PLN-530055102
...
50
SCREW PLN-530016386
...
51
Foam-365mm (kit) PLN-530071459
...
52
Kit-Gasket PLN-530071458
...
53
Kit-Foam Seals PLN-530071459

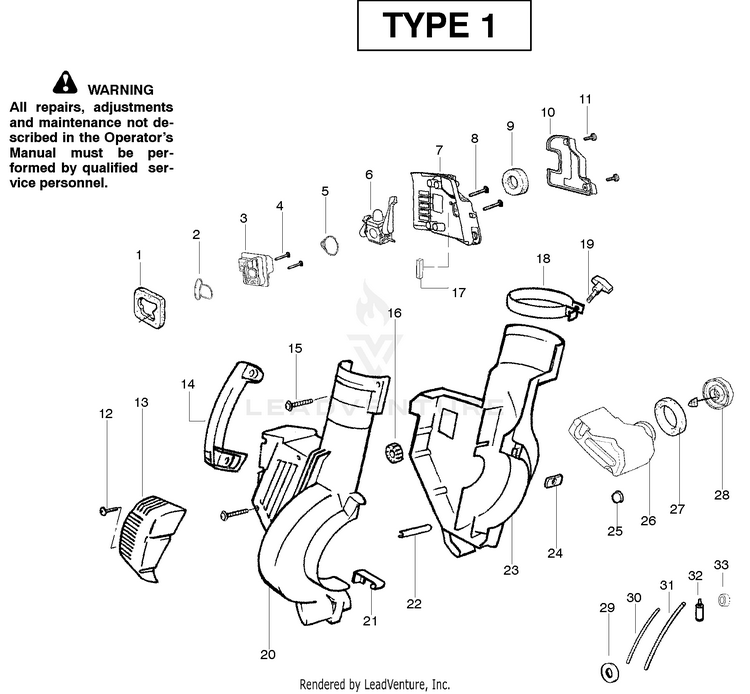

Housing Type 1

...
...
1
Air Dam (kit) PLN-530071459
...
2
Gasket-Adapter (kit) PLN-530071458
...
3
Carburetor Adaptor PLN-530035514
...
4
Screw PLN-530016309
...
5
Gasket-Carburetor (kit) PLN-530071458
...
6
Kit-Carb Ass'y. (C1Q-W11) PLN-530071465
...
7
Air Box PLN-530056233
...
8
Screw-Carb. PLN-530016340
...
9
Filter-Air PLN-530049383
...
10
Cover-Air Filter PLN-530056234
...
11
Screw-Air Box Cover PLN-530016354
...
12
Screw PLN-530015880
...
13
Assy-Muffler Cover PLN-530056235
...
14
Handle PLN-530095469
...
15
Screw PLN-530015886
...
16
Isolator-Handle PLN-530049323
...
17
Foam 25.4mm (kit) PLN-530071459
...
18
Clamp-Blower Tube PLN-530016324
...
19
Knob-Tube Clamp PLN-530016322
...
20
Housing-Right PLN-530056217
...
21
Spring-Cover Latch PLN-530402044
...
22
Guide-Starter Rope PLN-530049617
...
23
Housing-Left PLN-530056216
...
24
Nut PLN-530016207
...
25
Isolator-Crankcase PLN-530036792
...
26
Assy-Fuel Tank PLN-545058007
...
27
Gasket-Fuel Tank PLN-530049527
...
28
Assy - Fuel Cap w/retainer PLN-530057973
...
29
Grommet-Shroud PLN-530049656
...
30
Kit-Line Carb/Purge PLN-530069247
...
31
Kit-Line Tank/Purge PLN-530069216
...
32
Assy-Fuel Pick-up PLN-530095646
...
33
Grommet-Fuel line (kit) PLN-530071459
...
33
Operator Manual Not Shown PLN-530086848
...
33
Warning Decal Not Shown PLN-530084404
...
33
Decal-Start Inst. Not Shown PLN-530055358

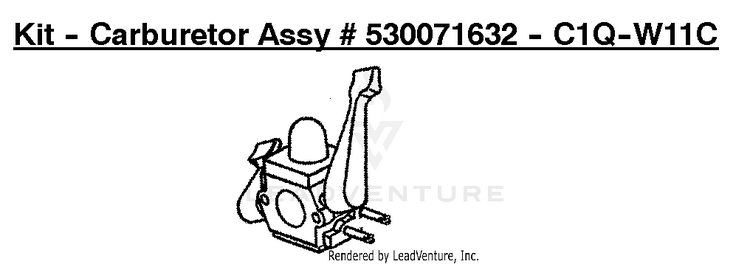

Kit Carburetor Assy

...
...
530071632
KIT CARB ASSY C1Q-W11 PLN-530071775
