Weed Eater WT200 Gas Blower Type 2, Wildthing

Model: WT200 Gas Blower Type 2

Save Part Not Listed?
product name

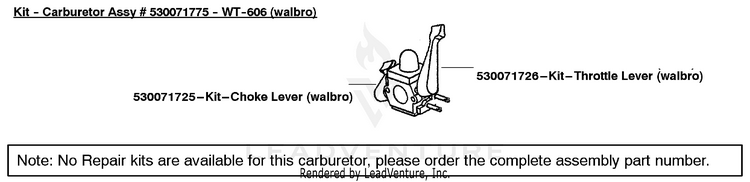

Carburetor Assembly (Walbro WT-606) P/N 530071775

...
...
530071725
Kit Choke Lever (walbro) PLN-530071725
...
530071775
Kit Carburetor Assy # WT-606 (walbro) PLN-530071775
...
530071726
Kit Throttle Lever (walbro) PLN-530071726

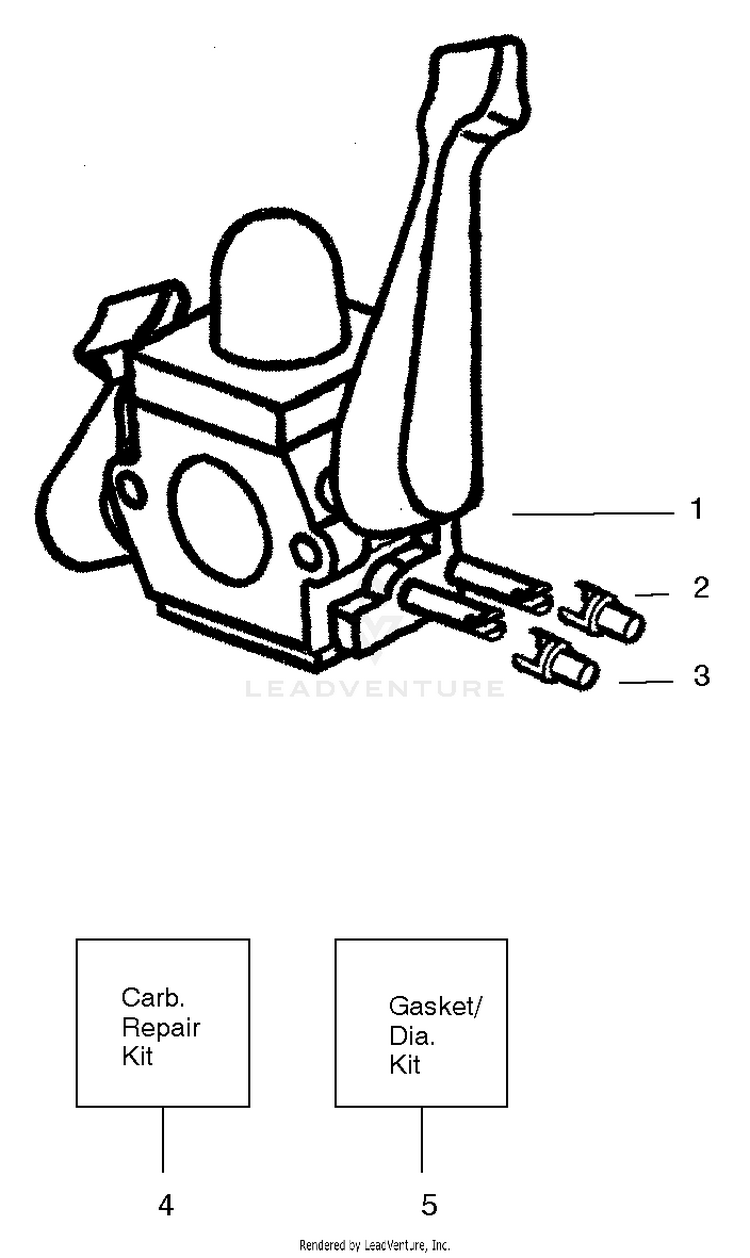

Carburetor Assembly (Zama C1Q-W11) P/N 530071465

...
...
1
Assy-Carb. Zama (C1Q-W11) PLN-530071465
...
2
Cap-Limiter (high) brown PLN-530038479
...
3
Cap-Limiter (low) tan PLN-530038478
...
4
Kit-Carb. Repair PLN-530071475
...
5
Kit-Carburetor Minor Repair PLN-530071442

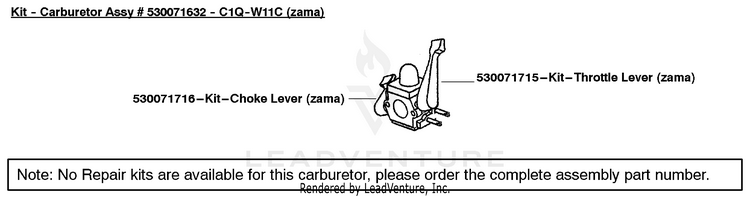

Carburetor Assembly (Zama C1Q-W11C) P/N 530071632

...
...
530071716
KIT CHOKE ZAMA LB25 PLN-545081819
...
530071632
KIT CARB ASSY C1Q-W11 PLN-530071775
...
530071715
Kit Throttle Lever (zama) PLN-530071715

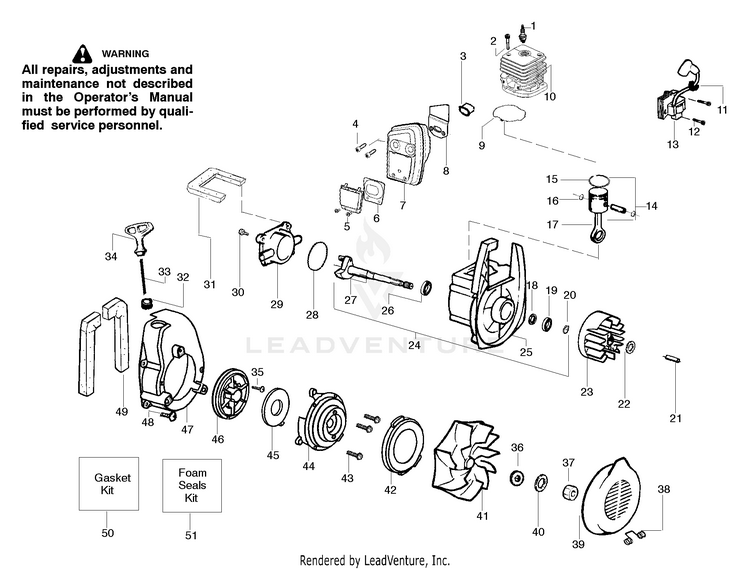

Engine Assembly Type 2

...
...
1
Spark Plug (RCJ-6Y) PLN-952030249
...
2
Screw PLN-530015953
...
3
Insulator-Heat PLN-530055191
...
4
Screw-Muffler-Internal PLN-530016387
...
5
Screw PLN-530015241
...
6
Kit-Spark Screen (incl. #5) PLN-530071593
...
7
MUFFLER KIT (incl. 4,5,6, & 8) PLN-530071592
...
8
Gasket-Baffle (kit) PLN-530071458
...
9
Gasket-Cylinder (kit) PLN-530071458
...
10
Kit-Cylinder PLN-530071457
...
11
Grommet-Ign. Module PLN-530019182
...
12
Screw-Ignition Module PLN-530016357
...
13
Ignition Module PLN-530035505
...
14
Kit-Piston (Incl. 15 & 16) PLN-530071833
...
15
RING PISTON PLN-545154001
...
16
Retainer-Piston Pin PLN-530015162
...
17
CONNECTING ROD ASSY PLN-530049817
...
18
Kit-Crankcase Seal PLN-530071615
...
19
Bearing-Outer PLN-530055728
...
20
Retainer Ring-C'chaft PLN-530015941
...
21
Spacer-Flywheel PLN-530016190
...
22
Washer PLN-530015149
...
23
FLYWHEEL ASSY PLN-530047534
...
24
Assy-Crankcase/Crank shaft (incl. 20,25,27) PLN-530071456
...
25
Assy-Crankcase (Incl. 18,19,26) PLN-530012492
...
26
Bearing-Inner PLN-530032125
...
27
Assy-Crankshaft PLN-530012452
...
28
O-ring-C/case (kit) PLN-530071458
...
29
Cover-Crankcase PLN-530012443
...
30
SCREW PLN-530016386
...
31
Foam-219mm (kit) PLN-530071459
...
32
Eyelet-Flange PLN-530029182
...
33
Kit-Rope (Incl. 35) PLN-530071467
...
34
Handle-Starter PLN-530054834
...
35
Screw-Rope PLN-530016326
...
36
Washer-Belleville PLN-530016240
...
37
Nut PLN-530626605
...
38
Spring-Return Cover PLN-530402043
...
39
Inlet Door PLN-530049313
...
40
Washer-Flat PLN-530016279
...
41
Assy-Impeller PLN-530069817
...
42
Seal-Ring PLN-530056625
...
43
Screw PLN-530016349
...
44
Housing-Pulley PLN-530055101
...
45
KIT STARTER SPRING PLN-545008011
...
46
PULLEY STARTER PLN-545150201
...
47
Fan Housing PLN-530055102
...
48
SCREW PLN-530016386
...
49
Foam-182mm (kit) PLN-530071459
...
50
Kit-Gasket ("Handle, Chassis & Blower Assembly Type 2" incl. 2, & 5 ); ("Engine Assembly Type 2" incl. 8, 9, & 28 ) PLN-530071458
...
51
Kit-Foam Seals ("Handle, Chassis & Blower Assembly Type 2" incl. 1, 31); ("Engine Assembly Type 2" incl. 31 & 49) PLN-530071459

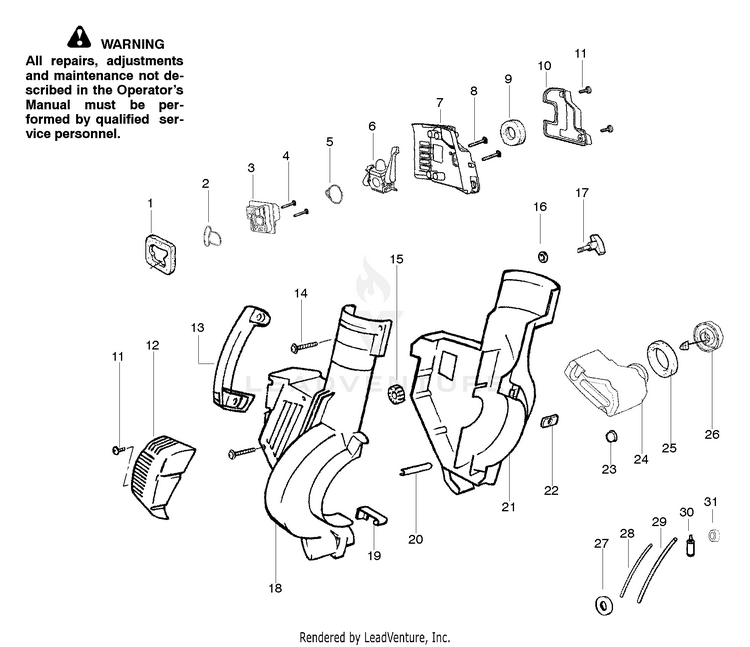

Handle, Chassis & Blower Assembly Type 2

...
...
1
Air Dam (kit) PLN-530071459
...
2
Gasket- Adapter (kit) PLN-530071458
...
3
Carburetor Adaptor PLN-530035561
...
4
Screw PLN-530016309
...
5
Gasket-Carburetor (kit) PLN-530071458
...
6
Kit-Carb Ass'y (C1Q-W11) PLN-530071645
...
6
KIT CARB ASSY C1Q-W11 PLN-530071775
...
6
Kit-Carb Ass'y (WT-606) PLN-530071775
...
7
Air Box PLN-530056639
...
8
Screw-Carb. PLN-530015849
...
9
Filter-Air PLN-530049383
...
10
Cover-Air Filter PLN-530056582
...
11
Screw PLN-530016349
...
12
Guard-Muffler PLN-530056642
...
13
Handle PLN-530095469
...
14
Screw PLN-530015886
...
15
Isolator PLN-530049323
...
16
Nut PLN-530015197
...
17
Knob-Blower PLN-530016322
...
18
HOUSING ASSY PLN-530059189
...
19
Spring-Cover Latch PLN-530402044
...
20
Guide-Starter Rope PLN-530049617
...
21
Housing-Left PLN-530056691
...
22
Nut PLN-530016207
...
23
Isolator-Crankcase PLN-530036792
...
24
Assy-Fuel Tank PLN-545058007
...
25
Gasket-Fuel Tank PLN-530049527
...
26
Assy - Fuel Cap w/retainer PLN-530057973
...
27
Grommet-Shroud PLN-530049656
...
28
Kit-Line Carb/Purge PLN-530069247
...
29
Kit-Line Tank/Purge PLN-530069216
...
30
Assy-Fuel Pick-up PLN-530095646
...
31
Grommet-Fuel line (kit) PLN-530071459
...
xx
Operator Manual Not Shown PLN-530163808
...
xx
Warning Decal Not Shown PLN-530057414
...
xx
Decal-Start Inst. Not Shown PLN-530057215

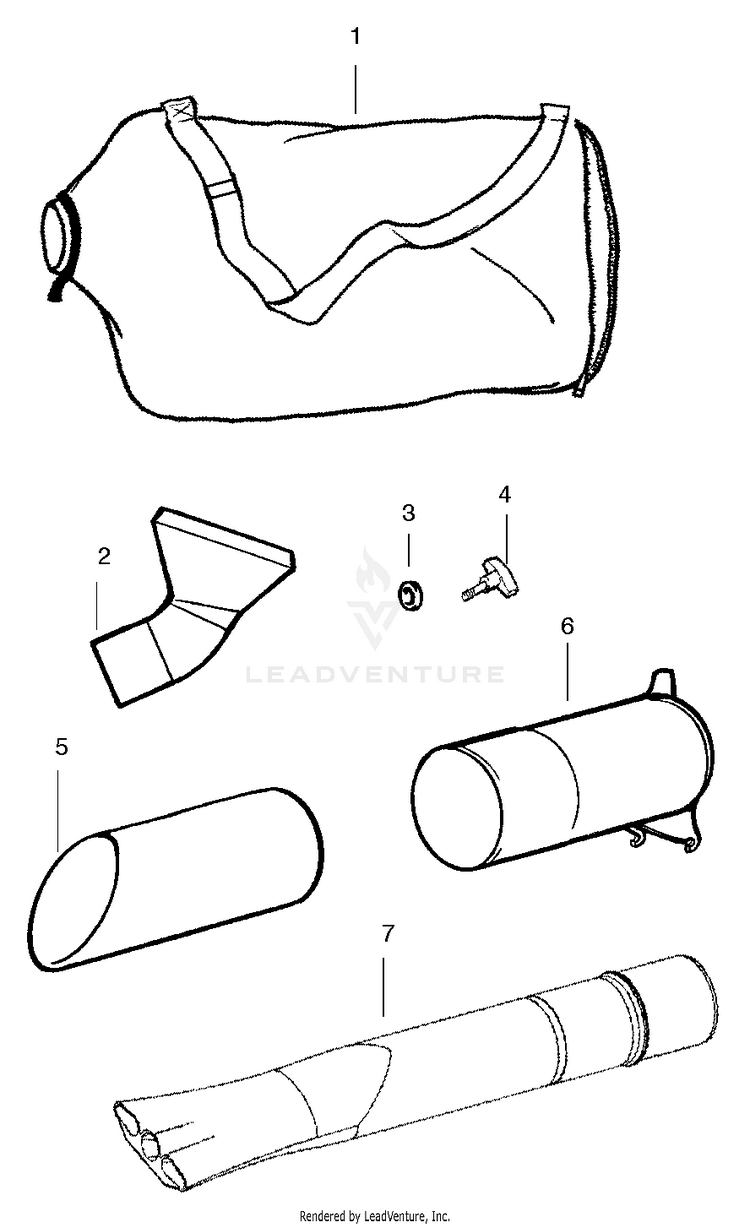

Vacuum Assembly

...
...
1
Assy-Vac. Bag w/strap PLN-530095564
...
2
Tube-Elbow Vac PLN-530095470
...
3
Retainer-Vac Tube Knob PLN-530049686
...
4
Knob PLN-530016322
...
5
Tube-Lower Vac PLN-530094476
...
7
Tube-Blower PLN-530095593
