product name

Weed Eater WEBV215 Electric Blower WEBVE215

Model: WEBV215 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

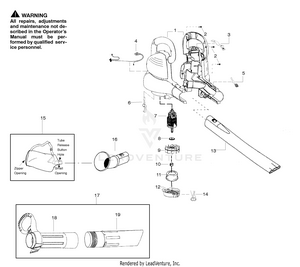

Electric Blower Assembly

...
...
1
Housing Set (Incl. #5) PLN-530404377
...
2
Screw PLN-530016120
...
3
Cover - Switch PLN-530403764
...
4
ASSY WIRE HARNESS (Incl. switch) PLN-545124301
...
5
Button - Tube Latch PLN-530404367
...
6
Button - Door Latch PLN-530404363
...
7
Assy. Motor PLN-530403770
...
8
Washer PLN-530403834
...
9
Impeller PLN-530403771
...
10
NUT LOCKING PLN-545162101
...
11
Restrictor - Inlet PLN-530403791
...
12
Door - Vacuum Inlet PLN-530404365
...
13
Tube - Blower PLN-530404368
...
14
Spring - Door PLN-530403833
...
15
Assy. - Vac Bag PLN-530095599
...
16
Attachment-Vac Bag PLN-530404383
...
17
Kit-Upper/Lower Tube w/handle PLN-530404380
...
18
Tube - Upper Vac w/handle PLN-530404381
...
19
Tube - Lower Vac PLN-530404366
...
xx
Manual - Operator's Not Shown PLN-545117531
...
xx
Decal - Warning Not Shown PLN-545141602
...
...
...
