Weed Eater WEB200 Electric Blower

Model: WEB200 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

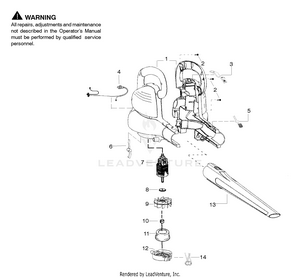

Electric Blower Assembly

...
...
1
Housing Set (Incl. #5) PLN-530403785
...
2
Screw PLN-530016120
...
3
Cover - Switch PLN-530403764
...
4
ASSY WIRE HARNESS (Incl. switch) PLN-545124301
...
5
Button - Tube Latch PLN-530403775
...
6
Button - Door Latch PLN-545028801
...
7
Assy. Motor PLN-530403770
...
8
Washer PLN-530403834
...
9
Impeller PLN-530403771
...
10
NUT LOCKING PLN-545162101
...
11
Restrictor - Inlet PLN-530403791
...
12
Door - Vacuum Inlet PLN-530403788
...
13
Tube - Blower PLN-530403765
...
14
Spring - Door PLN-530403833
...
xx
Manual - Operator's Not Shown PLN-545117533
...
xx
Decal - Warning Not Shown PLN-545141604
...
...
...
