Weed Eater VS2000BV Gas Blower

Model: VS2000BV Gas Blower

Back To Assemblies

Save Part Not Listed?
product name

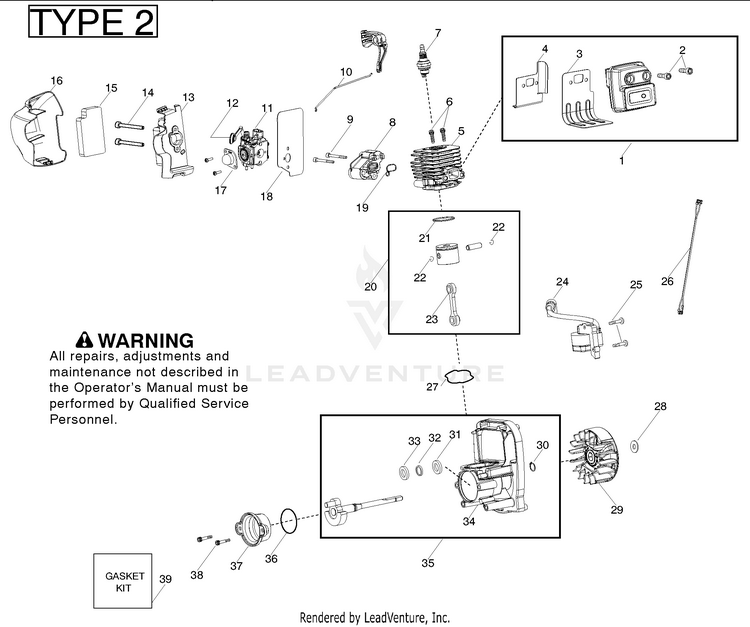

Engine Type 2

...
...
1
Assy - Muffler (Incl. 2,3,4) PLN-525592801
...
2
Bolt PLN-530058982
...
3
Gasket-Muffler (gasket kit) PLN-545081832
...
4
Shield - Muffler Heat PLN-545098801
...
5
Cylinder PLN-545115301
...
6
Bolt PLN-530015953
...
7
Spark Plug (RCJ-6Y) PLN-952030249
...
8
Adapter - Carb. PLN-545084901
...
9
Screw PLN-530016441
...
10
Linkage - Throttle PLN-545115501
...
11
Kit - Carb. Assy (WT847) (Incl. 12,17) PLN-545081831
...
12
Lever- Choke (Yellow) PLN-545157101
...
13
Base - Airbox PLN-545112601
...
14
Screw PLN-530016429
...
15
Filter PLN-545116801
...
16
Cover - Air Box Filter PLN-545112702
...
17
Bulb - Purge (walbro 188-16) PLN-530035497
...
18
Gasket (Carb / Adapter) (gasket kit) PLN-545081832
...
19
O-Ring (Adapter / Cylinder) (gasket kit) PLN-545081832
...
20
Kit - Piston / Connecting Rod (Incl. 21,22,23) PLN-545081864
...
21
PISTON RING PLN-545154009
...
22
Retainer - Wrist Pin PLN-530015162
...
23
KIT PISTON CONN ROD FORGED PLN-545156002
...
24
Kit - Ignition Module PLN-545081826
...
25
Screw PLN-530016357
...
26
Assy - Wire Harness PLN-545127601
...
27
O-Ring (Cyl/Crankcase) (gasket kit) PLN-545081832
...
28
Washer PLN-530015828
...
29
FLYWHEEL ASSY PLN-545221701
...
30
Retainer - Crankshaft PLN-530015941
...
31
Bearing - Outer PLN-530055728
...
32
Seal PLN-530019264
...
33
Bearing - Inner PLN-530032125
...
34
Assy - Crankcase (Incl. 31,32,33) PLN-530012582
...
35
Assy - Crankcase & Crankshaft (Incl. 30,34) PLN-545102102
...
36
O-Ring (Rear Plug) (gasket kit) PLN-545081832
...
37
Assy - Rear Plug (Incl. 36) PLN-530057954
...
38
Screw PLN-530016386
...
39
Kit - Gasket (Incl. 3,18,19,27,36) PLN-545081832
