Weed Eater TT-125 Gas Trimmer

Model: TT-125 Gas Trimmer

Back To Assemblies

Save Part Not Listed?
product name

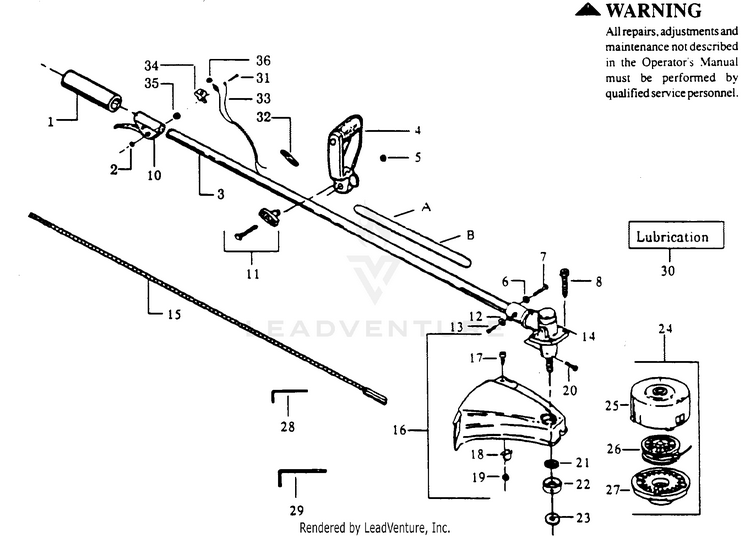

CUTTING & DRIVE SHAFT

...
...
1
Grip PLN-530029445
...
2
Nut PLN-530015768
...
3
Drive Shaft Housing PLN-530094757
...
4
Handle PLN-530010957
...
5
Nut PLN-530015197
...
6
Lockwasher PLN-530001677
...
7
Screw PLN-530001711
...
8
Screw PLN-530016107
...
10
Throttle Lever Assy. w/Lock (Inc.2 & 9) PLN-530010959
...
11
HANDLE KIT PLN-530069347
...
12
Lockwasher PLN-530015328
...
13
Screw PLN-530091612
...
14
GEAR BOX REPLACEMENT KIT PLN-530071781
...
15
Drive Shaft PLN-530094566
...
16
Shield Kit Assy. (Inc.17 - 19) PLN-530069256
...
17
Screw PLN-530015037
...
18
Line Limiter PLN-530094570
...
19
Nut PLN-530403094
...
20
Screw PLN-530094616
...
21
Seal PLN-530094640
...
22
Dust Cup PLN-530094639
...
23
Grass Washer PLN-530094571
...
24
Cutting Head Assy. (Inc.25 - 27) PLN-952702554
...
25
Accy--Cutting Head PLN-952711550
...
26
Spool w/Line PLN-952702556
...
27
Cover PLN-530094494
...
28
Hex Wrench (5/32) PLN-530031159
...
29
Hex Wrench (3/16) PLN-530031098
...
30
LUBE, FLEX SHAFT NLA PLN-952708514
...
31
Screw PLN-530015767
...
32
Terminal Lock PLN-530027893
...
33
Wire Harness Assy. PLN-530029076
...
34
Kill Switch Bracket PLN-530029090
...
35
Spacer PLN-530027689
...
36
Switch- Plate and Nut PLN-530002582
