Weed Eater TT-125 Gas Trimmer

Model: TT-125 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

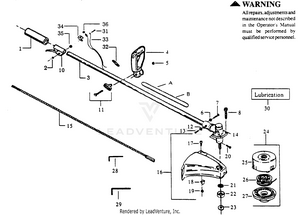

CUTTING & DRIVE SHAFT

...
...
1
Grip PLN-530029445
...
2
Nut PLN-530015768
...
3
Drive Shaft Housing PLN-530094757
...
4
Handle PLN-530010957
...
5
Nut PLN-530015197
...
6
Lockwasher PLN-530001677
...
7
Screw PLN-530001711
...
8
Screw PLN-530016107
...
10
Throttle Lever Assy. w/Lock (Inc.2 & 9) PLN-530010959
...
11
HANDLE KIT PLN-530069347
...
12
Lockwasher PLN-530015328
...
13
Screw PLN-530091612
...
14
GEAR BOX REPLACEMENT KIT PLN-530071781
...
15
Drive Shaft PLN-530094566
...
16
Shield Kit Assy. (Inc.17 - 19) PLN-530069256
...
17
Screw PLN-530015037
...
18
Line Limiter PLN-530094570
...
19
Nut PLN-530403094
...
20
Screw PLN-530094616
...
21
Seal PLN-530094640
...
22
Dust Cup PLN-530094639
...
23
Grass Washer PLN-530094571
...
24
Cutting Head Assy. (Inc.25 - 27) PLN-952702554
...
25
Accy--Cutting Head PLN-952711550
...
26
Spool w/Line PLN-952702556
...
27
Cover PLN-530094494
...
28
Hex Wrench (5/32) PLN-530031159
...
29
Hex Wrench (3/16) PLN-530031098
...
30
LUBE, FLEX SHAFT NLA PLN-952708514
...
31
Screw PLN-530015767
...
32
Terminal Lock PLN-530027893
...
33
Wire Harness Assy. PLN-530029076
...
34
Kill Switch Bracket PLN-530029090
...
35
Spacer PLN-530027689
...
36
Switch- Plate and Nut PLN-530002582

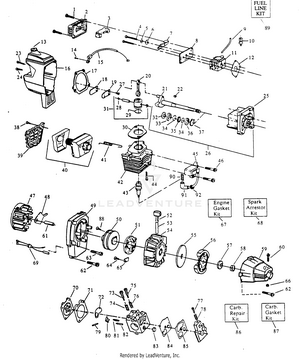

POWER UNIT

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer-Choke PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530027526
...
8
Air Filter Plate PLN-530027527
...
9
Fuel Line PLN-530021076
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
12
Carburetor Gasket PLN-530019156
...
13
Assy-Fuel Cap PLN-530014347
...
14
Screw PLN-530015775
...
15
Throttle Cable Ass'y., Model 114 PLN-530037497
...
16
Shroud & Tank Assy. PLN-530027982
...
17
Gasket PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Assy. (Incl. Bearings) PLN-530010960
...
21
Crankshaft Assy. PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015772
...
24
Screw PLN-530015771
...
25
Crankcase Assy. (Inc.33 - 36) PLN-530014016
...
26
Assy-C'case/C'shaft (Inc.21, 28, 32 - 37) PLN-530071705
...
27
Screw PLN-530015241
...
28
Piston Pin Retainer PLN-530015162
...
29
Piston Ring PLN-530025875
...
30
GASKET CYL W/ ADHESIVE PLN-530019267
...
31
Piston Kit PLN-530069899
...
32
Spacer PLN-530015788
...
33
Inner Bearing PLN-530032103
...
34
Retaining Ring PLN-530015787
...
35
Crankshaft Seal PLN-530019158
...
36
Outer Bearing PLN-530032102
...
37
Crankshaft Retaining Ring PLN-530015789
...
38
Screw PLN-530015717
...
39
Muffler Guard PLN-530027781
...
40
Muffler Kit PLN-530069310
...
41
Muffler Spring PLN-530036409
...
42
Cylinder PLN-530012235
...
43
Spark Plug PLN-530030077
...
44
Screw PLN-530015239
...
45
Ignition Module Kit PLN-530039134
...
46
Screw PLN-530015816
...
47
Flywheel Ass'y PLN-530039189
...
48
Washer PLN-530016030
...
49
Fan Housing PLN-530027947
...
50
Kit-Starter Pulley PLN-530071387
...
51
SPRING STARTER PLN-545008015
...
52
Starter Handle PLN-530027569
...
53
Rope Kit PLN-530069232
...
54
Pulley Housing Assy. PLN-530014009
...
55
Clutch Washer PLN-530094189
...
56
Clutch Assy. Kit PLN-530069254
...
57
Washer PLN-530015796
...
58
Nut PLN-530001733
...
59
Clutch Housing PLN-530014017
...
60
Screw PLN-530015767
...
61
Spacer PLN-530027511
...
62
Screw PLN-530015770
...
63
Screw PLN-530015769
...
64
Screw PLN-530015496
...
65
Pulley Retainer PLN-530027523
...
66
Lockout PLN-530015768
...
67
Engine Gasket Kit PLN-530069276
...
68
Spark Arrestor Kit PLN-952701612
...
69
Lead Wire/Grommet Assy. PLN-530027690
...
70
DIAPHRAGM PLN-503896701
...
71
Metering Diaphragm Gasket PLN-530035151
...
72
GASKET PLN-501781301
...
73
H-NEEDLE PLN-501782201
...
74
Hi Speed Needle Spring PLN-530035036
...
75
Idle Needle PLN-530035141
...
76
Idle Needle Spring PLN-530035023
...
77
Idle Speed Screw PLN-530035203
...
78
Spring PLN-501667801
...
79
Pin PLN-505520125
...
80
Metering Lever PLN-505520127
...
81
Metering Lever Spring PLN-530035188
...
82
Needle PLN-503117001
...
83
Inlet Screen PLN-530035178
...
84
PUMP DIAPHRAGM PLN-504130807
...
85
GASKET PLN-504130906
...
86
Carb. Kwik Repair Kit PLN-530035260
...
87
Carb. Gasket/Diaphragm PLN-530035185
...
88
SCREW PLN-530016080
...
89
Fuel Line Kit PLN-530069247
...
90
Spark Plug Boot PLN-507475326
...
91
Boot Spark Plug PLN-530003934
...
92
Grommet Plug Wire PLN-530024435
...
xx
"O" Ring Fuel Cap PLN-530019136
...
...
...
