Weed Eater TE400LE Gas Trimmer Type 4

Model: TE400LE Gas Trimmer Type 4

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

Carburctor Assembly (C1U-W10) P/N 530071628

...
...
530071628

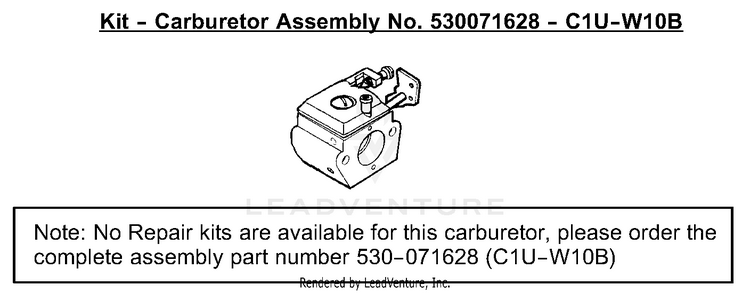

Kit - Carburetor Assembly - C1U-W10B PLN-530071628

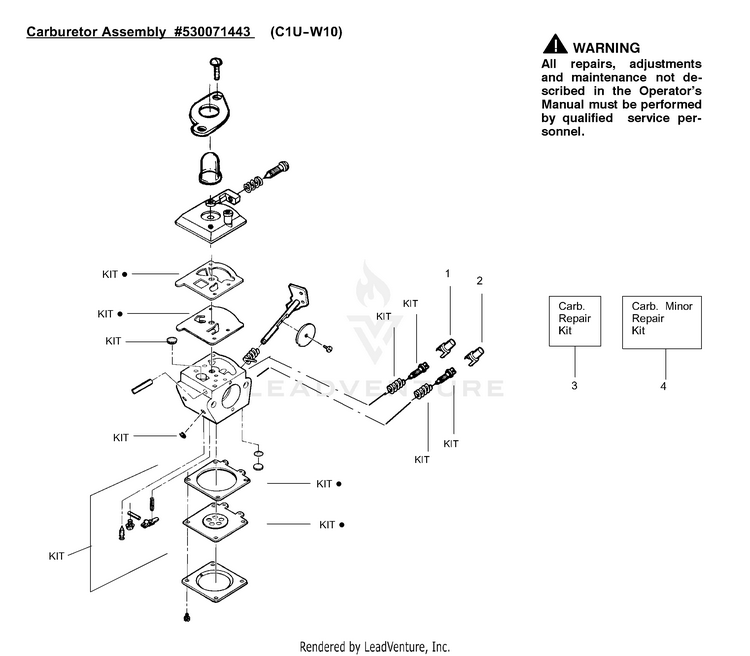

Carburetor Assembly (C1U-W10) P/N 530071443

...
...
1
Limiter Cap (low) PLN-530038478
...
2
Limiter Cap (high) PLN-530038479
...
3
Kit--Carburetor Repair (KIT= Indicates Contents) PLN-530071517
...
4
Kit--Carburetor Minor Repair (DOT= Indicates Contents) PLN-530071442
...
530071443
Carburetor Assembly (C1U-W10) PLN-530071443

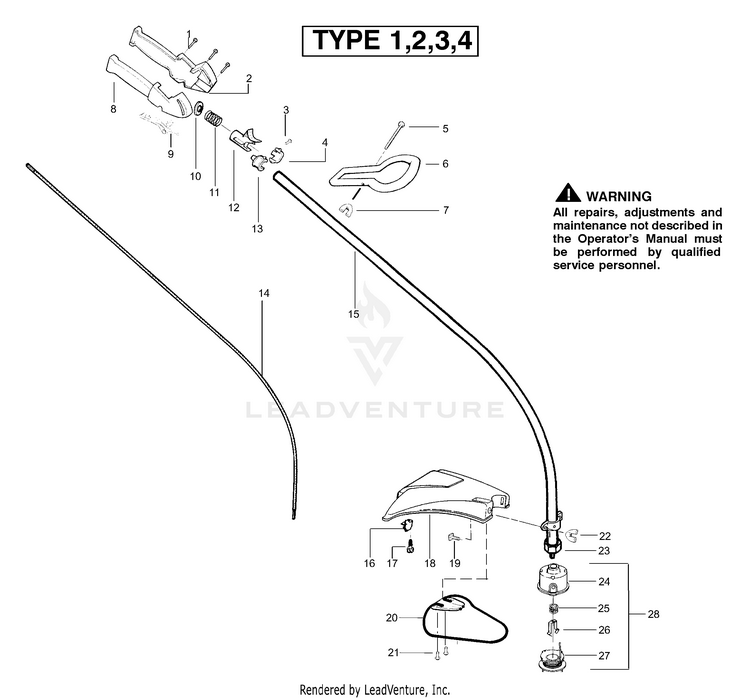

Driveshaft & Cutting Head

...
...
1
Screw PLN-530016179
...
2
Throttle Hsg. (Left) PLN-530047924
...
3
SCREW PLN-530016386
...
4
Locator-left PLN-530054159
...
5
Bolt-Handle PLN-530016173
...
6
Handle-Assist PLN-530047919
...
7
Nut PLN-530091373
...
8
Throttle Hsg. (Right) PLN-530047923
...
9
Trigger - Throttle PLN-530038682
...
10
Washer PLN-530016193
...
11
Spring-Compression PLN-530042084
...
12
Actuator PLN-530047925
...
13
Locator-right PLN-530054160
...
14
Flex-Drive Shaft PLN-530095853
...
15
Assy-Drive Shaft Hsg. PLN-530071416
...
16
Line Limiter PLN-530052287
...
17
Screw-Line Limiter PLN-530015814
...
18
Kit-Shield Ass'y. (Incl. 16 & 17) PLN-530071328
...
19
Bolt-Shield PLN-530015820
...
20
Assy-Wire Guard PLN-530054459
...
21
Screw PLN-530016179
...
22
Nut PLN-530091373
...
23
Dust Cup PLN-530095574
...
24
Assy-Hub PLN-530095770
...
25
Spring-Return PLN-530401958
...
26
Retainer-Spool PLN-530401957
...
27
Accy W/E Spool w/Line PLN-952701678
...
28
Accy-Cutting Head PLN-952711593
...
xx
Operator's Manual - Type 1 Not Shown PLN-530088738
...
xx
Operator's Manual - Type 2,3,4 Not Shown PLN-530163368
...
xx
Shaft Warning Decal Not Shown PLN-530055350

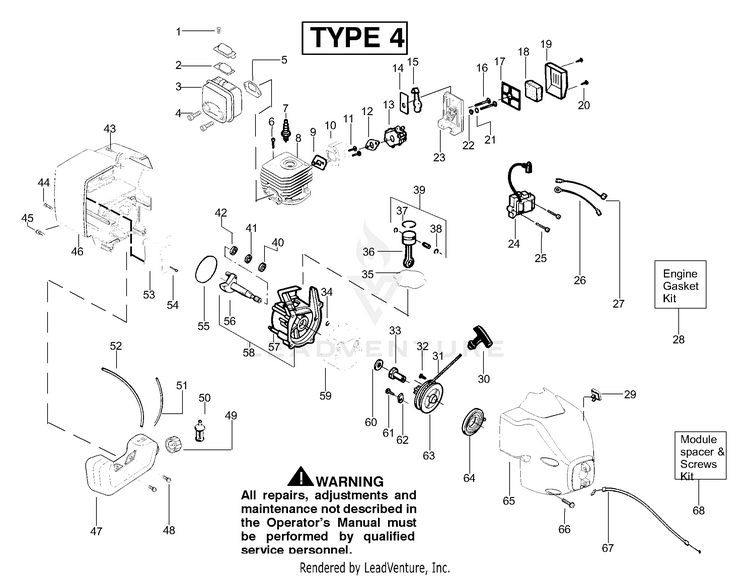

Engine Type 4

...
...
1
Screw-screen PLN-530015241
...
2
Kit-Spark Arrestor PLN-530071544
...
3
Kit-Muffler (incl.1,2,4,5) PLN-530071672
...
4
Bolt-Muffler PLN-530016338
...
5
Gasket-Muffler (kit) PLN-530071363
...
6
Screw-Cylinder PLN-530015953
...
7
Spark Plug (RCJ-6Y) PLN-952030249
...
8
Kit-Cylinder PLN-530071668
...
9
Gasket-Cyl/Carb.(kit) PLN-530071363
...
10
Carb. Adapter PLN-530057635
...
11
Screw-Carb Adptr. PLN-530016309
...
12
Gasket-Carb.(kit) PLN-530071363
...
13
Kit-Carb. Ass'y. (C1U-W10B) PLN-530071628
...
14
Choke Plate PLN-530038747
...
15
Choke Shutter PLN-530035499
...
16
Screw-Carburetor PLN-530016393
...
17
Filter Support Plate PLN-530036569
...
18
Air FIlter Foam PLN-530036575
...
19
Air Filter Cover PLN-530054414
...
20
Screw-Air Box PLN-530015892
...
21
Choke Spacer PLN-530015852
...
22
Washer PLN-530015254
...
23
Air Box PLN-530052431
...
24
Kit - Ignition Module PLN-545081826
...
25
Screw-Ignit. Module PLN-530016357
...
26
Assy-Ground Wire PLN-530054448
...
27
Assy-Lead Wire PLN-530054449
...
28
Kit-Engine Gasket (Incl. 5,9,12,35,55) PLN-530071363
...
29
Kit-Switch-Off/On PLN-530069572
...
30
Handle-Starter PLN-530027569
...
31
Kit-Rope PLN-530071325
...
32
Screw PLN-530016326
...
33
Coupling-Drive PLN-530027953
...
34
Ret. Ring/C'shaft PLN-530015941
...
35
Seal-Cylinder(kit) PLN-530071363
...
36
CONNECTING ROD ASSY PLN-530049817
...
37
RING PISTON PLN-545154001
...
38
Retainer-Piston Pin PLN-530015162
...
39
Kit-Piston (Incls. 37,38 & Pin) PLN-530071833
...
40
Bearing-Outer PLN-530055728
...
41
Seal-C'case PLN-530071615
...
42
Bearing-Inner PLN-530032125
...
43
Screw-Shd/Fan Hsg PLN-530016349
...
44
SCREW PLN-530016386
...
45
Screw PLN-530016349
...
46
Rear Shroud PLN-530056710
...
47
FUEL TANK ASSY (incl. cap,lines,filter) PLN-545103802
...
48
Retainer-Tank PLN-530016379
...
49
Assy-Fuel Cap PLN-530014347
...
50
Assy-Fuel Pickup PLN-530095646
...
51
Fuel Line (Small) PLN-530069247
...
52
Fuel Line (Large) PLN-530069216
...
53
Shield-Heat PLN-530055351
...
54
Screw-Heat Shield PLN-530015805
...
55
O-ring-C'case(kit) PLN-530071363
...
56
Assy-Crankshaft PLN-530012413
...
57
Assy-Crankcase (Incl. 40-42) PLN-530012510
...
58
Assy-c'case/c'shaft (Incl. 34,56,57) PLN-530071670
...
59
FLYWHEEL ASSY PLN-545221701
...
60
Washer-Flat PLN-530015828
...
61
Screw-Pulley PLN-530015775
...
62
Retainer-Pulley PLN-530053985
...
63
Kit-Starter Pulley (Incl. 32) PLN-530071324
...
64
KIT STARTER SPRING PLN-545008011
...
65
Assy.-Fan Hsg. PLN-530056716
...
66
SCREW PLN-530016386
...
67
Assy-Throttle Cable PLN-530055546
...
68
Kit-Module Spacer & Screws PLN-530071731
...
...
...
