Weed Eater TE400CXL Gas Trimmer Type 3

Model: TE400CXL Gas Trimmer Type 3

Back To Assemblies

Save Part Not Listed?
product name

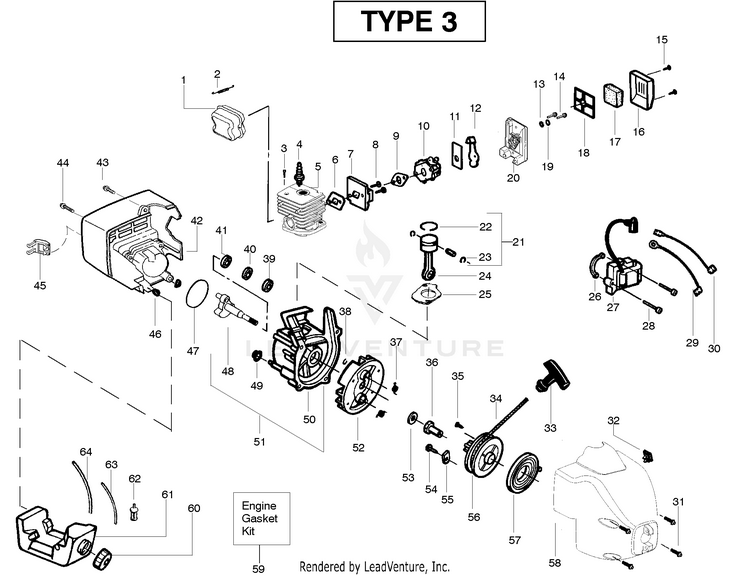

Engine Type 3

...
...
1
Kit - Muffler (incl. 2 & spark arrestor screen) PLN-530071396
...
2
Muffler Spring PLN-530042088
...
3
Screw-Cylinder PLN-530015953
...
4
Spark Plug (RCJ 6Y) PLN-952030249
...
5
Cylinder PLN-530012416
...
6
Gasket-Cyl/Carb.(kit) PLN-530071363
...
7
Adaptor-carb. PLN-530056404
...
8
Screw PLN-530016014
...
9
Gasket-Carb.(kit) PLN-530071363
...
10
Kit-Carb. (WA226) (Incl. Limiter Cap) PLN-530069754
...
11
Plate-Choke Mounting PLN-530038747
...
12
Lever-Choke PLN-530035499
...
13
Washer PLN-530015254
...
14
Screw PLN-530016353
...
15
Screw PLN-530015957
...
16
Cover-Air Box PLN-530036568
...
17
Foam-Air Filter PLN-530036575
...
18
Plate-Air Filter Support PLN-530036569
...
19
Spacer-Choke PLN-530015852
...
20
Box-Air PLN-530052431
...
21
Kit-Piston (Incl. 22, 23) PLN-530071833
...
22
RING PISTON PLN-545154001
...
23
Retainer-Piston Pin PLN-530015162
...
24
CONNECTING ROD ASSY PLN-530049817
...
25
Gasket-Cylinder(kit) PLN-530071363
...
26
Spacer-Module PLN-530036145
...
27
Kit - Ignition Module PLN-545081826
...
28
Screw PLN-530015954
...
29
Assy-Ground Wire PLN-530054448
...
30
Assy-Leadwire PLN-530054449
...
31
SCREW PLN-530016386
...
32
Kit-Switch PLN-530069572
...
33
Handle-Starter PLN-530027569
...
34
Kit - Rope PLN-530071325
...
35
Screw PLN-530016326
...
36
Coupling-Drive PLN-530027953
...
37
Spring-Starter Dog PLN-530023817
...
38
Retain. Ring-C'shaft PLN-530015941
...
39
Bearing-Outer PLN-530055728
...
40
Kit-Seal C'case PLN-530071615
...
41
Bearing-Inner PLN-530032125
...
42
Shroud PLN-530056943
...
43
Screw PLN-530015886
...
44
SCREW PLN-530016386
...
45
Guard-Muffler PLN-530054536
...
46
Isolator-Shroud PLN-530036793
...
47
O-Ring-C'case(kit) PLN-530071363
...
48
Assy-Crankshaft PLN-530012413
...
49
Isolator-Crankcase PLN-530036792
...
50
Assy-Crankcase (Incl. 39-41) PLN-530071627
...
51
Assy-C'case & C'shaft (Incl. 38,48,50) PLN-530071337
...
52
FLYWHEEL ASSY PLN-545221701
...
53
Washer-Flat PLN-530015828
...
54
Screw PLN-530015775
...
55
Retainer-Can PLN-530053985
...
56
Kit-Starter Pulley (Incl. 35) PLN-530071324
...
57
KIT STARTER SPRING PLN-545008011
...
58
Assy-Fan Housing PLN-530071415
...
59
Kit-Engine Gasket (Incl. 6,9,25,47) PLN-530071363
...
60
Assy-Fuel Cap PLN-530014347
...
61
Assy-Fuel Tank (Incl. cap,filter,lines) PLN-530049299
...
62
Assy-Fuel Pickup PLN-530095646
...
63
Kit-Fuel Line PLN-530069247
...
64
Kit-Fuel Line PLN-530069216
