Weed Eater TBC57 Gas Trimmer

Model: TBC57 Gas Trimmer

Back To Assemblies

Save Part Not Listed?
product name

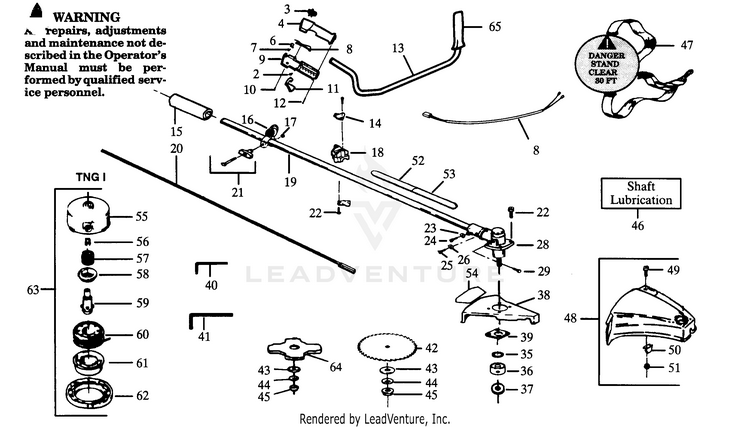

DRIVE SHAFT & CUTTING HEAD

...
...
1
Wire Harness Ass'y. PLN-530047144
...
2
Trigger Spring PLN-502199301
...
3
Rocker Switch PLN-503718201
...
4
Throttle Hsg.-Left PLN-502208502
...
6
Throttle Lock PLN-502209602
...
7
Spring Throttle Lock PLN-530403152
...
8
Throttle Lockout PLN-502199403
...
9
Throttle Hsg.-Right PLN-502208602
...
10
Screw PLN-503210719
...
11
Throttle Trigger PLN-502199203
...
12
Screw PLN-503210738
...
13
Handlebar PLN-530047139
...
14
Handlebar Bracket PLN-530094572
...
15
Drive Shaft Pad PLN-530027706
...
16
Clamp Harness Ass'y. PLN-530094686
...
17
Nut PLN-530015197
...
18
Handlebar Clamp PLN-530012207
...
19
Drive Shaft Housing PLN-530094650
...
20
Drive Shaft PLN-530094566
...
21
HANDLE KIT PLN-530069347
...
22
Screw, Use w/Plastic Shield PLN-530016107
...
22
Screw, Use w/Metal Shield PLN-530015791
...
23
Lockwasher PLN-530015328
...
24
Screw PLN-530094612
...
25
Screw PLN-530001711
...
26
Lockwasher PLN-530001642
...
28
GEAR BOX REPLACEMENT KIT PLN-530071781
...
29
Screw PLN-530094616
...
35
Seal PLN-530094640
...
36
Dust Cup PLN-530094639
...
37
Grass Washer PLN-530094571
...
38
SHIELD PLN-530094633
...
39
Shield Retention Plate PLN-530027615
...
40
Hex Wrench (5/32) PLN-530031159
...
41
Hex Wrench (3/16) PLN-530031098
...
42
Brush Blade PLN-952701610
...
43
Washer PLN-530015792
...
44
Washer--Belleville PLN-530016240
...
45
Nut PLN-530015793
...
46
Shaft Lubrication PLN-952030133
...
47
Shoulder Strap PLN-530094417
...
48
Shield Kit Ass'y. (Incl. 49-51) PLN-530069256
...
49
Screw PLN-530015037
...
50
Line Limiter PLN-530094570
...
51
Nut PLN-530403094
...
52
Decal-Shaft Warning (Upper) PLN-530029162
...
53
Decal-Shaft Warning (Lower) PLN-530029163
...
54
Decal-Blade Direction (Not a serviceable part) PLN-530027749
...
55
Hub PLN-530071295
...
56
Line Saver PLN-530093898
...
57
Spring PLN-530340007
...
58
Cap Spring PLN-530328929
...
59
Hub PLN-530071295
...
60
Spool w/Line PLN-952701589
...
61
Release Button PLN-530401183
...
62
Cover PLN-530092133
...
63
Accy--Cutting Head PLN-952711550
...
64
4-Point Blade (Optional) PLN-952701611
...
65
Grip-Left PLN-502145101
...
0
Operator Manual, Type 1 Not Shown. PLN-530082299
...
0
Operator Manual, Type 2 Not Shown. PLN-530083185
...
0
Operator Manual, Handlebar Warning Decal Not Shown. PLN-530026889
