Weed Eater TBC57 Gas Trimmer

Model: TBC57 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

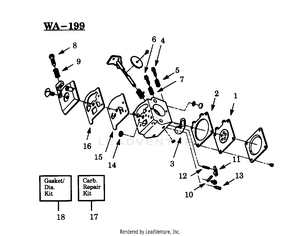

CARBURETOR WA-199

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
GASKET PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin PLN-505520125
...
11
Metering Lever PLN-505520127
...
12
Metering Lever Spring PLN-530035188
...
13
Needle PLN-503117001
...
14
Inlet Screen PLN-530035178
...
15
PUMP DIAPHRAGM PLN-504130807
...
16
GASKET PLN-504130906
...
17
Carb. Kwik Repair Kit (Inc. 1,2,3,12,13,14, 15,16,18) PLN-530035260
...
18
Carb. Gasket/DiaphragmKit (Inc. 1,2,3) Contents) PLN-530035185

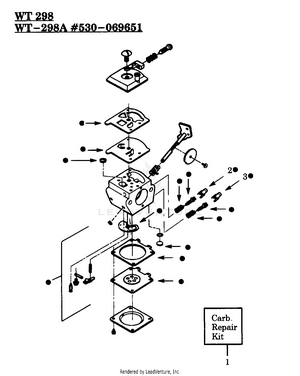

CARBURETOR WA-298, WT-298A

...
...
1
Carburetor Repair Kit (DOT Indicates Contents) PLN-530069623
...
2
Limiter Cap-Low PLN-530038317
...
3
Limiter Cap-High PLN-530038318

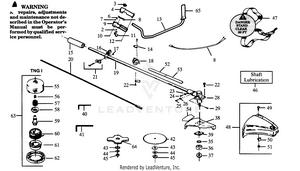

DRIVE SHAFT & CUTTING HEAD

...
...
1
Wire Harness Ass'y. PLN-530047144
...
2
Trigger Spring PLN-502199301
...
3
Rocker Switch PLN-503718201
...
4
Throttle Hsg.-Left PLN-502208502
...
6
Throttle Lock PLN-502209602
...
7
Spring Throttle Lock PLN-530403152
...
8
Throttle Lockout PLN-502199403
...
9
Throttle Hsg.-Right PLN-502208602
...
10
Screw PLN-503210719
...
11
Throttle Trigger PLN-502199203
...
12
Screw PLN-503210738
...
13
Handlebar PLN-530047139
...
14
Handlebar Bracket PLN-530094572
...
15
Drive Shaft Pad PLN-530027706
...
16
Clamp Harness Ass'y. PLN-530094686
...
17
Nut PLN-530015197
...
18
Handlebar Clamp PLN-530012207
...
19
Drive Shaft Housing PLN-530094650
...
20
Drive Shaft PLN-530094566
...
21
HANDLE KIT PLN-530069347
...
22
Screw, Use w/Plastic Shield PLN-530016107
...
22
Screw, Use w/Metal Shield PLN-530015791
...
23
Lockwasher PLN-530015328
...
24
Screw PLN-530094612
...
25
Screw PLN-530001711
...
26
Lockwasher PLN-530001642
...
28
GEAR BOX REPLACEMENT KIT PLN-530071781
...
29
Screw PLN-530094616
...
35
Seal PLN-530094640
...
36
Dust Cup PLN-530094639
...
37
Grass Washer PLN-530094571
...
38
SHIELD PLN-530094633
...
39
Shield Retention Plate PLN-530027615
...
40
Hex Wrench (5/32) PLN-530031159
...
41
Hex Wrench (3/16) PLN-530031098
...
42
Brush Blade PLN-952701610
...
43
Washer PLN-530015792
...
44
Washer--Belleville PLN-530016240
...
45
Nut PLN-530015793
...
46
Shaft Lubrication PLN-952030133
...
47
Shoulder Strap PLN-530094417
...
48
Shield Kit Ass'y. (Incl. 49-51) PLN-530069256
...
49
Screw PLN-530015037
...
50
Line Limiter PLN-530094570
...
51
Nut PLN-530403094
...
52
Decal-Shaft Warning (Upper) PLN-530029162
...
53
Decal-Shaft Warning (Lower) PLN-530029163
...
54
Decal-Blade Direction (Not a serviceable part) PLN-530027749
...
55
Hub PLN-530071295
...
56
Line Saver PLN-530093898
...
57
Spring PLN-530340007
...
58
Cap Spring PLN-530328929
...
59
Hub PLN-530071295
...
60
Spool w/Line PLN-952701589
...
61
Release Button PLN-530401183
...
62
Cover PLN-530092133
...
63
Accy--Cutting Head PLN-952711550
...
64
4-Point Blade (Optional) PLN-952701611
...
65
Grip-Left PLN-502145101
...
0
Operator Manual, Type 1 Not Shown. PLN-530082299
...
0
Operator Manual, Type 2 Not Shown. PLN-530083185
...
0
Operator Manual, Handlebar Warning Decal Not Shown. PLN-530026889

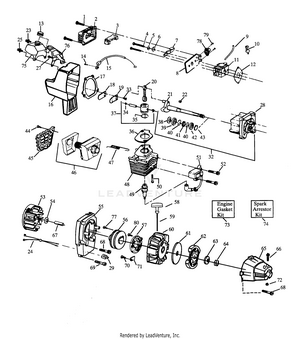

POWER UNIT

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
Air Filter Plate PLN-530037930
...
9
Fuel Line, Fuel Line PLN-530069247
...
9
Fuel Line, Return Line PLN-530069571
...
10
Assy-Fuel Pickup PLN-530095646
...
11
Carburetor (WT-298A) w/ Limiter Caps PLN-530069651
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Screw PLN-530015775
...
15
Throttle Cable Ass'y PLN-530047040
...
16
Shroud. PLN-530027923
...
17
Crankcase/Shroud Gasket PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (Incl. Bearings) PLN-530010960
...
21
Crankshaft Ass'y. See Service Ref. 1 PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015843
...
24
Leadwire/Grommet Ass'y. PLN-530047145
...
25
Screw PLN-530015771
...
27
SCREW PLN-530016386
...
28
Crankcase Ass'y. (Incl. 39-42) PLN-530014016
...
29
Connector-Male PLN-530038205
...
32
Assy-C'case/C'shaft PLN-530071705
...
33
SCREW 6-19X.437 PLN-545227101
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring PLN-530025875
...
36
GASKET CYL W/ ADHESIVE PLN-530019267
...
37
Piston Kit PLN-530069899
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027781
...
46
Muffler Kit PLN-530069310
...
47
Muffler Attachment Spring PLN-530036409
...
48
Cylinder PLN-530069626
...
49
Spark Plug, Type 1 (CJ-14) PLN-530030077
...
49
Spark Plug, Type 2 (RCJ-8Y) PLN-530030075
...
50
Screw PLN-530015239
...
51
Ignition Module Kit PLN-530039134
...
52
Screw PLN-530015816
...
53
Flywheel Ass'y. PLN-530039189
...
54
Washer PLN-530016030
...
55
Fan Housing PLN-530027947
...
56
Kit-Starter Pulley PLN-530071387
...
57
STARTER SPRING PLN-545008010
...
58
Starter Handle PLN-530027569
...
59
Rope Kit PLN-530069232
...
60
Pulley Housing Ass'y. PLN-530014022
...
61
Clutch Washer PLN-530094189
...
62
Clutch Ass'y. Kit PLN-530069254
...
63
Washer PLN-530015796
...
64
Nut PLN-530001733
...
65
Clutch Housing PLN-530014023
...
66
Screw PLN-530015767
...
67
Spacer PLN-530027511
...
68
Screw PLN-530015770
...
69
Screw PLN-530015769
...
70
Screw PLN-530015496
...
71
Retainer PLN-530027523
...
72
Locknut PLN-530015768
...
73
Engine Gasket Kit (Inc. 12,36,17) PLN-530069276
...
74
Spark Arrestor Kit PLN-952701612
...
75
Fuel Tank Ass'y. PLN-530038166
...
76
Fuel Tank Mtg. Bracket PLN-530029370
...
77
Screw (Incl. in Starter Pulley Kit) PLN-530016080
...
78
Primer Bulb Ass'y. PLN-530038874
...
79
Screw-Primer PLN-530016091
...
80
Screw-Starter Spring Type 2 PLN-530015882
...
xx
Carton Contents Bag Starting Instructions Not Shown. PLN-530047135
...
xx
Type 1 PLN-530038042
...
xx
Type 2 PLN-530047452
...
...
...
