Weed Eater SST45 Gas Trimmer

Model: SST45 Gas Trimmer

Save Part Not Listed?
product name

Carburetor Assembly - WA-207/207A, WA-219

...
...
1
DIAPHRAGM (Included in Carb. Kwik Repair Kit, P/N 530-035264 and in Carb. Gasket/Diaphragm Kit, P/N 530-035219) PLN-503896701
...
2
Metering Diaphragm Gasket (Included in Carb. Kwik Repair Kit, P/N 530-035264 and in Carb. Gasket/Diaphragm Kit, P/N 530-035219) PLN-530035151
...
3
Circuit Plate Gasket (Included in Carb. Kwik Repair Kit, P/N 530-035264 and in Carb. Gasket/Diaphragm Kit, P/N 530-035219) PLN-530035211
...
4
Mixture Needle WA-207/207A PLN-530035212
...
4
Mixture Needle WA-219 PLN-530035341
...
5
Needle Spring-Low Speed PLN-530035293
...
5
Mixture Needle Spring WA-219 PLN-530035342
...
8
PUMP DIAPHRAGM (Included in Carb. Kwik Repair Kit, P/N 530-035264 and in Carb. Gasket/Diaphragm Kit, P/N 530-035219) PLN-504130807
...
9
GASKET (Included in Carb. Kwik Repair Kit, P/N 530-035264 and in Carb. Gasket/Diaphragm Kit, P/N 530-035219) PLN-504130906
...
10
Idle Speed Screw PLN-530035203
...
11
Spring PLN-501667801
...
12
Pin (Included in Carb. Kwik Repair Kit, P/N 530-035264) PLN-505520125
...
13
Metering Lever (Included in Carb. Kwik Repair Kit, P/N 530-035264) PLN-505520127
...
14
Metering Lever Spring (Included in Carb. Kwik Repair Kit, P/N 530-035264) PLN-530035188
...
15
Needle (Included in Carb. Kwik Repair Kit, P/N 530-035264) PLN-503117001
...
16
Fuel Inlet Screen (Included in Carb. Kwik Repair Kit, P/N 530-035264) PLN-530035178
...
17
Metering Lever Pin Screw (Included in Carb. Kwik Repair Kit, P/N 530-035264) PLN-530035016
...
18
Carb. Kwik Repair Kit (Includes items 1,2,3,8,9,12-17) PLN-530035264
...
19
Gasket Diaphragm Kit (Includes items 1,2,3,8,9) PLN-530069844

Carburetor Repair Kits - WA-219B, WA-217

...
...
1
Carburetor Repair Kit WA-219B (D Indicates Contents) (New part number for this IPL) PLN-530069667
...
2
Limiter Cap (New part number for this IPL) PLN-530038404
...
xx
Carburetor Assy Kit - WA-219B PLN-530069648
...
xx
KIT CARBURETOR ASSY PLN-545081825

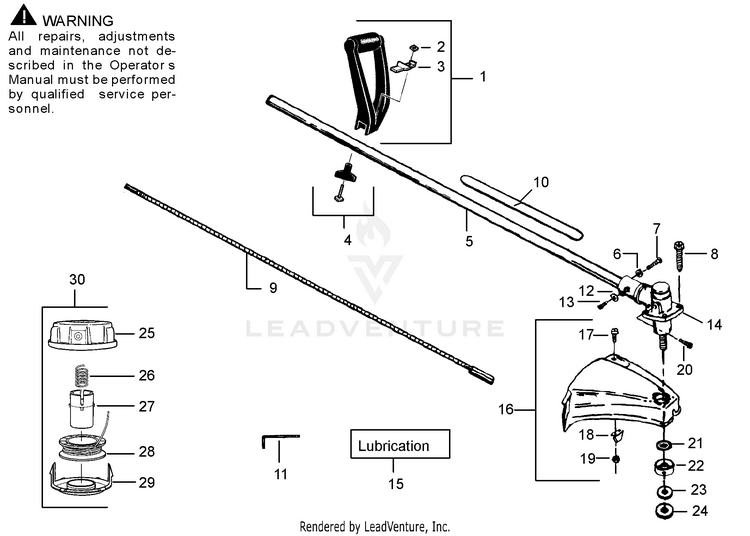

Driveshaft & Cutting Head

...
...
1
Assist Handle Kit (Incl. 2-4) PLN-530069496
...
2
Nut PLN-530015610
...
3
Clamp PLN-530094742
...
4
HANDLE KIT PLN-530069347
...
5
Drive Shaft Housing PLN-530014772
...
6
Lockwasher PLN-530001642
...
7
Screw PLN-530001711
...
8
Screw (Not Shown) New part number for this IPL PLN-530016107
...
9
Drive Shaft PLN-530095146
...
10
Shaft Warning Decal PLN-530029159
...
11
Hex Wrench (5/32) PLN-530031159
...
12
Lockwasher PLN-530015328
...
13
Screw PLN-530094612
...
14
GEAR BOX REPLACEMENT KIT PLN-530071781
...
15
Shaft Lubrication PLN-952030139
...
16
Shield Kit Assy. (Incl. 17-19) PLN-530069256
...
17
Screw PLN-530015037
...
18
Line Limiter PLN-530094570
...
19
Nut PLN-530403094
...
20
Screw PLN-530094616
...
21
Seal PLN-530094640
...
22
Dust Cup PLN-530094639
...
23
Grass Washer PLN-530094571
...
24
Washer PLN-530094189
...
25
Hub Assy. PLN-530014773
...
26
Spring PLN-530094830
...
27
Release Button PLN-530094827
...
28
Spool w/Line PLN-952701619
...
29
Cover PLN-530094828
...
30
Accy--Cutting Head PLN-952711550
...
xx
Operator Manual GTI 52, SST 45 (Not Shown) PLN-530081849
...
xx
Operator Manual Type 2 (Not Shown) PLN-530081871
...
xx
Operator Manual Type 3 (Not Shown) New part number for this IPL PLN-530083179

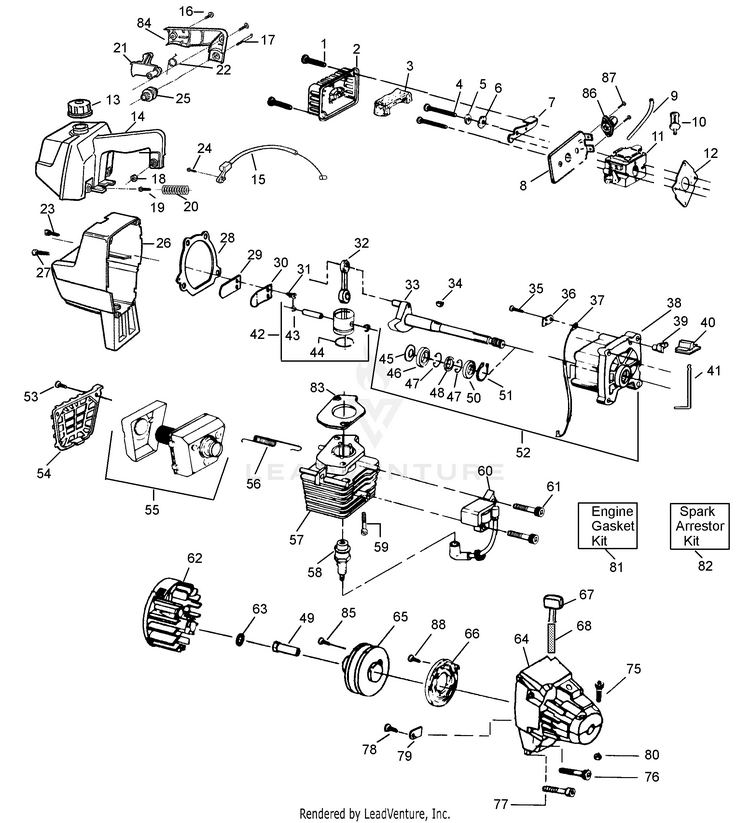

Power Unit

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter (New part number for this IPL) PLN-530038103
...
8
Air Filter Plate Type 1 PLN-530027527
...
8
Air Filter Plate Type 2 & 3 PLN-530037930
...
9
Fuel Line Kit - Fuel Line PLN-530069247
...
9
Fuel Line Kit - Return Line Type 2 & 3 PLN-530069238
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY (New part number for this IPL) PLN-545081825
...
11
Carburetor Type 2 & 3 (WA-219B) (New part number for this IPL) PLN-530069568
...
12
Carburetor Gasket (Included in Engine Gasket Kit, P/N 530-069276) PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Handle & Tank Ass'y. Type 1 PLN-530029552
...
14
Handle & Tank Ass'y. Type 2 & 3 (New part number for this IPL) PLN-530047102
...
15
Type 3 & 4 PLN-530037499
...
15
Throttle Cable Ass'y. Type 2 & 3 PLN-530037499
...
16
Screw PLN-530015805
...
17
Screw PLN-530015809
...
18
Nut PLN-530015807
...
19
Screw PLN-530015713
...
20
Rear Isolator Spring PLN-530027926
...
21
Throttle Trigger PLN-530027924
...
22
Throttle Spring PLN-530027925
...
23
SCREW PLN-530016386
...
24
Screw PLN-530015775
...
25
Isolator PLN-530024256
...
26
Shroud PLN-530027923
...
27
Screw PLN-530015771
...
28
Gasket (Included in Engine Gasket Kit, P/N 530-069276) PLN-530019154
...
29
Reed PLN-530027593
...
30
Reed Stop PLN-530027594
...
31
SCREW 6-19X.437 PLN-545227101
...
32
Connecting Rod Ass'y. PLN-530010960
...
33
Crankshaft Ass'y. (See Service Ref. 1) PLN-530010945
...
34
Flywheel Key PLN-530015126
...
35
Screw PLN-530015780
...
36
Switch Insulator PLN-530027546
...
37
Lead Wire PLN-530027547
...
38
Crankcase Ass'y. (Incl. 46,47,48 & 50) PLN-530014016
...
39
Switch Ramp PLN-530027545
...
40
Switch Button (New part number for this IPL) PLN-530038309
...
41
Switch Spring PLN-530027959
...
42
Piston Kit (Incl. 43,44 & pin) PLN-530069899
...
43
Piston Pin Retainer PLN-530015162
...
44
Piston Ring PLN-530025875
...
46
Inner Bearing PLN-530032103
...
47
Retaining Ring PLN-530015787
...
48
Crankshaft Seal PLN-530019158
...
49
Drive Coupling PLN-530027953
...
50
Outer Bearing PLN-530032102
...
51
Crankshaft Retaining Ring PLN-530015789
...
52
Crankcase & Crankshaft Ass'y. (Incl. 33,38 & 46-51) PLN-530014004
...
53
Screw PLN-530015717
...
54
Muffler Guard PLN-530027781
...
55
Muffler Kit PLN-530069310
...
56
Muffler Spring PLN-530036409
...
57
Cylinder (New part number for this IPL) PLN-530069626
...
58
Spark Plug Type 1 & 2 (CJ-14) (New part number for this IPL) PLN-530030077
...
58
Spark Plug Type 3 (RCJ-8Y) PLN-530030075
...
59
Screw PLN-530015239
...
60
Ignition Module Kit PLN-530039134
...
61
Screw PLN-530015816
...
62
Flywheel Ass'y. (New part number for this IPL) PLN-530047198
...
63
Washer PLN-530015828
...
64
Fan Housing PLN-530014044
...
65
Kit-Starter Pulley (Incl. 85) PLN-530071387
...
66
STARTER SPRING PLN-545008010
...
67
Starter Handle PLN-530027569
...
68
Rope Kit PLN-530069232
...
75
Screw PLN-530015767
...
76
Screw PLN-530015770
...
77
Screw PLN-530015769
...
78
Screw PLN-530015496
...
79
Pulley Retainer PLN-530027523
...
80
Locknut PLN-530015768
...
81
Engine Gasket Kit (Includes items 12,28,83) PLN-530069276
...
82
Spark Arrestor Kit PLN-952701612
...
83
GASKET CYL W/ ADHESIVE (Included in Engine Gasket Kit, P/N 530-069276) PLN-530019267
...
84
Handle Cover PLN-530027917
...
85
Screw - Pulley PLN-530016080
...
86
Primer Bulb Ass'y. Type 2 & 3 (New part number for this IPL) PLN-530038874
...
87
Screw - Primer Type 2 & 3 (New part number for this IPL) PLN-530016091
...
88
Screw - Starter Spring - Type 3 (New part number for this IPL) PLN-530015882
...
xx
Instruction Decal Type 1 PLN-530027970
...
xx
Instruction Decal Type 2 (Not a serviceable part) PLN-530037742
...
xx
Instruction Decal Type 3 (Not a serviceable part) (New part number for this IPL) PLN-530038843

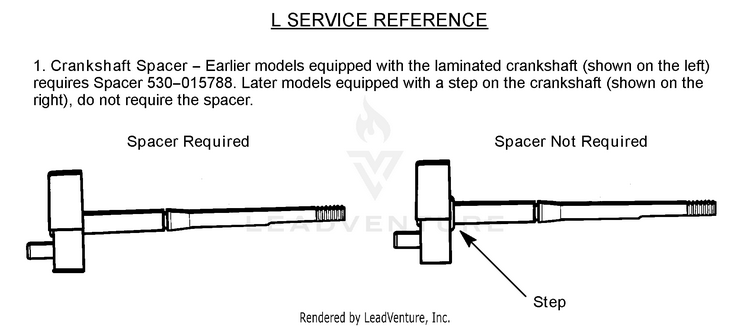

Service Reference

...
...
530015788
SPACER-BEARING PLN-530015788
