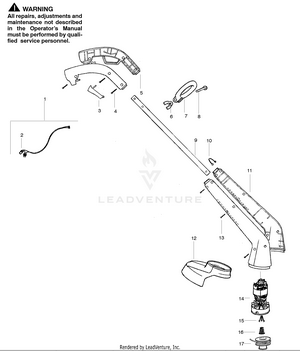

Weed Eater SG11 Weedeater Electric Trimmer

Model: SG11 Weedeater Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

Product Complete

...
...
1
Assy-Wire Harness (includes #2) PLN-530403587
...
2
Switch PLN-530402879
...
3
Trigger PLN-530054813
...
4
Screw PLN-530016120
...
5
Handle Set PLN-530054809
...
6
Nut PLN-530091373
...
7
Assist Handle PLN-530401988
...
8
Bolt PLN-530401989
...
9
Tube w/Decal PLN-530402545
...
10
Snap Button PLN-530403835
...
11
Housing Set PLN-530401971
...
12
Shield w/Limiter PLN-530401985
...
13
Screw PLN-530016120
...
14
Motor/Hub Ass'y (incl. #15,16) PLN-530404110
...
15
Retainer-Spool PLN-530401957
...
16
Spring-Return PLN-530401958
...
17
Accy-Spool w/ Line PLN-952701663
...
17
Operator Manual Not Shown PLN-530084129
...
17
Warning Decal Not Shown PLN-530402012
...
...
...
