product name

Weed Eater RB90 Cordless Blower

Model: RB90 Cordless Blower

Save
 Part Not Listed?Part Not Listed?
product name

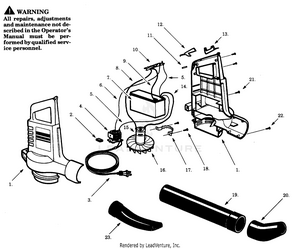

BLOWER ASSEMBLY

...
...
1
Blower Housing Set PLN-530400541
...
2
Spacer PLN-530350017
...
3
Cord Set PLN-530400546
...
4
Charger PLN-530400536
...
5
Leadwire Assy) Black (22 Ga. wire) PLN-530400548
...
6
Leadwire (22 ga) Red PLN-530400550
...
7
Battery PLN-530400535
...
8
Leadwire (14") Red (14 Ga wire) PLN-530400544
...
9
Leadwire (7") White (14 Ga. wire) PLN-530400552
...
10
Circuit Board PLN-530036586
...
11
Roll Pin PLN-530015102
...
12
Trigger Lock PLN-530402931
...
13
Trigger Switch PLN-530402856
...
14
Leadwire (12") Black (14 Ga. wire) PLN-530400542
...
15
Motor Assembly PLN-530014502
...
16
Impeller PLN-530036389
...
17
Motor Clamp PLN-530400540
...
18
Screw (2 required) PLN-530015533
...
19
Outlet Tube PLN-534352705
...
20
Nozzle PLN-534373405
...
21
Screw PLN-530340179
...
22
Screw PLN-530015994
...
23
Nozzle PLN-530053890
...
xx
Operator's Manual Not Shown. PLN-530068709
...
xx
Carton (Not a serviceable part) Not Shown. PLN-530061475
...
xx
Instruction Decal (Not a serviceable part) Not Shown. PLN-530036185
...
...
...
