Weed Eater PRO150 Gas Trimmer

Model: PRO150 Gas Trimmer

Save Part Not Listed?
product name

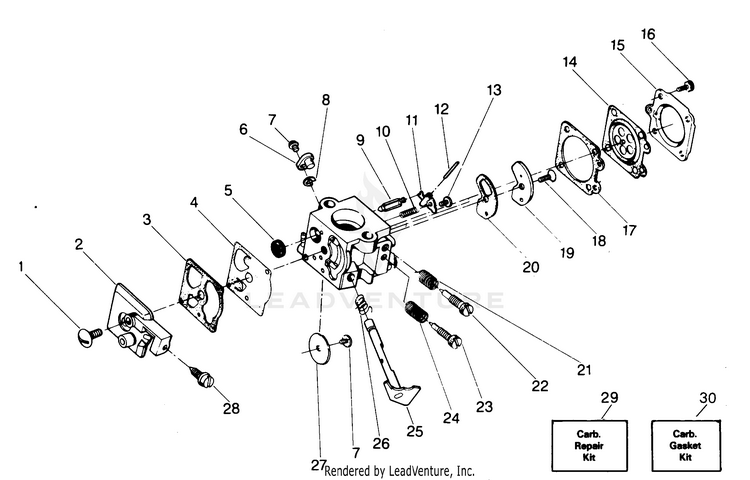

CARBURETOR BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017
...
2
Pump Cover Ass'y. (Inc.28) PLN-530035191
...
3
GASKET PLN-504130906
...
4
PUMP DIAPHRAGM PLN-504130807
...
5
Screen - Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
6
Swivel Lever Ass'y. PLN-530035192
...
7
Screw - Throttle Valve Included in Carburetor Kwik Repair Kit. PLN-530035015
...
8
Clip - Throttle Shaft PLN-530035007
...
9
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
10
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
11
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
12
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
13
Screw - Metering Lever Pin PLN-530035016
...
14
DIAPHRAGM PLN-503896701
...
15
Cover - Metering Diaphragm PLN-530035149
...
16
Screw Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
17
Gasket - Metering Diaphragm PLN-530035151
...
18
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
19
Plate - Circuit PLN-530035042
...
20
GASKET PLN-501781301
...
21
Spring - Hi Speed Needle PLN-530035036
...
22
H-NEEDLE PLN-501782201
...
23
Needle - Idle PLN-530035141
...
24
Spring - Idle Needle PLN-530035023
...
25
Shaft Assembly - Throttle PLN-530035192
...
26
Spring - Throttle Return PLN-530035138
...
27
Valve - Throttle PLN-530035133
...
28
Screw - Idle Adjustment PLN-530035156
...
29
Kit Carb - Kwik Repair Kit PLN-530035185
...
30
Gasket Diaphragm Kit PLN-530069844

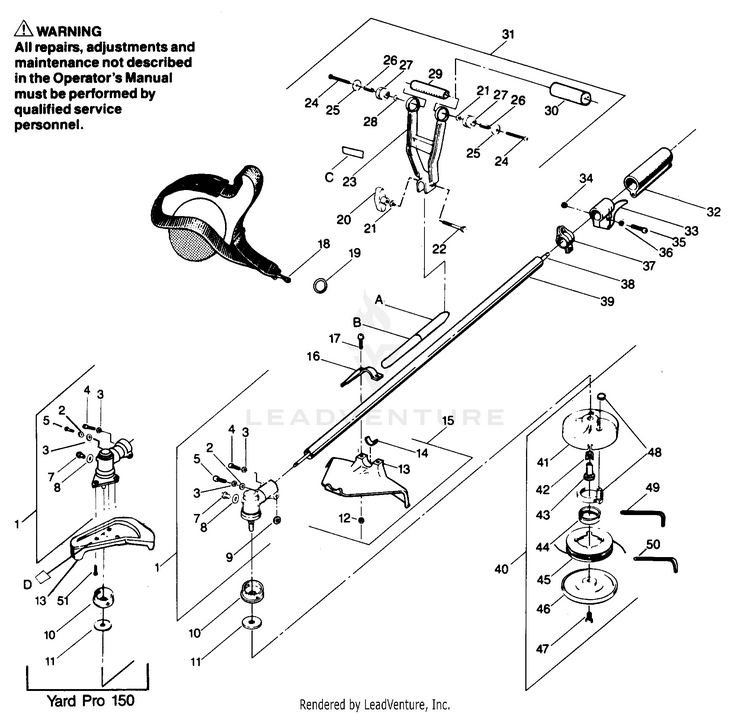

CUTTING HEAD, & DRIVE SHAFT

...
...
1
Pro150 PLN-530093968
...
1
YP150 PLN-530094495
...
2
Washer - 5mm - Flat - Gear Box - Index/Pinch Clamp PLN-530094206
...
3
Lockwasher - 5mm - Gear Box - Index/Pinch Clamp PLN-530094449
...
4
Screw - 5 x 12.5mm - Soc. Hd. - Gear Box - Index PLN-530094208
...
5
Screw - 5 x 25mm - Soc. Hd. - Gear Box - Pinch Clamp PLN-530094205
...
7
PRO150 PLN-530094209
...
7
YP150 PLN-530094485
...
8
PRO150 PLN-530094203
...
8
YP150 PLN-530094486
...
9
Washer - Spacer - Gear Box - Pinch Clamp - PRO150 PLN-530094207
...
10
Adaptor - Upper PLN-530093984
...
11
Adaptor - Lower PLN-530093985
...
12
Nut - 5mm - Shield - PRO150 Only PLN-530093981
...
13
PRO150 PLN-530093980
...
13
YP150 PLN-530094496
...
14
Spacer - Shield - PRO150 Only PLN-530093979
...
15
Shield Ass'y.(incl.#12, 13, 14, 16 & 17) PRO150 Only PLN-530093967
...
16
Bracket Shield - PRO150 Only PLN-530093978
...
17
Screw - 5 x 25mm - Shield PRO150 Only PLN-530093977
...
18
Shoulder Strap PLN-530094417
...
19
Key Ring - Shoulder Strap PLN-530092231
...
20
Knob - Handle PLN-530092059
...
21
Washer - Handle PLN-530015149
...
22
Screw - Handle - #1/4 - 20 x 1-3/4" PLN-530092061
...
23
Handle Antivibe PLN-530093960
...
24
Screw - #12 - 11 x 2" - Isolator Handle PLN-530015561
...
25
Cup - Isolator - Handle PLN-530024376
...
26
Spacer - Isolator Handle PLN-530025985
...
27
Isolator - Handle PLN-530024373
...
29
Center - Section - Handle PLN-530025986
...
30
Cushion - Handle PLN-530026009
...
31
Ass'y. - Antivibe Handle (Inc.23-30) PLN-530010764
...
32
Grip - Drive Shaft Hsg. PLN-530093956
...
33
Throttle Control Ass'y. PLN-530093958
...
34
Lock Nut - Hex - 5mm - Throttle Control PLN-530094210
...
35
Screw - 5 x 25mm Phil. PLN-530094294
...
36
Washer - Throttle Control PLN-530094206
...
37
Clamp - Shoulder Strap PLN-530093948
...
38
PRO150 PLN-530093945
...
38
YP150 PLN-530094443
...
39
PRO150 PLN-530093983
...
39
YP150 PLN-530094454
...
40
Cutting Head Assembly (Inc.41-49) PLN-530093954
...
41
Hub - Cutting Head PLN-530091656
...
42
Line Saver - Cutting Head PLN-530091425
...
43
Drive Adaptor - Cutting Head PLN-530091423
...
43
Spring - Cutting Head PLN-530091657
...
45
Spool w/Line - Cutting Head PLN-952701526
...
46
Cover - Cutting Head PLN-530091424
...
47
Screw - #3/8 - 16 x 7/8" - Cover PLN-530091662
...
48
Release Button (Incl. Lock Ring) PLN-530093602
...
49
Allen Wrench - Cutting Head PLN-530091663
...
50
Hex Wrench - 4mm PLN-530092258
...
51
Screw - YP150 Only PLN-530094487
...
A
Decal - Safety Label (Upper) PLN-530027432
...
B
Decal - Safety Label (Lower) PLN-530027433
...
C
Decal - Antivibe PLN-530026248
...
D
Decal - Warning Shield YP150 PLN-530027348
...
xx
PRO150 Not Shown. PLN-530066429
...
xx
YP150 Not Shown. PLN-530067099
...
xx
Carton Not Shown. PLN-530060773

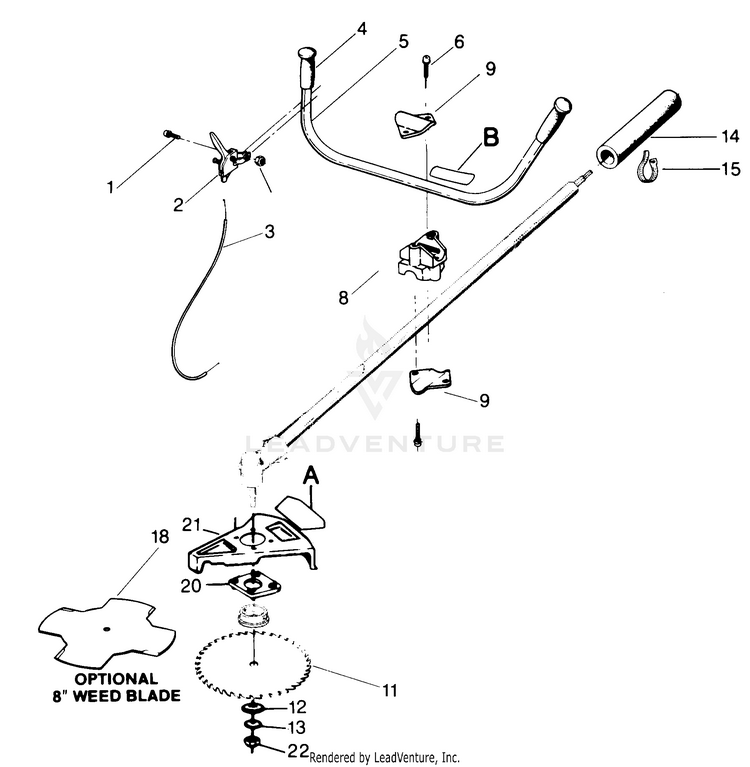

OPTI0NAL BRUSH BLADE ADAPTOR KIT

...
...
0
Brush Blade Adaptor Kit PLN-952701576
...
1
Screw - Phil. Hd. - 5 x 25mm.- Throttle Control PLN-530015774
...
2
Ass'y. - Throttle Lever PLN-530010959
...
3
Cable - Throttle PLN-530093955
...
4
Grip - Handlebar PLN-530093947
...
5
Handlebar - "U" PLN-530093946
...
6
Bolt - Clamp - Top PLN-530015791
...
7
Cover - Top - Clamp PLN-530093962
...
8
Clamp - Handlebar PLN-530012207
...
9
Cover - Bottom - Clamp PLN-530094572
...
11
Brush Blade - 10" PLN-952701547
...
12
washer PLN-530015792
...
13
Washer--Belleville PLN-530016240
...
14
Drive Shaft Pad PLN-530027675
...
15
Tie Strap PLN-530091426
...
16
Lockwasher - 10 PLN-530015328
...
17
Lockwasher - 10 PLN-530001642
...
18
Weed Blade - 8 inch - Optional PLN-952701546
...
20
Shield Retention Plate PLN-530027615
...
21
SHIELD PLN-530094633
...
22
Nut PLN-530015793
...
A
Decal - Blade Rotation (Not a serviceable part) PLN-530027749
...
B
Decal - Handlebar Warning PLN-530026229

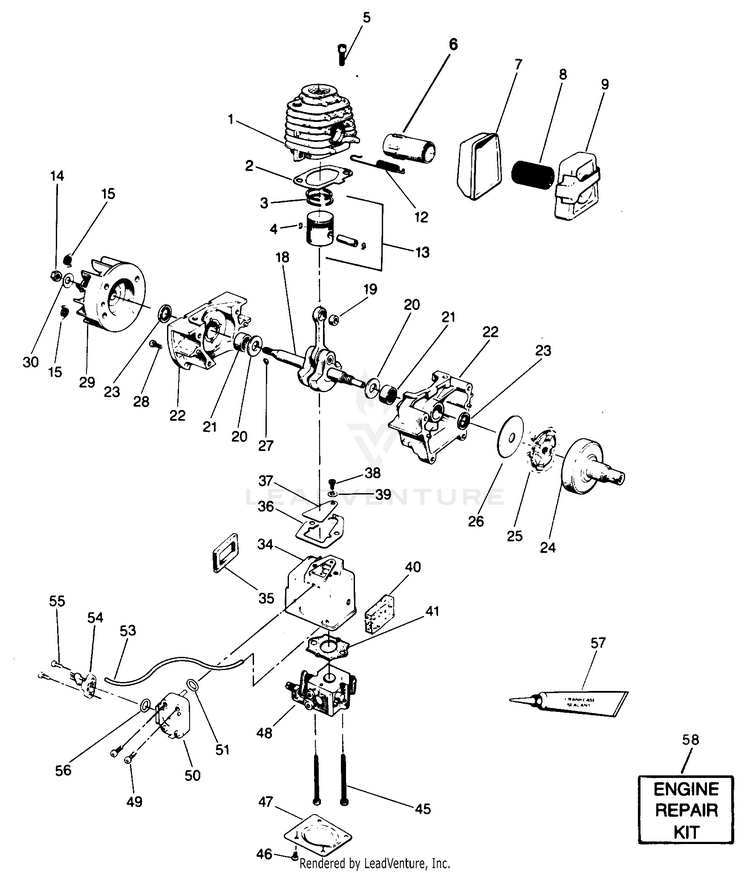

POWER UNIT

...
...
1
Model 1960 PLN-530012252
...
2
Engine Gasket Kit PLN-530069219
...
3
Ring - Piston - See Service Ref. 1. PLN-530026681
...
4
Retainer - Wrist Pin (PRO150 Only) PLN-530015162
...
5
Screw - #1/4 - 20 x 3/4" Hex Soc. Hd. - Cylinder PLN-530015239
...
6
Diffuser - Muffler PLN-530026949
...
7
Body - Muffler PLN-530026619
...
8
Screen - Spark Arresting PLN-530024364
...
9
Cover - Muffler PLN-530022286
...
12
Spring - Muffler Attachment PLN-530026621
...
13
Piston Kit (Inc.3,4,Pin) See Service Ref. 1 & 2. PLN-502069203
...
14
Nut - Flywheel PLN-530626605
...
15
Spring-Starter Dog PLN-530023817
...
18
Ass'y., Crankshaft & Rod - See Service Ref. 2 PLN-530010844
...
19
Bearing - Wrist Pin - See Service Ref. 2. PLN-530032092
...
20
Washer - Thrust - Crankcase PLN-530015351
...
21
Crankshaft Bearing PLN-530032029
...
22
Crankcase Ass'y. (Inc.21, 23 & Qty. 4 of 28) PLN-530010757
...
23
Seal - Crankcase PLN-530019059
...
24
Drum & Coupling Assembly PLN-530010803
...
25
Kit - Clutch Assembly (Incl. Clutch Washer) PLN-530069195
...
26
Kit - Clutch Washer PLN-530069196
...
27
Key - Flywheel PLN-530015126
...
28
Screw - #10 - 24 x 5/8" Fil. Hd. Crankcase PLN-530015168
...
29
Flywheel Assembly (Inc.15) PLN-530039114
...
30
Washer - Flywheel PLN-530015127
...
34
Ass'y. Carburetor Housing & Eyelet PLN-530010762
...
35
Seal - Carburetor Case PLN-530019105
...
36
Gasket-Carburetor Case to Crankcase PLN-530019108
...
37
Reed Valve PLN-530024438
...
38
Screw - #6 - 19 x 5/16" - Pan. Hd. - Reed Valve PLN-530015241
...
39
Washer - Reed Valve Screw PLN-530023367
...
40
Seal - Carb. Case (Sponge) PLN-530019135
...
41
Gasket - Carburetor PLN-530019157
...
45
Screw - #10 - 24 x 2-1/4" - Fil. Hd. - Carburetor PLN-530015566
...
46
Screw - #8 - 18 x 9/16" - Pan. Hd. - Carburetor Case Cover PLN-530015235
...
47
Cover - Carburetor Case PLN-530026047
...
48
Carburetor - WA - 149 - Cable PLN-530035190
...
49
Screw - #8 - 18 x 1",- Accumulator PLN-530015565
...
50
Accumulator Assembly (Inc.51 & 54) PLN-530010651
...
51
O-Ring (Orifice) PLN-530019131
...
53
Fuel Line - Carburetor PLN-530021055
...
54
Cap Assembly - Accumulator (Inc.56) PLN-530010677
...
55
Screw - #8 - 16 x 9/16" PLN-530015235
...
56
O-Ring (Accumulator Chamber) PLN-530019128
...
57
Sealant - Crankcase (Not supplied with unit) PLN-530030054

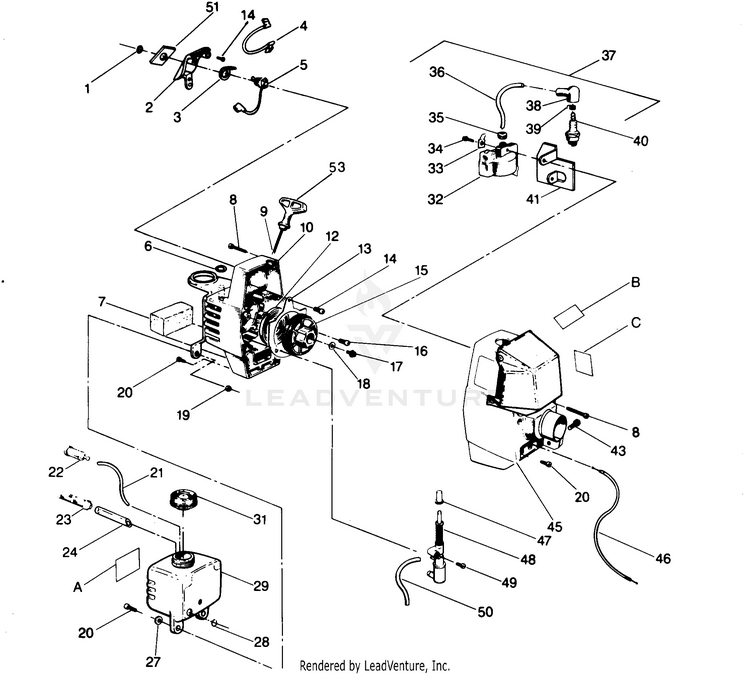

STARTER & SHROUD

...
...
1
Switch- Plate and Nut PLN-530002582
...
2
Housing Switch PLN-530026616
...
3
Washer - Grounding Switch PLN-530024569
...
4
Wire - Lead - Grounding Switch PLN-530039122
...
5
Kit - Grounding Switch (Inc.1,3,4,33) PLN-530069182
...
6
Bearing - Nyliner (Fan Housing) PLN-530026118
...
7
Air Filter PLN-530024371
...
8
Screw - #10 - 24 x 1-1/2" Fil. Hd. - Fan Housing Top PLN-530015376
...
9
Rope Kit PLN-530069232
...
10
Fan Housing Kit PLN-530069236
...
12
KIT STARTER SPRING PLN-545008009
...
13
Air Baffle PLN-530026035
...
14
Screw - #10 - 17 x 3/8" Fil. Hd. - Air Baffle PLN-530015598
...
15
Starter Pulley PLN-530026048
...
16
Screw - #10 - 24 x 7/16" - Air Baffle PLN-530015596
...
17
Screw PLN-530016141
...
18
Washer - #10 - Starter Pulley Screw PLN-530015123
...
19
Nut - #10 - 24 - Fuel Tank Bracket PLN-530001543
...
20
Screw - #10 - 24 x 5/8" Fil. Hd. - Fan Housing Bottom/Fuel Tank PLN-530015168
...
21
Line - Fuel Inlet PLN-530021052
...
22
Assy-Fuel Pickup PLN-530095646
...
23
Filter - Fuel (Inlet Line) PLN-530026109
...
24
Fuel Line - Tank to Accumulator PLN-530021054
...
27
Washer - Flat - Fuel Tank Bracket PLN-530015123
...
28
Clip - Retainer - Inlet Line - Fuel Tank PLN-530026178
...
29
Fuel Tank Assembly (Inc.21,22,23,24,31) PLN-530010761
...
31
Assy-Fuel Cap PLN-530014347
...
32
Kit Ignition Module PLN-530069181
...
33
Electrical Tab PLN-530025995
...
34
Screw PLN-530015816
...
35
Grommet - Plug Wire PLN-530024435
...
36
High Tension Lead Wire PLN-530039082
...
37
High Tension - Lead Assembly (Incl. #17, 18 & 19) PLN-502039103
...
xx
HIGH TENSION LEAD NLA PLN-530039103
...
38
Boot - Spark Plug PLN-530003934
...
39
Spark Plug Boot PLN-507475326
...
40
Spark Plug (CJ-14) PLN-530030077
...
41
Deflector - Air PLN-530026658
...
43
Bolt - #1/4 - 20 x 1" Hex - Pinch Clamp - Shroud PLN-530093802
...
45
Ass'y. - Shroud/Heat Shield PLN-530010763
...
46
Throttle Cable PLN-530093959
...
47
Injector Button PLN-530026032
...
48
Pump Assembly (Incl, #50) PLN-530010738
...
49
Screw - #10 - 14 x 1-3/16" - Air Baffle - Pump Mounting PLN-530015305
...
50
Line - Pump to Accumulator PLN-530021053
...
51
Plate--Indicating Switch PLN-530026741
...
A
Decal - Fuel Tank PLN-530026702
...
B
Decal - Starting Instructions PLN-530026697
...
C
Decal - Shroud (Left) PLN-530026626
