Weed Eater PL500 Gas Trimmer Type 3

Model: PL500 Gas Trimmer Type 3

Save Part Not Listed?
product name

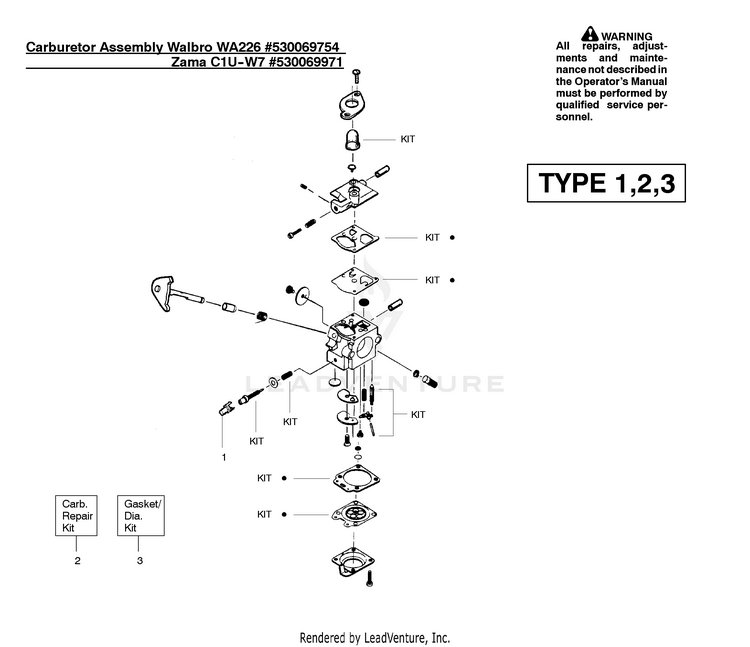

Carburetor Assembly (WT226) P/N 530069754, (Zama C1U-W70) P/N 530069971

...
...
1
Limiter Cap PLN-530038403
...
2
Carburetor Repair Kit Walbro (KIT = Indicates Contents) PLN-530069842
...
2
Carburetor Repair Kit Zama (KIT = Indicates Contents) PLN-530069969
...
3
Gasket Diaphragm Kit Walbro (DOT = Indicates Contents) PLN-530069844
...
3
Kit-Carburetor Minor Repair (DOT = Indicates Contents) PLN-530071442
...
530069754
Carburetor Assembly (WT226) PLN-530069754
...
530069971
Carburetor Assembly (Zama C1U-W70) PLN-530069971

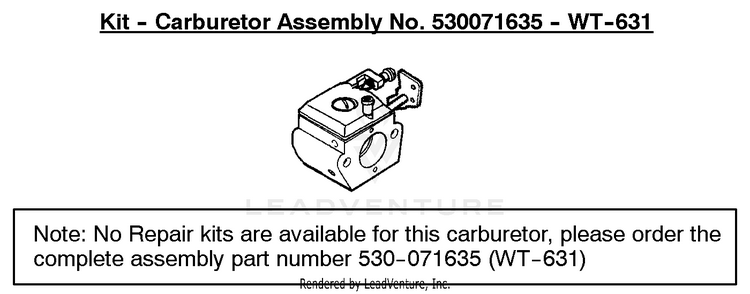

Carburetor Assembly (WT631) P/N 530071635

...
...
530071635
Kit-Carburetor Assembly PLN-530071635

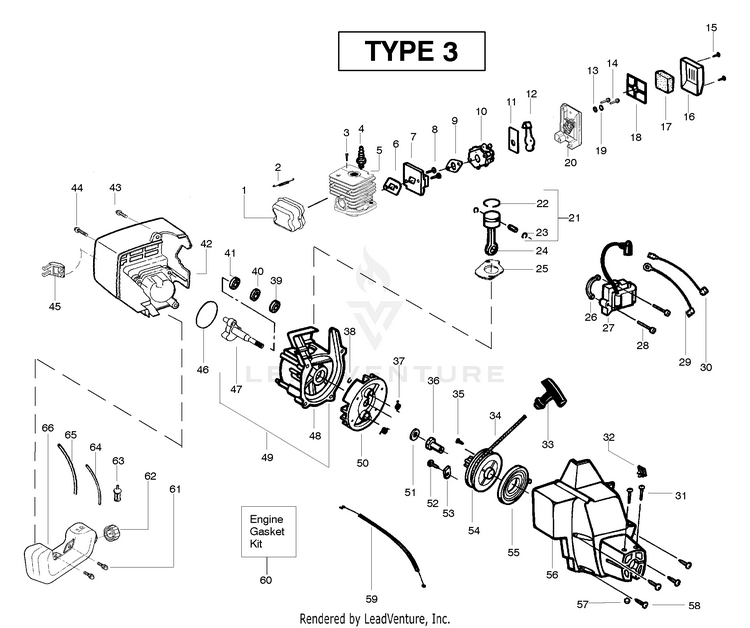

Engine Assembly Type 3

...
...
1
Kit - Muffler (incl. 2 & spark arrestor screen) PLN-530071396
...
2
Muffler Spring PLN-530042088
...
3
Screw-Cylinder PLN-530015953
...
4
Spark Plug (RCJ 6Y) PLN-952030249
...
5
Cylinder PLN-530012416
...
6
Gasket-Cyl/Carb.(kit) PLN-530071253
...
7
CARBURETOR ADAPTOR PLN-545030402
...
8
Screw PLN-530016014
...
9
Gasket-Carb.(kit) PLN-530071253
...
10
Kit-Carb. (C1U-W7) PLN-530069971
...
10
Kit-Carb. (WT-631) PLN-530071635
...
11
Plate-Choke Mounting PLN-530038747
...
12
Lever-Choke PLN-530038686
...
13
Washer PLN-530015254
...
14
Screw PLN-530016353
...
15
Screw PLN-530016349
...
16
Cover-Air Box PLN-530036568
...
17
Foam-Air Filter PLN-530036575
...
18
Plate-Air Filter Support PLN-530036569
...
19
Spacer-Choke PLN-530015852
...
20
Box-Air PLN-530052431
...
21
Kit-Piston (Incl. 22, 23) PLN-530071833
...
22
RING PISTON PLN-545154001
...
23
Retainer-Piston Pin PLN-530015162
...
24
CONNECTING ROD ASSY PLN-530049817
...
25
Gasket-Cylinder(kit) PLN-530071363
...
26
Spacer-Module PLN-530036145
...
27
Ignition Module PLN-530055160
...
28
Screw PLN-530015954
...
29
SWITCH, GROUND WIRE PLN-581425901
...
30
Assy-Leadwire PLN-530014663
...
31
Screw PLN-530015767
...
32
Kit-Switch PLN-530071356
...
33
Handle-Starter PLN-530027569
...
34
Kit - Rope PLN-530069232
...
35
Screw PLN-530016080
...
36
Coupling-Drive PLN-530027953
...
37
Spring-Starter Dog PLN-530023817
...
38
Retain. Ring-C'shaft PLN-530015941
...
39
Bearing-Outer PLN-530055728
...
40
Kit-C'case Seal PLN-530071615
...
41
Bearing-Inner PLN-530032125
...
42
Shroud PLN-530056547
...
43
Screw PLN-530015934
...
44
SCREW PLN-530016386
...
45
Guard-Muffler PLN-530054536
...
46
O-Ring-C'case(kit) PLN-530071253
...
47
Assy-Crankshaft PLN-530054753
...
48
Assy-Crankcase (Incl. 39-41) PLN-530071627
...
49
Assy-C'case & C'shaft (Incl. 38,47,48) PLN-530071360
...
50
FLYWHEEL ASSY PLN-545221701
...
51
Washer-Flat PLN-530015828
...
52
Screw PLN-530016224
...
53
Retainer-Pulley PLN-530053985
...
54
STARTER PULLEY KIT (Incl. 35) PLN-530071786
...
55
STARTER SPRING PLN-545008010
...
56
Assy-Fan Housing PLN-530014919
...
57
Locknut PLN-530015768
...
58
SCREW PLN-530016386
...
59
Kit-Throttle Cable PLN-530071548
...
60
Kit-Engine Gasket (Incl. 6,9,25,46) PLN-530071253
...
61
Retainer-Fuel Tank PLN-530016379
...
62
Assy-Fuel Cap PLN-530014347
...
63
Assy-Fuel Pickup PLN-530095646
...
64
Kit-Fuel Line PLN-530069247
...
65
Kit-Fuel Line PLN-530069216
...
66
FUEL TANK ASSY (Incl. cap,filter,lines) PLN-545103802

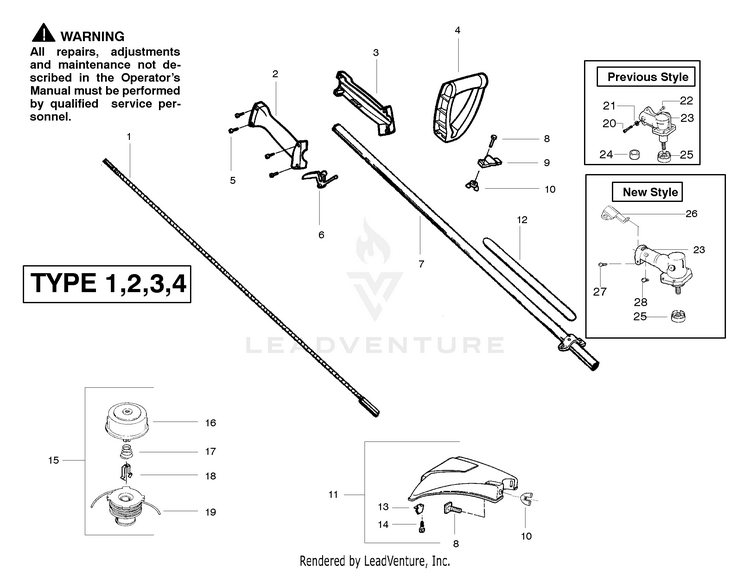

Handle And Shaft Assembly

...
...
1
Shaft-Flex-52" PLN-530095151
...
2
Throttle Hsg. (Right) PLN-530036515
...
3
Throttle Hsg. (Left) PLN-530036514
...
4
Assy-Assist Handle PLN-530055699
...
5
Screw-Throttle Hsg. PLN-530015957
...
6
Trigger Lever PLN-530036556
...
7
Assy-Drive Shaft ( Type 4 ) PLN-530071338
...
8
Bolt PLN-530015820
...
9
Clamp-Handle PLN-530094742
...
10
Nut PLN-530091373
...
11
Shield Kit Ass'y. PLN-530069779
...
12
Shaft Warning Decal PLN-530055350
...
13
Line Limiter PLN-530052285
...
14
Screw-Line Limiter PLN-530015805
...
15
Accy-Cutting Head Ass'y. (Incl. 16-19) PLN-952711550
...
16
Hub Ass'y. PLN-530095772
...
17
Spring-Return PLN-530053241
...
18
Retainer-Spool PLN-530401957
...
19
Spool w/Line PLN-952711551
...
20
Screw-Gear Box PLN-530016140
...
21
Lockwasher-Gear Box PLN-530001642
...
22
Screw-Gear Box/Shield PLN-530016141
...
24
Seal Sleeve PLN-530019235
...
25
Dust Cup (Type 4 ) PLN-530095814
...
26
Bracket PLN-530095812
...
27
Screw PLN-530016014
...
28
Screw PLN-530016371
...
xx
Operator Manual (Type 1) Not Shown PLN-530088828
...
xx
Operator Manual (Type 2) Not Shown PLN-530086923
...
xx
Operator Manual (Type 3,4) Not Shown PLN-530163445
...
xx
Decal-Start Instruction Not Shown PLN-530054864

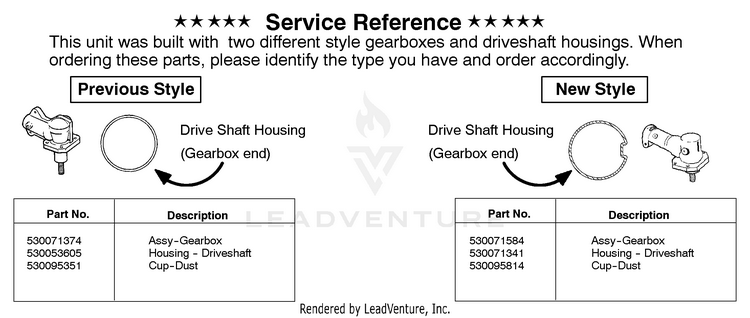

Service Reference Type 1,2,3

...

No Parts Available for this Schematic
