Weed Eater PE550 Gas Trimmer

Model: PE550 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

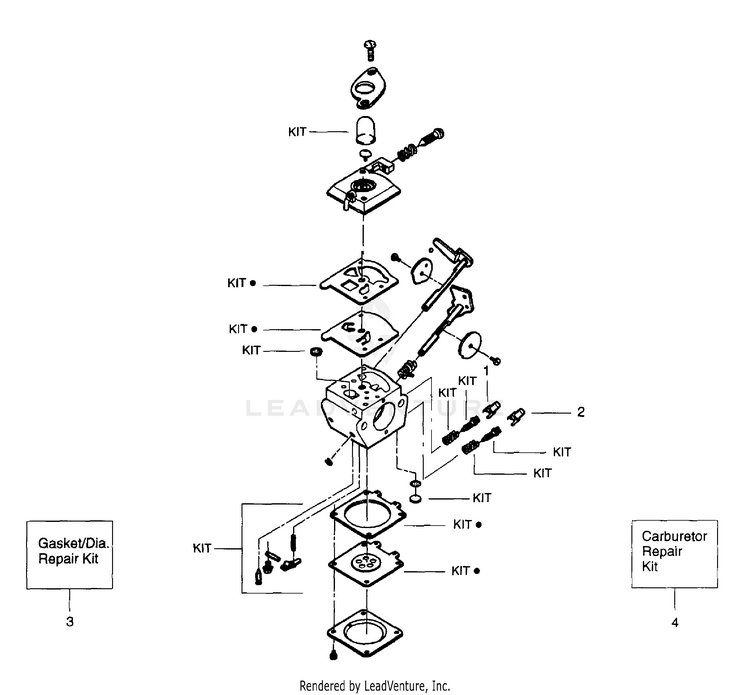

Carburetor Assembly

...
...
1
Limiter Cap-Low PLN-530038317
...
2
Limiter Cap-High PLN-530038318
...
3
Gasket/Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
4
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069832
...
xx
Carburetor w/Choke Type 3 (WT-630) PLN-530071634

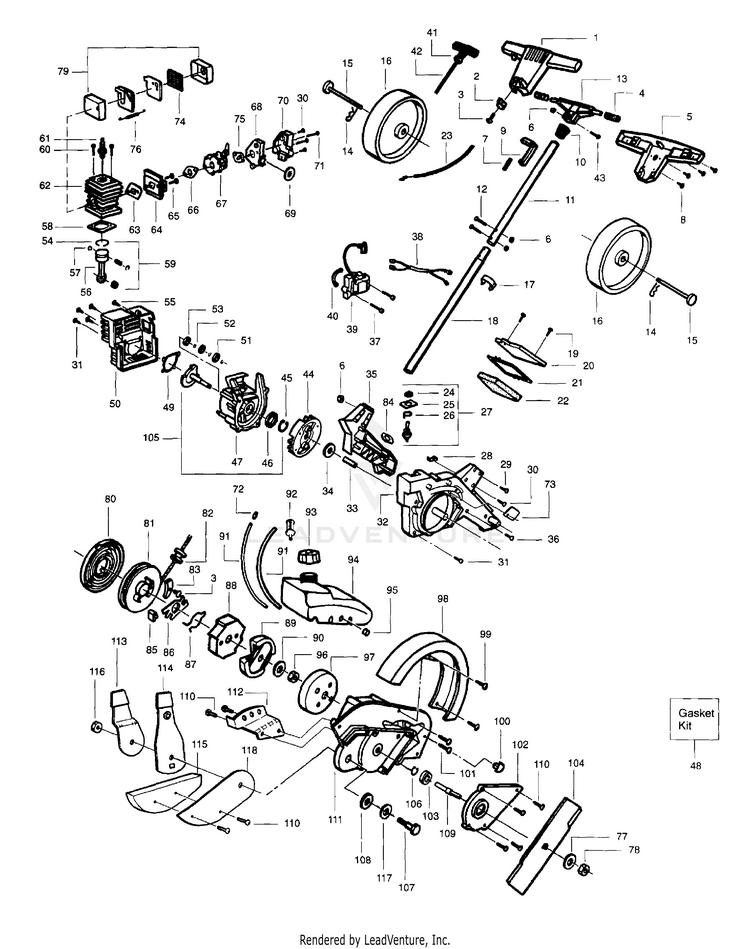

Gas Edger Assembly

...
...
1
Upper Handle PLN-530036677
...
2
Handle Eyelet PLN-530036985
...
3
Screw PLN-530015241
...
4
Spring Isolator PLN-530036981
...
5
Lower Handle PLN-530036676
...
6
Locknut PLN-530015768
...
7
Throttle Spring PLN-530036982
...
8
Screw PLN-503210719
...
9
Throttle Trigger PLN-530036673
...
10
Handle Spring PLN-530036984
...
11
Upper Handle Tube PLN-530095104
...
12
Bolt - Shoulder Tube PLN-530015999
...
13
Coupling - Handle PLN-530036983
...
14
Pin Bridge PLN-530016002
...
15
Axle Pin PLN-530015997
...
16
Rear Wheel PLN-530095126
...
17
Clamp - Cable PLN-530015982
...
18
Lower Handle Tube PLN-530095103
...
19
Screw PLN-530015983
...
20
Air Filter Cover PLN-530036631
...
21
Gasket - Cover PLN-530036837
...
22
Air Filter Foam PLN-530036664
...
23
Throttle Cable PLN-530036674
...
24
Boot w/Nut PLN-530016038
...
25
Assy-Gound Switch PLN-530053920
...
26
Grounding Terminal PLN-530037066
...
27
Switch Grounding Assy (Incl. 24 - 26) PLN-530014707
...
28
Speed Nut PLN-530015922
...
29
Screw PLN-530015774
...
30
Screw PLN-530015886
...
31
SCREW PLN-530016386
...
32
Fan Housing PLN-530038299
...
33
Flywheel Spacer PLN-530036927
...
34
Washer - Flat PLN-530015828
...
35
Axle Cover PLN-530038301
...
36
Screw PLN-530015940
...
37
Screw PLN-530015954
...
38
Switch Wire Ass'y. PLN-530014655
...
39
Ignition Module PLN-530039146
...
40
Spacer - Ignition Module PLN-530036145
...
41
Starter Handle PLN-530027569
...
42
Rope Kit PLN-530069421
...
43
Screw PLN-530015774
...
44
FLYWHEEL ASSY PLN-545221701
...
45
Retaining Ring - C'case PLN-530015945
...
46
Seal Crankcase PLN-530019179
...
47
Crankcase Ass'y. (Incl. 45, 46, 51 & 52) PLN-530014861
...
48
Gasket Kit (Incl. 21,49,58,63,66,& 75) PLN-530069913
...
49
Gasket - Crankcase/Shroud PLN-530019181
...
50
Shroud PLN-530036555
...
51
Outer Bearing PLN-530032124
...
52
Retaining Ring - C'shaft PLN-530015941
...
53
Inner Bearing PLN-530032125
...
54
RING PISTON PLN-545154001
...
55
Screw PLN-530015934
...
56
Connecting Rod Ass'y. (Incl. 53) PLN-530069615
...
57
Piston Pin Retainer PLN-530015162
...
58
Gasket - Cylinder PLN-530019223
...
59
Piston Kit (Incl. 54) PLN-530069987
...
60
Screw PLN-530015953
...
61
Spark Plug PLN-503235112
...
62
Cylinder PLN-530012416
...
63
Gasket - Cylinder/Garb Adaptor PLN-530019243
...
64
Adapter-Carb. PLN-530057618
...
65
Screw PLN-530016014
...
66
Carb. Gasket PLN-530019194
...
67
Carburetor w/Choke Type 3 (WT-630) PLN-530071634
...
68
Air Box Base PLN-530036626
...
69
Foam Seal PLN-530019190
...
70
Airbox Cover PLN-530036622
...
71
Screw PLN-530015887
...
72
Fuel Line Fitting PLN-530023877
...
73
Fuel Line Retainer PLN-530038308
...
74
Muffler Screen PLN-530036180
...
75
Gasket - Bracket to Carb. PLN-530019144
...
76
Muffler Spring PLN-530016197
...
77
Washer - Belleville PLN-530016281
...
78
Nut PLN-530016032
...
79
Muffler Kit (Incl. 73 - 78) PLN-530069989
...
80
KIT STARTER SPRING PLN-545008006
...
81
Starter Pulley Kit (Incl. 3, 83 & 85) PLN-530069418
...
82
Eyelet PLN-530037224
...
83
Rope Retainer PLN-530036679
...
84
Gasket - Tube PLN-530019199
...
85
STARTER DOG & SPRING ASSEMBLY PLN-530054061
...
86
Starter Cam PLN-530042073
...
87
Starter Dog Wire PLN-530042072
...
88
Starter Cup PLN-530036922
...
89
Clutch Ass'y. PLN-530014832
...
90
Washer - Flywheel PLN-530015127
...
91
Fuel Line Kit (Incls. Vent Line) PLN-530069599
...
92
Assy-Fuel Pickup PLN-530095646
...
93
Fuel Cap Ass'y. PLN-530014347
...
94
FUEL TANK ASSY PLN-580236101
...
95
Isolator - Crankcase (Fuel Tank) PLN-530036792
...
96
Nut PLN-530626605
...
97
Drum Clutch PLN-530036665
...
98
Front Shield PLN-530095082
...
99
Screw PLN-530015843
...
100
Dustplug PLN-530036935
...
101
Screw PLN-530015770
...
102
Bearing Holder Ass'y. PLN-530036934
...
103
Washer - Thrust PLN-530016042
...
104
Blade PLN-530095086
...
105
C'case & C'shaft Ass'y. (Incl. 45 - 48, & 51 - 53) PLN-530071625
...
106
Retainer Ring (Flat) PLN-530037625
...
107
Shoulder Bolt PLN-530016275
...
108
Washer - Bolt Adjust PLN-530016040
...
109
Shaft - Output PLN-530095070
...
110
Screw PLN-530015814
...
111
Gear Box Ass'y. PLN-530053626
...
112
Back Plate PLN-530053544
...
113
Lever Limiter PLN-530053502
...
114
Lever Adjustment Ass'y. PLN-530053504
...
115
Foot PLN-530095628
...
116
Nut - Swing Arm PLN-530016063
...
117
Wave Washer PLN-530016280
...
118
Swing Arm PLN-530053501
...
xx
Operator Manual Not Shown PLN-530087320
...
xx
Blade Shield Decal (Not a serviceable part) Not Shown PLN-530-036658
...
xx
Hex Wrench 5/32 Not Shown PLN-530031159
...
...
...
