Weed Eater PE550 Gas Edger Type 3

Model: PE550 Gas Edger Type 3

Back To Assemblies

Save Part Not Listed?
product name

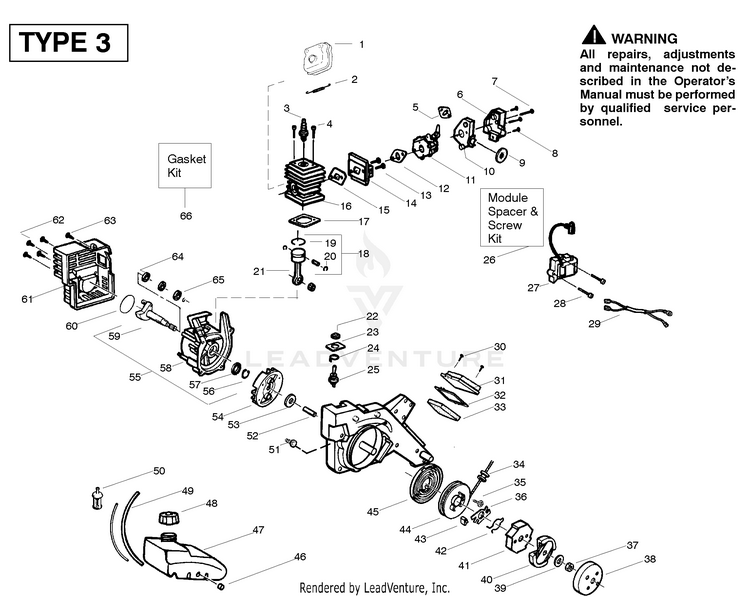

Engine Type - 3

...
...
1
Kit-Muffler (incl.#2) PLN-530071396
...
2
Spring-Muffler PLN-530042088
...
3
Plug-Spark (RCJ-6Y) PLN-952030249
...
4
Screw PLN-530015953
...
5
Gasket-Carb/Bracket(kit) PLN-530071611
...
6
Cover-Air Box PLN-530036622
...
7
Screw PLN-530015887
...
8
Screw PLN-530015886
...
9
Seal-Foam (kit) PLN-530071611
...
10
Base-Air Box PLN-530036626
...
11
Kit-Carb. (Wt-630) PLN-530071634
...
12
Gasket-Carb.(kit) PLN-530071611
...
13
Screw PLN-530016014
...
14
Adapter-Carb. PLN-530057618
...
15
Gasket-Cyl./Carb. (kit) PLN-530071611
...
16
Cylinder PLN-530012482
...
17
Gasket-Cyl. (kit) PLN-530071611
...
18
Kit-Piston (incl.19,20) PLN-530071476
...
19
PISTON RING PLN-545154009
...
20
Retainer-Pin PLN-530015162
...
21
CONNECTING ROD ASSY PLN-530049817
...
22
Boot-Switch w/nut PLN-530016038
...
23
Assy-Gound Switch PLN-530053920
...
24
Terminal-Grounding PLN-530037066
...
25
Assy-Gound Switch (incl. 22-24) PLN-530053920
...
26
Kit-Mod. spacer/screw PLN-530071731
...
27
Module-Ignition PLN-530039163
...
28
Screw PLN-530016357
...
29
Assy-Switch Wire PLN-530014655
...
30
Screw PLN-530015983
...
31
Cover-Air Filter PLN-530057612
...
32
Gasket-Cover (kit) PLN-530071611
...
33
Foam-Air Filter PLN-530057034
...
34
Eyelet PLN-530037224
...
35
Screw PLN-530015882
...
36
Cam-Starter PLN-530042073
...
37
Nut PLN-530626605
...
38
Drum-Clutch PLN-530036665
...
39
Washer-Flywheel PLN-530015127
...
40
Assy-Clutch PLN-530014832
...
41
Cup-Starter PLN-530036922
...
42
Wire-Starter Dog PLN-530042072
...
43
Dog-Starter PLN-530027162
...
44
Kit-Starter Pulley (incl.35) PLN-530069418
...
45
KIT STARTER SPRING PLN-545008006
...
46
ISOLATOR PLN-545132401
...
47
FUEL TANK ASSY (incl. 48,49,50) PLN-580236101
...
48
Assy-Fuel Cap PLN-530014347
...
49
Kit-Fuel Line PLN-530069599
...
50
Assy-Fuel Pick-up PLN-530095646
...
51
Clip-Pine Tree PLN-530057308
...
52
Spacer-Flywheel PLN-530036927
...
53
Washer-Flat PLN-530015828
...
54
FLYWHEEL ASSY PLN-545221701
...
55
Assy-C/shaft & C/case (incl. 56,58,59) PLN-530071728
...
56
Retainer-C'shaft PLN-530015941
...
57
Kit-Crankcase Seal PLN-530071615
...
58
Assy-C'case (incl.56,64,65) PLN-530071627
...
59
Assy-Crankshaft PLN-530014864
...
60
O-ring-c'case/shrd (kit) PLN-530071363
...
61
Shroud PLN-530057607
...
62
Screw PLN-530016386
...
63
Screw PLN-530016349
...
64
Bearing-Inner PLN-530032125
...
65
Bearing-Outer PLN-530055728
...
66
Kit Gasket (incl.5,9,12,15,17,32,60) PLN-530071611
