Weed Eater PE225 Electric Edger

Model: PE225 Electric Edger

Save
 Part Not Listed?Part Not Listed?
product name

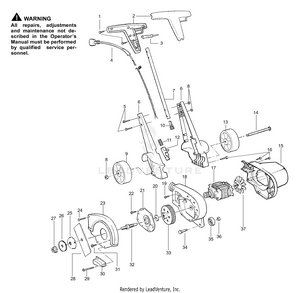

Edger Assembly

...
...
1
SCREW PLN-534222402
...
2
Handle Set PLN-530402925
...
3
Trigger Switch Lever PLN-530402860
...
4
Harness/Power Cord Ass'y. PLN-530403135
...
5
Screw PLN-530402888
...
6
Rear Housing PLN-530402924
...
7
Handle Tube PLN-530402868
...
8
Nut PLN-530403094
...
9
Rear Wheel PLN-530095088
...
10
Protector Harness PLN-530402885
...
11
Spring Slide PLN-530402877
...
12
Slide Release PLN-530402871
...
13
Rear Wheel PLN-530095088
...
14
Assy-Rear Axle PLN-530402876
...
15
Motor Housing PLN-530402857
...
16
SCREW PLN-534222402
...
17
Assy-Motor PLN-530402866
...
18
Deck Frame Ass'y. PLN-530403878
...
19
Screw PLN-530016332
...
20
Washer PLN-530016247
...
21
Bearing Holder Ass'y. PLN-530402912
...
22
Screw PLN-530016332
...
23
Blade Shield PLN-530402859
...
24
Screw PLN-530016243
...
25
Spring-Clutch Type 1 PLN-530402971
...
25
Spring-Clutch Type 2 PLN-530403499
...
26
KIT PLN-530071344
...
26
Washer-Cup Type 2 PLN-530403500
...
27
Nut-Blade Type 1 PLN-530402954
...
27
Nut-Blade Type 2 PLN-530016293
...
28
Blade PLN-952701699
...
29
Screw PLN-530016227
...
30
Edge Guide PLN-530402865
...
31
Screw PLN-530016223
...
32
Shaft Type 1 PLN-530402862
...
32
Shaft Type 2 PLN-530403498
...
33
Drive Gear PLN-530402892
...
34
Bolt PLN-530402907
...
35
Front Roller PLN-530402970
...
36
Nut PLN-530016245
...
37
Fan Motor PLN-530403064
...
xx
Operator Manual Not Shown PLN-530163866
...
xx
Decal-Blade Warning Not Shown PLN-530402961
...
xx
Decal-Warning Nameplate Type 1 Not Shown PLN-530402883
...
xx
Decal-Warning Nameplate Type 2 Not Shown PLN-530054370
...
...
...
