Weed Eater LT17 Gas Trimmer

Model: LT17 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

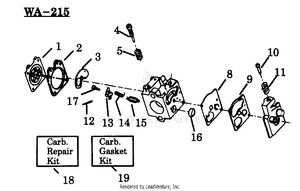

CARBURETOR WA-215

...
...
1
DIAPHRAGM PLN-503896701
...
2
Gasket-Metering Diaphragm PLN-530035011
...
3
Circuit Plate Gasket PLN-530035211
...
4
Mixture Needle PLN-530035212
...
5
Needle Spring-Low Speed PLN-530035293
...
8
PUMP DIAPHRAGM PLN-504130807
...
9
GASKET PLN-504130906
...
10
Idle Speed Screw PLN-530035203
...
11
Spring PLN-501667801
...
12
Pin PLN-505520125
...
13
Metering Lever PLN-505520127
...
14
Metering Lever Spring PLN-530037330
...
15
Inlet Needle Valve PLN-530035016
...
16
Fuel Inlet Screen PLN-530035178
...
17
Metering Lever Pin Screw PLN-530035016
...
18
Carb. Kwik Repair Kit (Inc. 1,2,3,8,9,12, 13,14,15,16,17) PLN-530035264
...
19
Gasket Diaphragm Kit PLN-530069844

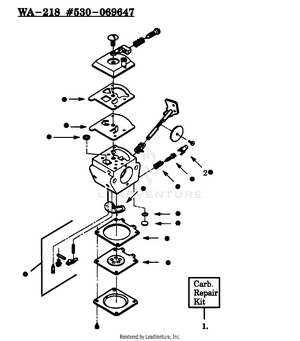

CARBURETOR WA-218

...
...
1
Fuel Inlet Screen PLN-530035300
...
2
Limiter Cap PLN-530038404

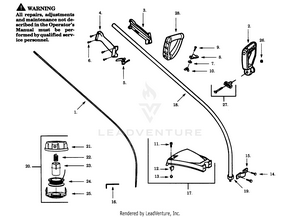

DRIVE SHAFT & CUTTING HEAD

...
...
1
Drive Shaft PLN-530094671
...
2
Handle PLN-530010957
...
3
Throttle Hsg. (Left) PLN-530036514
...
4
Throttle Hsg. (Right) PLN-530036515
...
5
Throttle Lever PLN-530036556
...
6
Screw PLN-530015957
...
7
Washer-Handle PLN-530092062
...
8
Clamp-Handle PLN-530094742
...
9
Bolt-Handle PLN-530015820
...
10
Wing Nut-Handle PLN-530091373
...
11
Screw-Line Limiter PLN-530015337
...
12
Line Limiter PLN-530094570
...
13
Nut PLN-530403094
...
14
Screw-Shield PLN-530016107
...
15
Bracket Shield PLN-530029373
...
16
Hex Wrench (5/32) PLN-530031159
...
17
Shield Kit Ass'y. (Incl. 11-14) PLN-530069299
...
18
Drive Shaft Hsg., LT7000 PLN-530094874
...
18
ASSY DRIVESHAFT 45" KIT PLN-530095719
...
19
Dust Cup PLN-530094543
...
20
TRIMMY HIT JR-5/16 (Incl. 21-25) PLN-695000394
...
21
Hub Ass'y. PLN-530094875
...
22
Spring PLN-530094830
...
23
Release Button PLN-530094827
...
24
Spool w/Line PLN-952701619
...
25
Cover PLN-530094828
...
26
Nut-Handle PLN-530015197
...
27
HANDLE KIT PLN-530069347
...
28
Assy-Assist Handle PLN-530055699
...
0
Carton Contents Bag, LT7000 Not Shown. PLN-530047065
...
0
Carton Contents Bag, LT17 Not Shown. PLN-530047328
...
0
Carton Contents Bag, LT7000 Type 1 & 2 Not Shown. PLN-530081793
...
0
Carton Contents Bag, LT7000 Type 3 Not Shown. PLN-530083152
...
0
Carton Contents Bag, LT7000 French/English Type 3 Not Shown. PLN-530082384
...
0
Carton Contents Bag, LT17 Not Shown. PLN-530083394
...
0
Carton Contents Bag, LT7000 English only Not Shown. PLN-530029159
...
0
Carton Contents Bag, LT7000 French/English Not Shown. PLN-530029164
...
0
Carton Contents Bag, LT17 Not Shown. PLN-530038907
...
0
Carton Contents Bag, LT7000 French Not Shown. PLN-530038229
...
0
Carton Contents Bag, LT7000,LT17 Tri/Lingual Not Shown. PLN-530047436

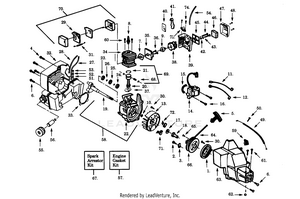

POWER UNIT

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw-Pulley PLN-530015775
...
3
Retainer-Pulley PLN-530027523
...
4
Screw-Shrd./Fan Hsg. PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Gasket - Cylin./Carb. PLN-530019233
...
8
Spark Plug PLN-530030075
...
9
Gasket-Carb. PLN-530019194
...
10
Retainer-C'Case PLN-530015945
...
11
Lead Wire PLN-530014663
...
12
SWITCH, GROUND WIRE PLN-581425901
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530039163
...
15
Spacer-Ignition Mod. PLN-530036145
...
16
Screw-Ignition Mod. PLN-530015954
...
17
Washer-Flysheel PLN-530015149
...
18
Drive Coupling PLN-530027953
...
19
Crankshaft Ass'y. (Incl 10 & 23-25) PLN-530014532
...
20
Connecting Rod Ass'y. PLN-530069615
...
21
Piston Ring PLN-530036404
...
22
Crankcase Ass'y. PLN-530014861
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retain. Ring-C'shaft PLN-530015945
...
27
Fuel Line-Prim.Tnk. PLN-530069216
...
28
Fuel LIne-Carb./Tnk. PLN-530069247
...
29
Muffler Baffle-Exit PLN-530038602
...
30
Screw-Flywheel PLN-530015882
...
31
Muffler Spring PLN-530016197
...
32
Shroud & Tank Assy., LT7000 Type 1 PLN-530014857
...
32
Shroud & Tank Assy., LT17 & LT7000 Type 2 PLN-530047099
...
33
Gasket-C'case PLN-530019181
...
34
CYLINDER PLN-530012353
...
35
Kit-Carb. Adaptor PLN-530069769
...
36
Screw PLN-530016014
...
37
Gasket-Cylinder PLN-530019223
...
38
CARBURETOR PLN-530035308
...
38
CARBURETOR PLN-530069647
...
39
Air Box, LT7000 Type 1 PLN-530037308
...
39
Air Box, LT17 & LT7000 Type 2 PLN-530037969
...
40
Choke Plate PLN-530037326
...
41
Choke Shutter PLN-530038102
...
42
Wave Washer PLN-530015254
...
43
Choke Spacer PLN-530015852
...
44
Screw-Carb. PLN-530015887
...
45
Filter Plate PLN-530037413
...
46
Air Filter Foam PLN-530037331
...
47
Air Filter Cover PLN-530037292
...
48
Screw PLN-530015957
...
49
Assy Throttle Cable PLN-530071548
...
50
Screw-Carb. Adaptor PLN-530015814
...
51
Check Valve PLN-530026119
...
52
Element PLN-530029717
...
53
Retainer PLN-530029696
...
54
Fuel Line-Prim./Carb. PLN-530069571
...
55
Fuel Cap Ass'y. PLN-530014347
...
56
Assy-Fuel Pickup PLN-530095646
...
57
Gasket-Cylind./Carb. (Incl. 7,9,33,37) PLN-530069616
...
58
C'case & C'shaft Assy. (Incl. 10,19,22-26) PLN-530014729
...
59
Switch-Momentary PLN-530071356
...
60
Screw-Cylinder PLN-530015953
...
61
Screw-Pinch Clamp PLN-530016072
...
62
Locknut-Pinch Clamp PLN-530015768
...
63
Fan Housing PLN-530014919
...
64
Rope Kit PLN-530069232
...
65
Screw-Rope Retain. PLN-530016080
...
66
STARTER PULLEY KIT PLN-530071786
...
67
Spark Arrestor Kit PLN-530069380
...
68
Piston Pin Retainer PLN-530015162
...
69
Piston Kit (Incl. 21,68 & Pin) PLN-530069621
...
70
Muffler Kit PLN-530069660
...
71
Starter Dog PLN-530029939
...
72
Spring - Starter Dog PLN-530047570
...
73
Primer Bulb Ass'y. LT17 & LT7000 Type 2 PLN-530038874
...
74
Screw-Type II PLN-530015780
...
...
...
