Weed Eater HT22 Electric Hedgetrimmer

Model: HT22 Electric Hedgetrimmer

Save Part Not Listed?
product name

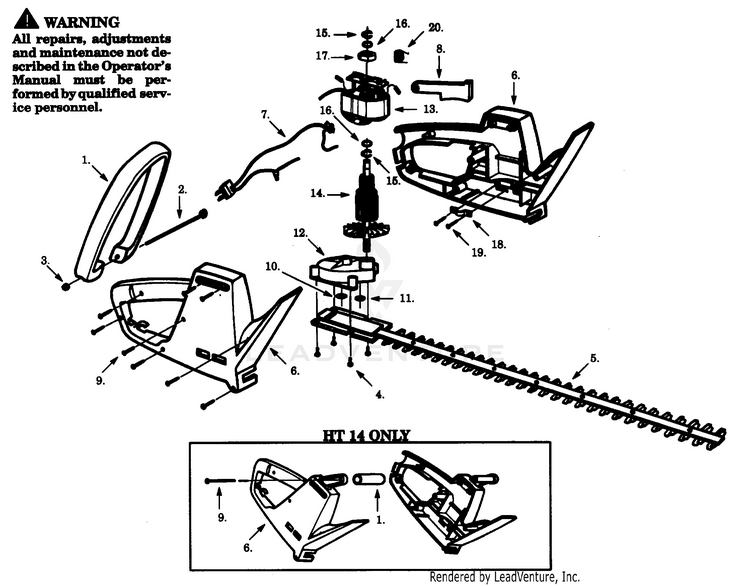

ASSEMBLY

...
...
1
MODEL HT14 PLN-534101430
...
1
MODELS HT17, HT19, HT22 PLN-530401058
...
2
Screw-Handle PLN-534101450
...
3
Locknut-Handle PLN-534235800
...
4
Screw-Blade PLN-534101640
...
5
Blade Ass'y. - 14" PLN-530036312
...
5
Blade Ass'y. - 17" PLN-530036313
...
5
Blade Ass'y. - 19" PLN-530036316
...
5
Blade Ass'y. - 22" PLN-530036317
...
6
MODEL HT14 PLN-534101210
...
7
Switch/Plug Ass'y. PLN-530402073
...
8
Trigger Switch PLN-534101380
...
9
Screw-Housing PLN-534184700
...
11
Drive Washer PLN-534812100
...
13
Field Ass'y. PLN-534100680
...
14
Armature Ass'y. PLN-530036407
...
15
Retaining Ring PLN-530036314
...
16
Washer PLN-534228804
...
17
Bearing PLN-534101130
...
18
Clamp PLN-534101120
...
19
Screw PLN-530015476
...
20
Spring-Brush PLN-534036198
...
xx
Operator Manual Not Shown. PLN-530083705
...
xx
HT14 Not Shown. PLN-530400908
...
0
HT17 Not Shown. PLN-530400909
...
0
HT19 Not Shown. PLN-530400910
...
0
HT22 Not Shown. PLN-530400911
...
0
French/English Not Shown. PLN-530036634
