Weed Eater HP22 Gas Trimmer

Model: HP22 Gas Trimmer

Save Part Not Listed?
product name

Carburetor Assembly (WA199) P/N 530035259

...
...
1
DIAPHRAGM Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-503896701
...
2
Metering Diaphragm Gasket Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-530035151
...
3
GASKET Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin Included in Carb. Kwik Repair Kit PLN-505520125
...
11
Metering Lever Included in Carb. Kwik Repair Kit PLN-505520127
...
12
Metering Lever Spring Included in Carb. Kwik Repair Kit PLN-530035188
...
13
Needle Included in Carb. Kwik Repair Kit PLN-503117001
...
14
Inlet Screen Included in Carb. Kwik Repair Kit PLN-530035178
...
15
PUMP DIAPHRAGM Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-504130807
...
16
GASKET Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-504130906
...
17
Carb. Kwik Repair Kit PLN-530035260
...
18
Carb. Gasket/Diaphragm Kit PLN-530035185
...
530035259
KIT CARBURETOR ASSY PLN-545081825

Carburetor Assembly (WA207/207A) P/N 530035262

...
...
1
DIAPHRAGM Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-503896701
...
2
Metering Diaphragm Gasket Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-530035151
...
3
Circuit Plate Gasket Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-530035211
...
4
Mixture Needle PLN-530035212
...
5
Needle Spring-Low Speed PLN-530035293
...
6
Mixture Needle Washer PLN-530035217
...
7
"O" Ring Mixture Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-530035218
...
8
PUMP DIAPHRAGM Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-504130807
...
9
GASKET Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit PLN-504130906
...
10
Idle Speed Screw PLN-530035203
...
11
Spring PLN-501667801
...
12
Pin Included in Carb. Kwik Repair Kit PLN-505520125
...
13
Metering Lever Included in Carb. Kwik Repair Kit PLN-505520127
...
14
Metering Lever Spring Included in Carb. Kwik Repair Kit PLN-530035188
...
15
Needle Included in Carb. Kwik Repair Kit PLN-503117001
...
16
Fuel Inlet Screen Included in Carb. Kwik Repair Kit PLN-530035178
...
17
Metering Lever Pin Screw PLN-530035016
...
18
Carb. Kwik Repair Kit PLN-530035264
...
19
Gasket Diaphragm Kit PLN-530069844
...
530035262
Carburetor Assembly (WA207/207A) PLN-530035262

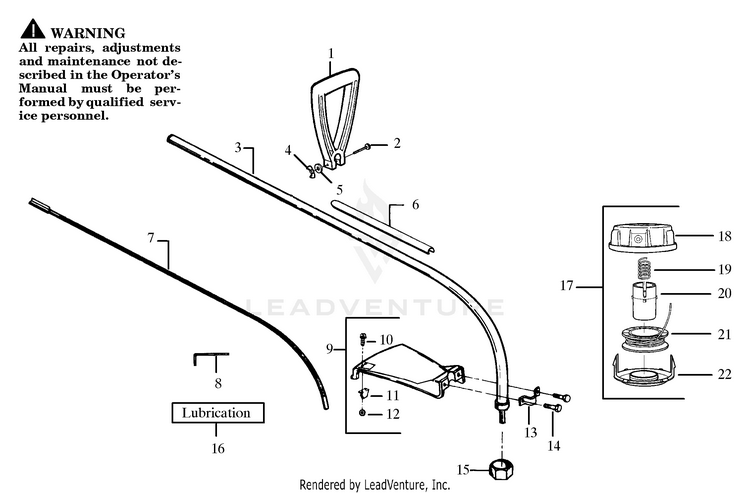

Cutting Head Assembly

...
...
1
Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3 PLN-530069496
...
2
Screw PLN-530340228
...
3
Drive Shaft Housing Models HP22 & HP30T PLN-530095133
...
3
Drive Shaft Housing Models HP22T PLN-530095134
...
4
Nut PLN-530091373
...
5
Washer PLN-530092062
...
6
Shaft Warning Decal PLN-530029159
...
7
Drive Shaft PLN-530094679
...
8
Hex Wrench (5/32) PLN-530031159
...
9
Shield Kit Ass'y. (Incl. #10,11,12 & 14) PLN-530069299
...
10
Screw PLN-530015337
...
11
Line Limiter PLN-530094570
...
12
Nut PLN-530403094
...
13
Shield Bracket PLN-530029373
...
14
Screw PLN-530016107
...
15
Dust Cup PLN-530094543
...
16
LUBE, FLEX SHAFT NLA PLN-952708514
...
17
TRIMMY HIT JR-5/16 PLN-695000394
...
18
Hub Ass'y. PLN-530094875
...
19
Spring PLN-530094830
...
20
Release Button PLN-530094827
...
21
Spool w/Line PLN-952701619
...
22
Cover PLN-530094828
...
xx
Operator's Manual Model HP22 Not Shown PLN-530068745
...
xx
Operator's Manual Model HP30T Not Shown PLN-530068609
...
xx
Operator's Manual Model HP22T Not Shown PLN-530068608
...
xx
Carton Contents Bag Not Shown PLN-530014750
...
xx
Carton Model HP22 Not Shown PLN-530061597
...
xx
Carton Model HP22T Not Shown PLN-530061598
...
xx
Carton Model HP30T Not Shown PLN-530061599

Engine Block & Shroud

...
...
1
Screw PLN-530015775
...
2
Muffler/Air Box Cover PLN-530036380
...
3
Air Filter Foam PLN-530036429
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530027526
...
8
Air Filter Plate PLN-530036384
...
9
Spring PLN-530024677
...
10
Throttle Cable Ass'y. PLN-530036386
...
11
Carburetor Models HP22, HP28, HP30T PLN-530035262
...
11
KIT CARBURETOR ASSY PLN-545081825
...
12
Carburetor Gasket Included in Engine Gasket Kit PLN-530019164
...
13
Screw PLN-530015772
...
14
Shroud PLN-530036379
...
15
Lead Wire Ass'y PLN-530014663
...
16
SWITCH, GROUND WIRE PLN-581425901
...
17
Crankcase/Shroud Gasket Included in Engine Gasket Kit PLN-530019154
...
18
Reed Models HP22, HP22T PLN-530027593
...
18
Reed Models HP28, HP30T, HP30SB PLN-530036233
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. Models HP22, HP22T (Incl. Bearings) PLN-530014005
...
20
Connecting Rod Ass'y. Models HP28, HP30T, HP30SB (Incl. Bearings) PLN-530010960
...
21
Crankshaft Ass'y. Models HP22, HP28, HP30T PLN-530010945
...
21
Crankshaft Ass'y. Models HP22T, HP30SB PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Crankcase Ass'y. (Incl. 39-42) PLN-530014016
...
24
Spacer (Models HP22 & HP22T Only) PLN-530027525
...
25
Screw Models HP22, HP22T PLN-530015776
...
25
Screw PLN-530015816
...
26
Ignition Module PLN-530039134
...
27
Screw PLN-530015239
...
28
Spark Plug PLN-530030077
...
29
CYLINDER PLN-530012349
...
29
Cylinder Models HP28, HP30T, HP30SB PLN-530012235
...
30
Muffler Attachment Spring PLN-530036409
...
31
Muffler Kit PLN-530069310
...
32
Crankcase & Crankshaft Ass'y Models HP22, HP28, HP30T (Incl. 21, 23, 38 & 43) PLN-530014004
...
32
Assy-C'case/C'shaft (Incl. 21, 23, 38 & 43) PLN-530071705
...
33
SCREW 6-19X.437 PLN-545227101
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring Models HP22, HP22T PLN-530026413
...
35
Piston Ring Models HP28, HP30T, HP30SB PLN-530025875
...
36
GASKET CYL W/ ADHESIVE Included in Engine Gasket Kit PLN-530019267
...
37
Piston Kit Models HP22, HP22T (Incl. #34,35 & pin) PLN-530069274
...
37
Piston Kit (Incl. #34,35 & pin) PLN-530069899
...
38
Spacer PLN-530015788
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Flywheel Ass'y PLN-530047198
...
44
Flywheel Ass'y PLN-530039189
...
45
Washer Models HP22, HP28, HP30T PLN-530015828
...
45
Washer Models HP22T, HP30SB PLN-530016030
...
46
Flywheel Spacer-Model HP22T, HP30SB Only PLN-530027511
...
47
Kit-Starter Pulley PLN-530071387
...
48
STARTER SPRING PLN-545008010
...
49
Screw PLN-530015496
...
50
Retainer PLN-530027523
...
51
Screw PLN-530015843
...
52
Handle Isolator PLN-530037105
...
53
Fan Housing Models HP22, HP28, HP30T PLN-530014793
...
53
Fan Housing Models HP22T, HP30SB PLN-530014794
...
54
Starter Handle PLN-530027569
...
55
Rope Kit PLN-530069232
...
56
Kit-Switch PLN-530069572
...
57
Handle PLN-530036385
...
58
Trigger PLN-530036428
...
59
Screw PLN-530015814
...
60
Screw PLN-530015767
...
61
Locknut PLN-530015768
...
63
Handle Cover PLN-530036174
...
64
Screw PLN-530015934
...
65
Isolator AV PLN-530037115
...
66
Fuel Tank Isolator PLN-530029760
...
67
Fuel Cap Ass'y. PLN-530014777
...
68
Fuel Tank Ass'y. Non-primer units PLN-530014479
...
68
Fuel Tank Ass'y. Units with primer bulb Part Change PLN-530047128
...
69
Assy-Fuel Pickup PLN-530095646
...
70
Fuel Line Kit PLN-530069247
...
71
Check Valve PLN-530026119
...
72
Retainer PLN-530029696
...
73
Screw PLN-530015935
...
74
Gasket Kit PLN-530069302
...
75
Spark Arrestor Kit PLN-952701612
...
76
SCREW PLN-530016080
...
77
Screw PLN-530015771
...
78
Clutch Washer-Models HP22T, HP30SB PLN-530094189
...
79
Clutch Ass'y. Kit Models HP22T, HP30SB PLN-530069254
...
80
Washer Models HP22T, HP30SB PLN-530015796
...
81
Nut Models HP22T, HP30SB PLN-530001733
...
82
Clutch Housing Models HP22T, HP30SB PLN-530014795
...
83
Shaft Spacer-Model HP28 & HP30T Only PLN-530036989
...
84
Drive Coupling-Models HP22, HP28 & HP30T Only PLN-530027953

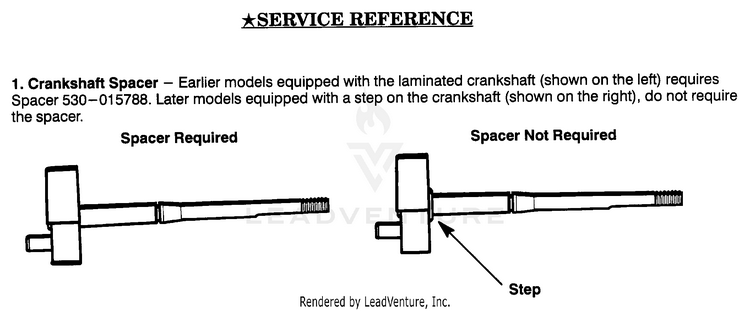

Service Reference HP22, HP22T & HP30T

...

No Parts Available for this Schematic
