Weed Eater GTI19 Gas Trimmer

Model: GTI19 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

CARBURETOR WA-199

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
GASKET PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin PLN-505520125
...
11
Metering Lever PLN-505520127
...
12
Metering Lever Spring PLN-530035188
...
13
Needle PLN-503117001
...
14
Inlet Screen PLN-530035178
...
15
PUMP DIAPHRAGM PLN-504130807
...
16
GASKET PLN-504130906
...
17
Carb. Kwik Repair Kit (Inc. 1,2,3,12,13,14, 15,16,18) PLN-530035260
...
18
Carb. Gasket/Diaphragm Kit (Inc. 1,2,3) PLN-530035185

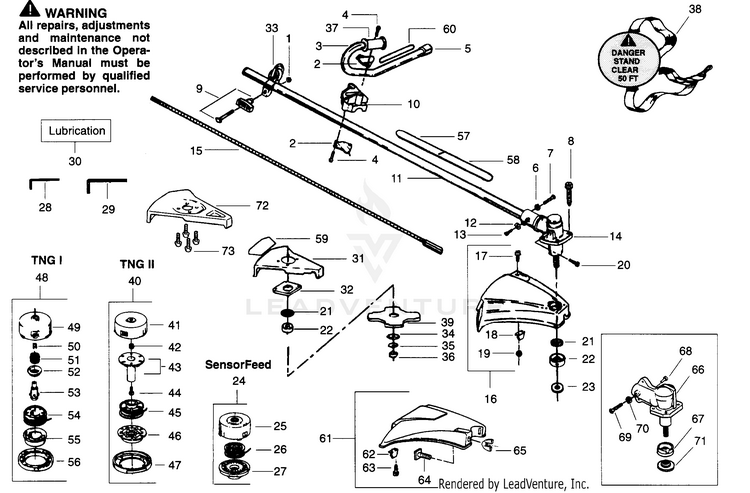

DRIVE SHAFT & CUTTING HEAD

...
...
1
Nut PLN-530015768
...
2
Handlebar Bracket PLN-530094572
...
3
Handlebar PLN-530010723
...
4
Screw PLN-530015791
...
5
Handlebar Cap PLN-530092192
...
6
Lockwasher PLN-530001642
...
7
Screw PLN-530001711
...
8
Use w/plastic shield PLN-530016107
...
8
Use w/metal shield PLN-530015791
...
9
HANDLE KIT PLN-530069347
...
10
Handlebar Clamp PLN-530012207
...
11
Type 2 PLN-530094684
...
11
MODEL GTI 19T Type 3 PLN-530094334
...
12
Lockwasher PLN-530015328
...
13
Screw PLN-530094612
...
14
GEAR BOX REPLACEMENT KIT PLN-530071781
...
15
Drive Shaft PLN-530094585
...
16
Shield Kit Ass'y. (Incl. 17,18,19) PLN-530069256
...
17
Screw PLN-530015037
...
18
Line Limiter PLN-530094570
...
19
Nut PLN-530403094
...
20
Screw PLN-530094616
...
21
Seal PLN-530094640
...
22
Dust Cup PLN-530094639
...
23
Grass Washer PLN-530094571
...
24
Cutting Head Ass'y. (Incl. 25-27) PLN-952701608
...
25
Accy--Cutting Head PLN-952711550
...
26
Spool w/Line PLN-952701607
...
27
Cover PLN-530094494
...
28
Hex Wrench (5/32) PLN-530031159
...
29
Hex Wrench (3/16) PLN-530031098
...
30
Shaft Lubrication PLN-952030139
...
31
SHIELD PLN-530094633
...
32
Shield Retention Plate PLN-530027615
...
33
Harness Clamp Ass'y. PLN-530094686
...
34
Washer PLN-530015792
...
35
Washer--Belleville PLN-530016240
...
36
Nut PLN-530015793
...
37
Handlebar Grip PLN-530092086
...
38
Shoulder Strap PLN-530094417
...
39
4 Point Blade PLN-952701611
...
40
Cutting Head Ass'y (Incl. 41-47) PLN-530094954
...
41
Hub Ass'y PLN-530014274
...
42
Spring PLN-530094956
...
43
Locking Plate Kit PLN-530069312
...
44
Screw PLN-530015542
...
45
Spool w/Line PLN-952701606
...
46
Release Button PLN-530094522
...
47
Cover PLN-530094521
...
48
Accy--Cutting Head PLN-952711550
...
49
Hub PLN-530071295
...
50
Line Saver PLN-530093898
...
51
Spring PLN-530340007
...
52
Cap Spring PLN-530328929
...
53
Hub PLN-530071295
...
54
Spool w/Line PLN-952701589
...
55
Release Button PLN-530401183
...
56
Cover PLN-530092133
...
A
Shaft Warning-Upper PLN-530029162
...
B
Type 2 PLN-530029163
...
B
Type 3 PLN-530038908
...
C
Blade Direction Decal (Not a serviceable part) PLN-530027749
...
D
Handlebar Warning Decal (Not a serviceable part) PLN-530027779

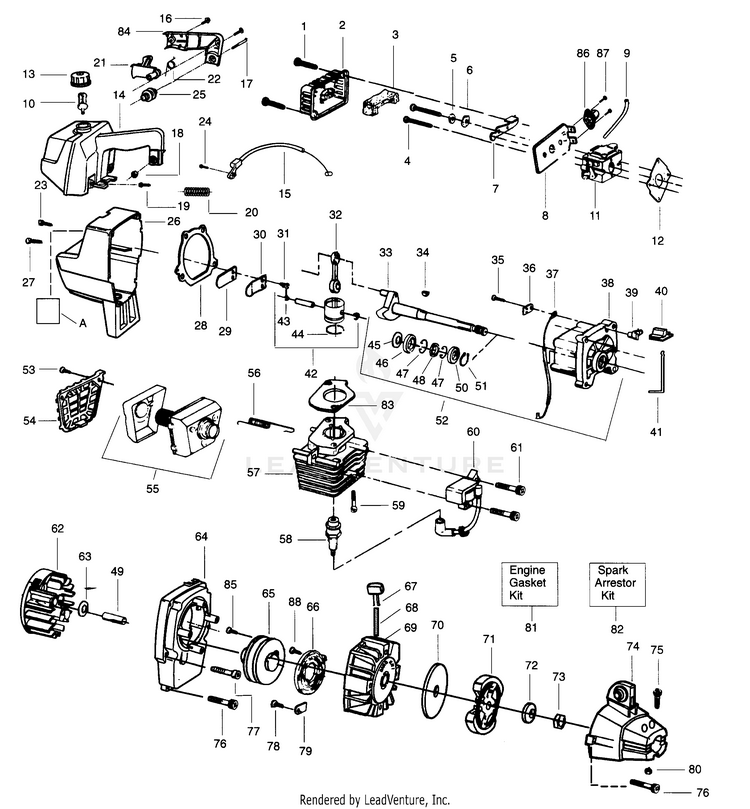

POWER UNIT

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
MODEL GTI 19 PLN-530027527
...
8
MODEL GTI 19T Type 2 & 3 PLN-530037930
...
9
Fuel Line PLN-530069247
...
9
MODEL GTI 19T Type 2 & 3 PLN-530069571
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
11
WA-298A MODEL GTI 19T Type 2 & 3 PLN-530069651
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
MODEL GTI 19 PLN-530029552
...
14
MODEL GTI 19T Type 2 & 3 PLN-530047102
...
15
Throttle Cable Ass'y PLN-530037499
...
16
Screw PLN-530015805
...
17
Screw PLN-530015806
...
18
Nut PLN-530015807
...
19
Screw PLN-530015713
...
20
Rear Isolator Spring PLN-530027926
...
21
Throttle Trigger PLN-530027924
...
22
Throttle Spring PLN-530027925
...
23
Screw PLN-530015772
...
24
Screw PLN-530015775
...
25
Isolator PLN-530024256
...
26
Shroud PLN-530027923
...
27
Screw PLN-530015771
...
28
Gasket PLN-530019154
...
29
Reed PLN-530027593
...
30
Reed Stop PLN-530027594
...
31
SCREW 6-19X.437 PLN-545227101
...
32
Connecting Rod Ass'y. PLN-530010960
...
33
Crankshaft Ass'y. See Service Ref. 1 PLN-530010934
...
34
Flywheel Key PLN-530015126
...
35
Screw PLN-530015780
...
36
Switch Insulator PLN-530027546
...
37
Lead Wire PLN-530027547
...
38
Crankcase Ass'y. (Incl. 46-48 & 50) PLN-530014016
...
39
Switch Ramp PLN-530027545
...
40
Switch Button PLN-530038309
...
41
Switch Spring PLN-530027959
...
42
Piston Kit PLN-530069899
...
43
Piston Pin Retainer PLN-530015162
...
44
Piston Ring PLN-530025875
...
46
Inner Bearing PLN-530032103
...
47
Retaining Ring PLN-530015787
...
48
Crankshaft Seal PLN-530019158
...
49
Spacer PLN-530027511
...
50
Outer Bearing PLN-530032102
...
51
Crankshaft Retaining Ring PLN-530015789
...
52
Assy-C'case/C'shaft PLN-530071705
...
53
Screw PLN-530015717
...
54
Muffler Guard PLN-530027781
...
55
Muffler Kit PLN-530069310
...
56
Muffler Spring PLN-530036409
...
57
Cylinder PLN-530069626
...
58
Type 2 (CJ-14) PLN-530030077
...
58
Type 3 (RCJ-8Y) PLN-530030075
...
59
Screw PLN-530015239
...
60
Ignition Module Kit PLN-530039134
...
61
Screw PLN-530015816
...
62
Flywheel Ass'y. PLN-530039189
...
63
Washer PLN-530016030
...
64
Fan Housing PLN-530027948
...
65
Kit-Starter Pulley PLN-530071387
...
66
SPRING STARTER PLN-545008015
...
67
Starter Handle PLN-530027569
...
68
Rope Kit PLN-530069232
...
69
Pulley Housing Ass'y. PLN-530014009
...
70
Clutch Washer PLN-530094189
...
71
Clutch Ass'y. Kit PLN-530069254
...
72
Washer PLN-530015796
...
73
Nut PLN-530001733
...
74
Clutch Housing PLN-530014010
...
75
Screw PLN-530015767
...
76
Screw PLN-530015770
...
77
Screw PLN-530015769
...
78
Screw PLN-530015496
...
79
Pulley Retainer PLN-530027523
...
80
Locknut PLN-530015768
...
81
Engine Gasket Kit (Inc. 12,28,83) PLN-530069276
...
82
Spark Arrestor Kit PLN-952701612
...
83
GASKET CYL W/ ADHESIVE PLN-530019267
...
84
Handle Cover PLN-530027917
...
85
Screw PLN-530016080
...
86
MODEL GTI 19T Type 2 & 3 PLN-530038874
...
87
MODEL GTI 19T Type 2 & 3 PLN-530016091
...
88
Screw-Starter Spring MODEL GTI 19T Type 3 PLN-530015882
...
0
Instruction Decal, MODEL GTI 19 PLN-530027970
...
0
Instruction Decal, MODEL GTI 19T Type 2 (Not a serviceable part) PLN-530037742
...
0
Instruction Decal, MODEL GTI 19T Type 3 (Not a serviceable part) PLN-530038843
...
0
Instruction Decal, MODEL GTI 19 & GTI 19T Type 2 PLN-530014012
...
0
Instruction Decal, MODEL GTI 19T Type 3 PLN-530047326
...
0
Instruction Decal, MODEL GTI 19 PLN-530067320
...
0
Instruction Decal, MODEL GTI 19T Type 1 & 2 PLN-530081791
...
0
Instruction Decal, MODEL GTI 19T Type 3 PLN-530083671
...
...
...
