Weed Eater GTI17LE Gas Trimmer

Model: GTI17LE Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

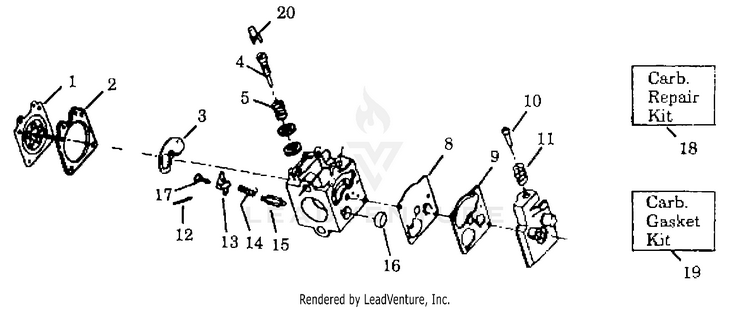

Carb Assy

...
...
1
DIAPHRAGM Engine Gasket Kit Contents PLN-503896701
...
2
Metering Diaphragm Gasket Engine Gasket Kit Contents PLN-530035151
...
3
Circuit Plate Gasket Engine Gasket Kit Contents PLN-530035211
...
4
Mixture Needle Type 1 PLN-530035212
...
4
Mixture Needle Type 2 Part Change PLN-530035341
...
5
Needle Spring-Low Speed PLN-530035293
...
5
Mixture Needle Spring Type 2 Part Change PLN-530035342
...
6
Mixture Needle Washer PLN-530035217
...
7
"O" Ring Mixture Engine Gasket Kit Contents PLN-530035218
...
8
PUMP DIAPHRAGM Engine Gasket Kit Contents PLN-504130807
...
9
GASKET Engine Gasket Kit Contents PLN-504130906
...
10
Idle Speed Screw PLN-530035203
...
11
Spring PLN-501667801
...
12
Pin PLN-505520125
...
13
Metering Lever PLN-505520127
...
14
Metering Lever Spring PLN-530035188
...
15
Needle PLN-503117001
...
16
Fuel Inlet Screen PLN-530035178
...
17
Metering Lever Pin Screw PLN-530035016
...
18
Carb. Kwik Repair Kit Indicates Contents PLN-530035264
...
19
Gasket Diaphragm Kit Indicates Contents; Engine Gasket Kit Contents PLN-530069844
...
20
Limiter Cap - Type 2 Part Change PLN-530035337

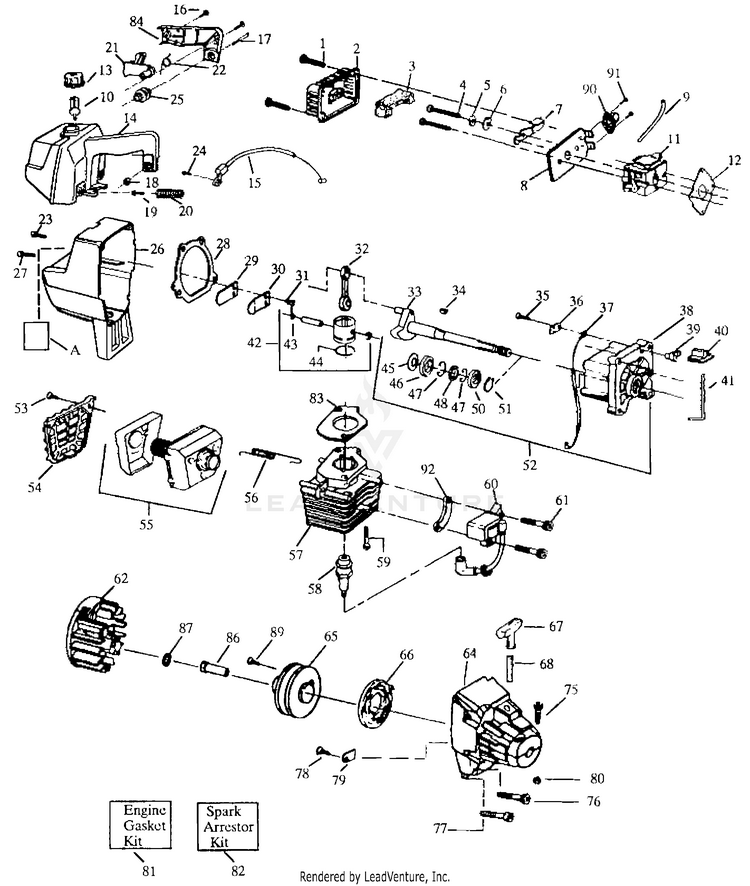

Engine Assy

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
Air Filter Plate Type I PLN-530027527
...
8
Air Filter Plate Type II Part Change PLN-530037930
...
9
Fuel Line Kit Fuel line PLN-530069247
...
9
Fuel Line Kit Return line Part Change PLN-530069238
...
10
Assy-Fuel Pickup PLN-530095646
...
11
Carburetor Type I - (WA207/207A) PLN-530035262
...
11
Carburetor Type II - (WA219) Part Change PLN-530069568
...
12
Carburetor Gasket Engine Gasket Kit Contents PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Handle & Tank Ass'y. Type I PLN-530029552
...
14
Handle & Tank Ass'y. Type II Part Change PLN-530047102
...
15
Type 3 & 4 PLN-530037499
...
15
Throtte Cable Ass'y. Type II Part Change PLN-530037499
...
16
Screw PLN-530015805
...
17
Shoulder Bolt PLN-530015809
...
18
Nut PLN-530015807
...
19
Screw PLN-530015713
...
20
Rear Isolator Spring PLN-530027926
...
21
Throttle Trigger PLN-530027924
...
22
Throttle Spring PLN-530027925
...
23
SCREW PLN-530016386
...
24
Screw PLN-530015775
...
25
Isolator PLN-530024256
...
26
Shroud PLN-530027923
...
27
Screw PLN-530015771
...
28
Gasket Engine Gasket Kit Contents PLN-530019154
...
29
Reed PLN-530027593
...
30
Reed Stop PLN-530027594
...
31
SCREW 6-19X.437 PLN-545227101
...
32
Connecting Rod Ass'y. PLN-530010960
...
33
Crankshaft Ass'y. PLN-530010945
...
34
Flywheel Key PLN-530015126
...
35
Screw PLN-530015780
...
36
Switch Insulator PLN-530027546
...
37
Lead Wire PLN-530027547
...
38
Crankcase Ass'y. Incl. #46,47,48 & 50 PLN-530014016
...
39
Switch Ramp PLN-530027545
...
40
Switch Button PLN-530038309
...
41
Switch Spring PLN-530027959
...
42
Piston Kit Incl. #43,44 & pin PLN-530069240
...
43
Piston Pin Retainer PLN-530015162
...
44
Piston Ring PLN-530027369
...
45
Spacer PLN-530015788
...
46
Inner Bearing PLN-530032103
...
47
Retaining Ring PLN-530015787
...
48
Crankshaft Seal PLN-530019158
...
50
Outer Bearing PLN-530032102
...
51
Retaining Ring PLN-530015789
...
52
Crankcase & Crankshaft Ass'y, Incl. #33,38,45 & 51 PLN-530014004
...
53
Screw PLN-530015717
...
54
Muffler Guard PLN-530027781
...
55
Muffler Kit PLN-530069310
...
56
Muffler Spring PLN-530036409
...
57
Cylinder PLN-530012247
...
58
Spark Plug PLN-530030077
...
59
Screw PLN-530015239
...
60
Ignition Module Kit PLN-530039134
...
61
Screw PLN-530015776
...
62
Flywheel Ass'y PLN-530047198
...
64
Fan Housing PLN-530014044
...
65
Kit-Starter Pulley PLN-530071387
...
66
STARTER SPRING PLN-545008010
...
67
Starter Handle PLN-530027569
...
68
Rope Kit PLN-530069232
...
75
Screw PLN-530015767
...
76
Screw PLN-530015770
...
77
Screw PLN-530015769
...
78
Screw PLN-530015496
...
79
Pulley Retainer PLN-530027523
...
80
Locknut PLN-530015768
...
81
Engine Gasket Kit Indicates Contents Engine Gasket Kit Contents PLN-530069276
...
82
Spark Arrestor Kit PLN-952701612
...
83
GASKET CYL W/ ADHESIVE Engine Gasket Kit Contents PLN-530019267
...
84
Handle Cover PLN-530027917
...
86
Drive Coupling PLN-530027953
...
87
Washer PLN-530015828
...
89
Screw Incl. in Starter Pulley Part Change PLN-530016080
...
90
Bulb Ass'y. Part Change PLN-530038874
...
91
Screw - Type II Part Change PLN-530016085
...
92
Spacer PLN-530027525
...
A
Instruction Decal Type I PLN-530027970
...
A
Instruction Decal Type II PLN-530037742

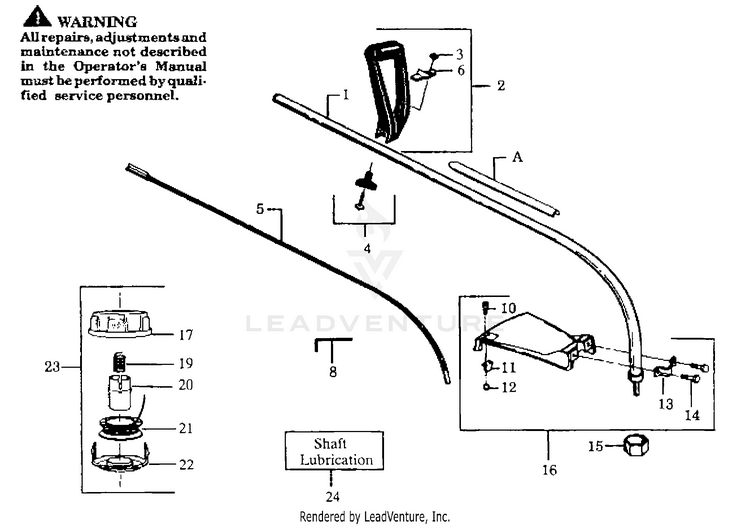

Shaft and Handle Assy

...
...
1
Drive Shaft Housing PLN-530095133
...
2
Assist Handle Kit PLN-530069496
...
3
Nut PLN-530015610
...
4
HANDLE KIT PLN-530069347
...
5
Drive Shaft PLN-530094679
...
6
Clamp PLN-530094742
...
8
Hex Wrench (5/32) PLN-530031159
...
10
Screw PLN-530015337
...
11
Line Limiter PLN-530094570
...
12
Nut PLN-530403094
...
13
Shield Bracket PLN-530029373
...
14
Screw PLN-530016107
...
15
Dust Cup PLN-530094543
...
16
Shield Kit Ass'y. Incl. #10-12 & 14 PLN-530069299
...
17
Hub Ass'y. PLN-530094875
...
19
Spring PLN-530094830
...
20
Release Button PLN-530094827
...
21
Spool w/Line PLN-952701619
...
22
Cover PLN-530094828
...
23
TRIMMY HIT JR-5/16 PLN-695000394
...
24
Shaft Lubrication PLN-952030139
...
A
Shaft Warning Decal PLN-530029159
...
xx
Operator's Manual Not Shown PLN-530082119
...
xx
Carton Contents Bag Not Shown PLN-530014215
...
xx
Carton Not Shown PLN-530061681
...
...
...
