Weed Eater GHT220LE Gas Hedge Trimmer Type 2

Model: GHT220LE Gas Hedge Trimmer Type 2

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

Carburetor Assembly (C1U-W13A) 530071633

...
...
530071633
Carburetor Assembly - C1U-W13A PLN-530071633

Carburetor Assembly (Zama W13) 530071601

...
...
1
Limiter Cap-Low PLN-530038478
...
2
Limiter Cap-High PLN-530038479
...
3
Carburetor Repair Kit (KIT=CONTENTS) PLN-530071354
...
4
Gasket/Diaphragm Kit (DOT=CONTENTS) PLN-530069969
...
530071601
Kit-Carburetor Ass'y. PLN-530071633

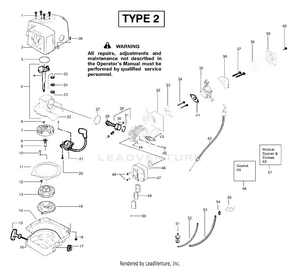

Engine Assembly Type 2

...
...
1
Screw PLN-530016386
...
2
Assy-Shroud/H'shield PLN-530055790
...
3
O-Ring-C'case (kit) PLN-530071486
...
4
CRANKSHAFT ASSY PLN-545145801
...
5
Assy-C/case-C/shaft (Incl. #4,6 & 23-25) PLN-530071681
...
6
Ring-Retainer-C'shaft PLN-530015941
...
7
FLYWHEEL ASSY PLN-545221701
...
8
Washer-Flat PLN-530015828
...
9
Spacer-Flywheel PLN-530055729
...
10
Screw PLN-530015496
...
11
Plate-Baffle PLN-530055681
...
12
Screw PLN-530016080
...
13
Kit-Starter Pulley (Incl.# 12) PLN-530069353
...
14
Assy-Fan Housing PLN-530055762
...
15
Handle-Starter PLN-530027569
...
16
Kit-Rope PLN-530069232
...
17
Grommet-Ignition Module PLN-530019182
...
18
Screw-(f/hsg to shrd) PLN-530016386
...
19
STARTER SPRING PLN-545008010
...
20
Screw PLN-530016357
...
21
Kit - Ignition Module PLN-545081826
...
22
Assy-Crankcase PLN-530012510
...
23
Bearing-Outer PLN-530055728
...
24
Seal-Crankcase PLN-530019264
...
25
Bearing-Inner PLN-530032125
...
26
Screw PLN-530015934
...
27
Seal-Cylinder (kit) PLN-530071486
...
28
CONNECTING ROD ASSY PLN-530049817
...
29
Kit-Piston (Incl. 30 & 31) PLN-530071833
...
30
Retainer-Piston Pin PLN-530015162
...
31
RING PISTON PLN-545154001
...
32
Gasket-Carb. Adapt. (kit) PLN-530071486
...
33
CARBURETOR ADAPTOR PLN-545030402
...
34
Screw PLN-530016309
...
35
Kit-Carburetor Ass'y. (C1U-W13A) PLN-530071633
...
36
Air Box PLN-530055680
...
37
Screw PLN-530016353
...
38
Air Filter Foam PLN-530047932
...
39
Air Filter Cover PLN-530055679
...
40
Screw PLN-530015957
...
41
Gasket-Carburetor (kit) PLN-530071486
...
42
Assy-Throttle Cable PLN-530055547
...
43
Spark Plug (RCJ-6Y) PLN-952030249
...
44
Kit-Cylinder PLN-530071668
...
45
Screw PLN-530015953
...
46
Gasket-Muffler (kit) PLN-530071486
...
47
Kit-Muffler (Incl. # 46,48.49,50) PLN-530071682
...
48
Bolt-Muffler PLN-530016338
...
49
Kit-Spark Arrestor PLN-530071544
...
50
Screw PLN-530015241
...
51
Assy-Pick-up PLN-530095992
...
52
Kit-Fuel Line (small) PLN-530069247
...
53
Kit-Fuel Line (large) PLN-530069216
...
54
Fitting-Fuel Line PLN-530023877
...
55
Clip-Retainer PLN-530016103
...
56
Kit-Gasket (Incl. #3,27,32,41,46) PLN-530071486
...
57
Kit-Module Spacer & Screws PLN-530071731
...
xx
Operator Manual Not Shown PLN-530163356
...
xx
Decal-Warning Not Shown PLN-530047459

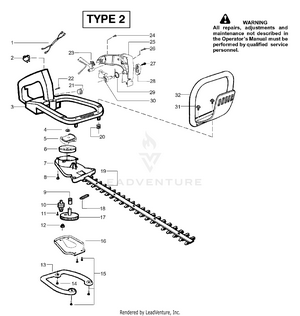

Handle & Blade Assembly Type 2

...
...
1
WIRE HARNESS ASSY (Incl.#2) PLN-545172901
...
2
Switch-Ignition PLN-530029954
...
3
HANDLE PLN-530071655
...
4
Washer-Clutch PLN-530015828
...
5
Kit-Clutch Assy. PLN-530014396
...
6
Assy-Drum PLN-530056069
...
7
Assy-Gear Box (Incl.# 9-11) PLN-530071931
...
8
Screw PLN-530015886
...
9
Bearing-Gear PLN-530016013
...
10
Assy-Pinion PLN-530096009
...
11
Screw PLN-530015805
...
12
Bushing-Blade PLN-530032121
...
13
Plate-Isolator PLN-530036046
...
14
Screw PLN-530015849
...
15
Screw PLN-530015934
...
16
Cover-Gear Box Plate PLN-530029916
...
17
Kit-Drive Gear Ass'y. (Incl. #12) PLN-530071690
...
18
Seal-Blade (Felt) PLN-530029948
...
19
Assy-Blade 22" PLN-530403229
...
20
Spring PLN-530029946
...
21
FUEL CAP ASSY W/RET LW PRM PLN-577858601
...
22
Screw PLN-530015770
...
23
Lockout-Throttle PLN-530053900
...
24
Screw PLN-530015934
...
25
Cover-Handle PLN-530038305
...
26
Screw PLN-530015940
...
27
Screw PLN-530015775
...
28
Lever-Trigger PLN-530029958
...
29
Spring-Trigger PLN-530036123
...
30
Trigger PLN-530053884
...
31
Screw PLN-530015955
...
32
Handle-Front PLN-530094992
...
...
...
