Weed Eater GHT220 Gas Hedge Trimmer Type 1

Model: GHT220 Gas Hedge Trimmer Type 1

Save Part Not Listed?
product name

Carburetor Assembly (Zama C1U-W13A) 530071633

...
...
530071718
Kit Choke Lever PLN-530071718
...
530071633
Carburetor Assembly - C1U-W13A PLN-530071633

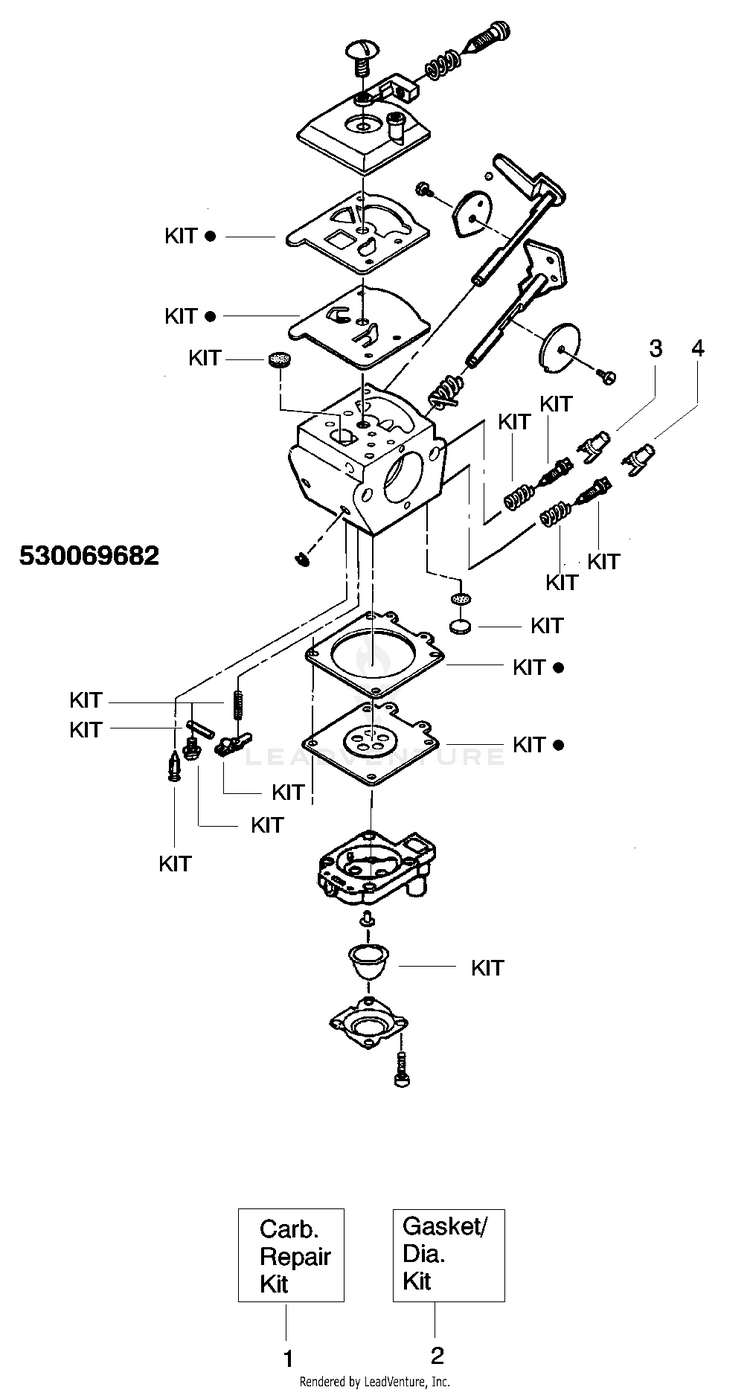

Carburetor Assembly (Zama C1U-W4) 530069682

...
...
1
Kit-Carb. Repair (KIT = Indicates Contents) PLN-530069969
...
2
Kit-Gasket/Diaphragm (DOT = Indicates Contents) PLN-530069866
...
3
Limiter Cap (Low) tan PLN-530038478
...
4
Limiter Cap (High) brown PLN-530038479
...
530069682
Carburetor Assembly PLN-530069682

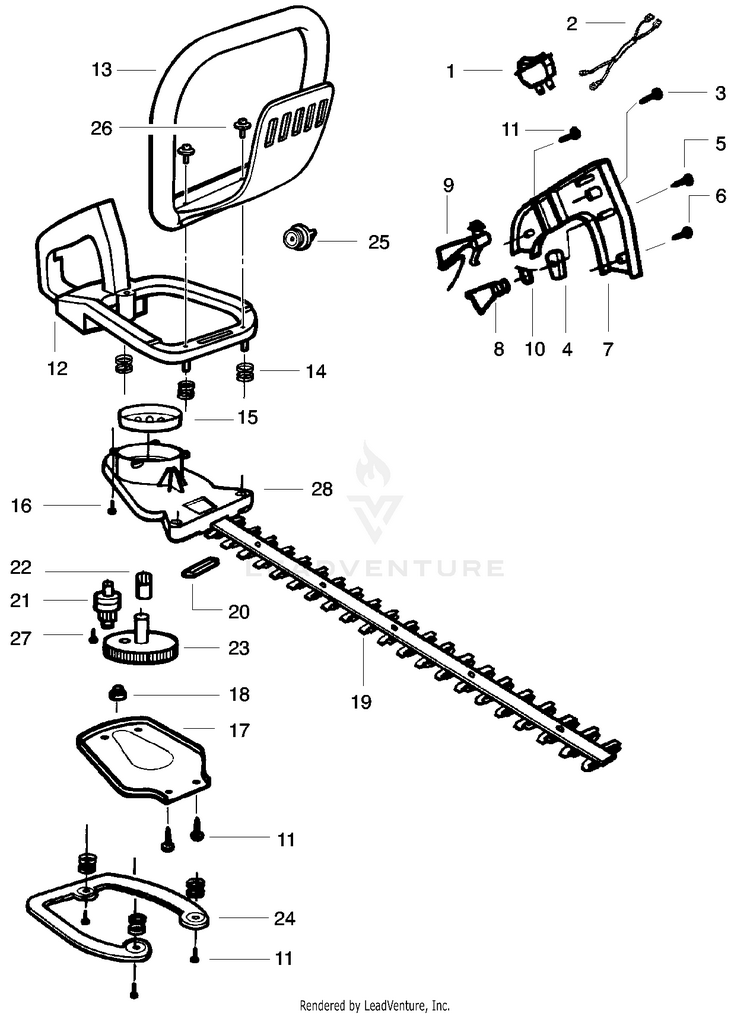

Handle & Blade Assembly

...
...
1
Switch-Ignition PLN-530029954
...
2
WIRE HARNESS ASSY PLN-545172901
...
3
Screw PLN-530015775
...
4
Lever-Trigger PLN-530029958
...
5
Screw PLN-530015940
...
6
Screw PLN-530015770
...
7
Cover-Handle PLN-530038305
...
8
Trigger-Throttle PLN-530053884
...
9
Lockout-Throttle PLN-530053900
...
10
Spring-Trigger PLN-530036123
...
11
Screw PLN-530015934
...
12
Assy-Rear Handle/Tank PLN-530047879
...
13
Handle-Front PLN-530094992
...
14
Spring PLN-530029946
...
15
Assy-Drum PLN-530056069
...
16
Screw PLN-530015814
...
17
Plate-Gear Box PLN-530029916
...
18
Bushing-Blade PLN-530032121
...
19
Assy-Blade 19" PLN-530403228
...
19
Assy-Blade 22" PLN-530403229
...
20
Seal-Blade PLN-530029948
...
21
Assy-Pinion PLN-530036228
...
22
Bearing-Gear PLN-530016013
...
23
Assy-Drive Gear PLN-530069355
...
24
Plate-Isolator PLN-530036046
...
25
FUEL CAP ASSY W/RET LW PRM PLN-577858601
...
26
Screw PLN-530015955
...
27
Screw PLN-530015805
...
28
Assy-Gear Box (Incl. 21, 22 & 27) PLN-530071931

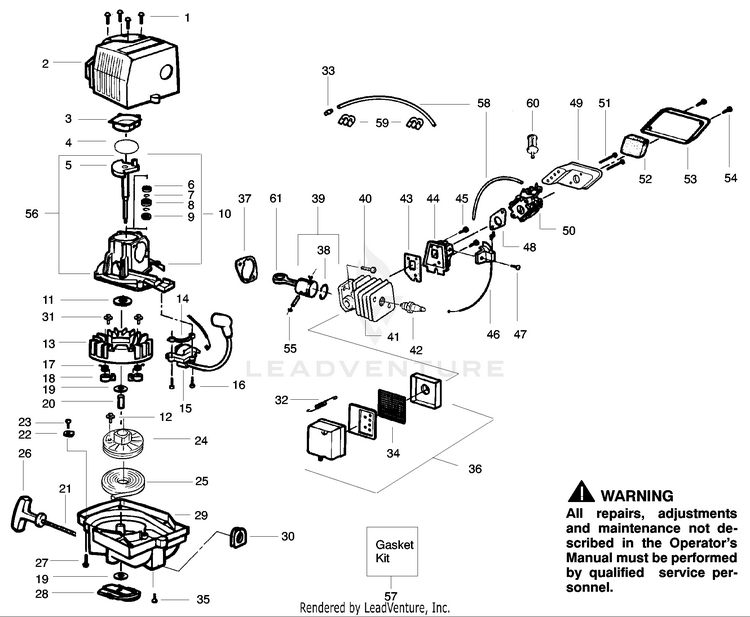

Power Unit

...
...
1
SCREW PLN-530016386
...
2
Shroud PLN-530036345
...
3
Cover-Crankcase PLN-530029929
...
5
Assy-Crankshaft PLN-530014307
...
6
Bearing-Inner PLN-530032125
...
7
Retainer-C'case PLN-530015945
...
8
Seal-Crankcase PLN-530019179
...
9
Bearing-Outer PLN-530032124
...
10
Assy-Crankcase (Incl. 6-9) PLN-530071627
...
11
Ring-Ret. (C'shaft) PLN-530015941
...
12
Screw PLN-530016080
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Spacer-Ignit. Mod. PLN-530036145
...
15
Module-Ignition PLN-530039163
...
16
Screw PLN-530015954
...
17
Spring-Starter Dog PLN-530016191
...
18
STARTER DOG & SPRING ASSEMBLY PLN-530054061
...
19
Washer-Flat PLN-530015828
...
20
Spacer-Flywheel PLN-530015930
...
21
Kit-Rope PLN-530069232
...
22
Retainer PLN-530015963
...
23
Screw PLN-530015496
...
24
Kit-Starter Pulley PLN-530069353
...
25
STARTER SPRING PLN-545008010
...
26
Handle-Starter PLN-530027569
...
27
Screw PLN-530015886
...
28
Kit-Clutch Ass'y. PLN-530014396
...
29
Assy-Fan Housing PLN-530014361
...
30
Grommet-Ignit. Module PLN-530019182
...
31
Screw PLN-530015882
...
32
Spring-Muffler PLN-530016197
...
33
Fitting-Fuel Line PLN-530023877
...
34
Screen-Muffler PLN-530036180
...
35
Screw PLN-530015934
...
36
Kit-Muffler PLN-530069659
...
37
Gasket-Cylinder PLN-530019223
...
38
Ring-Piston PLN-530036404
...
39
Kit-Piston (Incl. 38,55) PLN-530069621
...
40
Screw PLN-530015953
...
41
CYLINDER PLN-530012353
...
42
Spark Plug PLN-503235112
...
43
Gasket-Cylinder/Carb. Adaptor PLN-530019233
...
44
Carb. Adaptor PLN-530049024
...
45
Screw PLN-530016014
...
46
Assy-Throttle Cable PLN-530014384
...
47
Screw PLN-530015775
...
48
Gasket-Carburetor PLN-530019194
...
49
Air Box PLN-530036192
...
50
Kit-Carb. Ass'y. (Incls. Limiter Caps) PLN-530069682
...
51
Screw PLN-530015849
...
52
Air Filter- Foam PLN-530029934
...
53
Air Filter -Cover PLN-530036193
...
54
Screw PLN-530015635
...
55
Piston Pin Retainer PLN-530015162
...
56
KIT, CRANK CASE & SHAFT (Incl. 5 & 10) PLN-530071626
...
57
Kit-Gasket (Incl. 4, 37, 43 & 48) PLN-530069622
...
58
Kit-Fuel Line (Incl. Fuel and Vent lines) PLN-530069599
...
59
Retainer Clip PLN-530016103
...
60
Assy-Fuel Pick-up PLN-530095647
...
61
Kit-Connecting Rod PLN-530069615
...
xx
Operator's Manual Not Shown PLN-530087628
...
xx
Decal-Warning Not Shown PLN-530047459
