Weed Eater GBI20 Gas Blower

Model: GBI20 Gas Blower

Save
 Part Not Listed?Part Not Listed?
product name

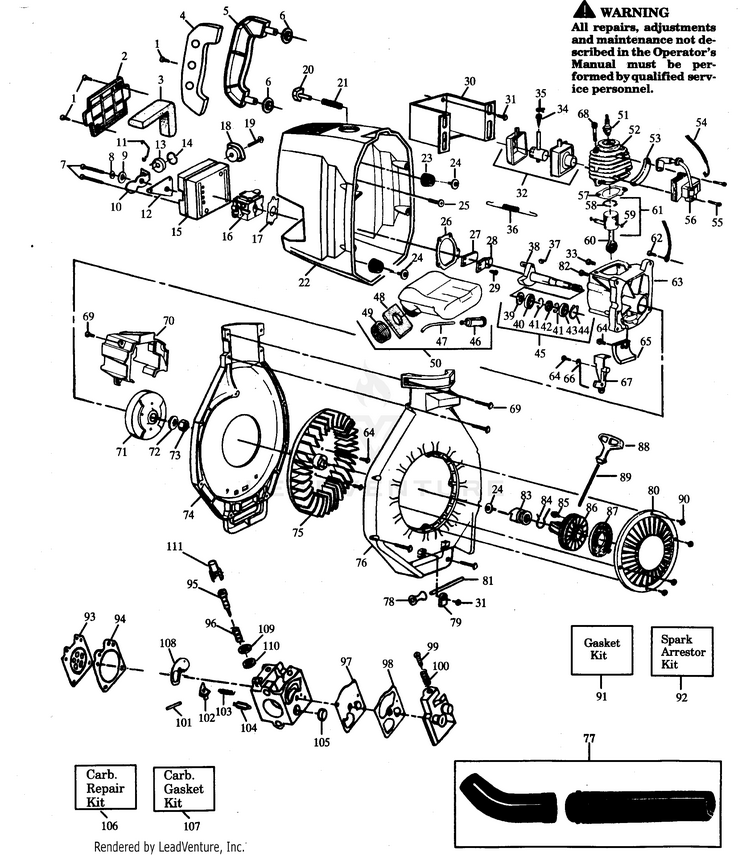

BLOWER ASSEMBLY

...
...
1
Screw PLN-530015635
...
2
Air Filter Cover PLN-530029488
...
3
Air Filter PLN-530029611
...
4
Handle Cover PLN-530029615
...
5
Handle PLN-530029614
...
6
Handle Isolator PLN-530029608
...
7
Screw PLN-530015887
...
8
Choke Spacer PLN-530015852
...
9
Wave Washer PLN-530015254
...
10
Choke Shutter PLN-530029480
...
11
Throttle Wire PLN-530029485
...
12
Choke Mtg. Plate PLN-530029481
...
13
Retainer PLN-530029486
...
14
Wave Washer (Knob) PLN-530015147
...
15
Air Box PLN-530029589
...
16
Type 1 (WA-207A) PLN-530035262
...
16
KIT CARBURETOR ASSY PLN-545081825
...
17
Carburetor Gasket PLN-530019164
...
18
Throttle Knob PLN-530029484
...
19
Screw PLN-530015880
...
20
Button PLN-530029600
...
21
Spring PLN-530029607
...
22
Shroud PLN-530037712
...
23
Spring PLN-530029434
...
24
Screw PLN-530015879
...
25
Screw PLN-530015876
...
26
Gasket PLN-530019154
...
27
Reed Valve PLN-530027593
...
28
Reed Stop PLN-530029781
...
29
SCREW 6-19X.437 PLN-545227101
...
30
Heat Shield PLN-530029597
...
31
Screw PLN-530015805
...
32
Muffler PLN-530069293
...
33
Screw PLN-530015771
...
34
Spark Arrestor Screen PLN-530029227
...
35
Spark Arrestor Clamp PLN-530029228
...
36
Muffler Spring PLN-530029116
...
37
Key PLN-530015126
...
38
Crankshaft Ass'y.- See Service Ref. 1 PLN-530010945
...
40
Inner Bearing PLN-530032103
...
41
Ring PLN-530015787
...
42
Crankshaft Seal PLN-530019158
...
43
Outer Bearing PLN-530032102
...
44
Retaining Ring PLN-530015789
...
45
Crankcase/Crankshaft Ass'y. PLN-530014004
...
46
Assy-Fuel Pickup PLN-530095646
...
47
Fuel Line Kit PLN-530069247
...
48
Foam PLN-530029602
...
49
Fuel Cap PLN-530014347
...
50
Fuel Tank Ass'y. PLN-530014267
...
51
Spark Plug PLN-503235112
...
52
CYLINDER PLN-530012349
...
53
Spacer PLN-530027525
...
54
Leadwire Switch PLN-530029606
...
55
Screw PLN-530015776
...
56
Ignition Module PLN-530039137
...
57
GASKET CYL W/ ADHESIVE PLN-530019267
...
58
Piston Ring PLN-530026413
...
59
Retainer PLN-530015162
...
60
Piston Rod PLN-530014005
...
61
Piston Kit (Inc. 58,59,Pin) PLN-530069274
...
62
Screw PLN-530015775
...
63
Crankcase Ass'y. PLN-530014016
...
64
Screw PLN-530015918
...
65
Isolator PLN-530029603
...
66
Spring PLN-530029613
...
67
Insulator PLN-530029601
...
68
Screw PLN-530015239
...
69
Screw-Line Limiter PLN-530015814
...
70
Baffle PLN-530029433
...
71
Flywheel PLN-530039139
...
72
Washer PLN-530015149
...
73
Nut PLN-530626605
...
74
Blower Housing (Upper) PLN-530029432
...
75
Impeller PLN-530094865
...
76
Blower Housing (Lower) PLN-530014265
...
77
Blower Tube Kit PLN-530038508
...
78
Roller PLN-530029575
...
79
Retainer PLN-530027523
...
80
Pulley Housing PLN-530094867
...
81
Roll Pin PLN-530015851
...
82
Screw PLN-530015772
...
83
Pinion PLN-530029448
...
84
Drag Element PLN-530037716
...
85
Screw PLN-530015882
...
86
Starter Pulley PLN-530069306
...
87
SPRING STARTER PLN-545008015
...
88
Starter Handle PLN-530027569
...
89
Rope Kit PLN-530069232
...
90
Screw PLN-530015886
...
91
Gasket Kit PLN-530069302
...
92
Spark Arrestor Kit PLN-530069348
...
93
DIAPHRAGM PLN-503896701
...
94
Metering Diaphragm Gasket PLN-530035151
...
95
Mixture Needle PLN-530035212
...
96
Needle Spring-Low Speed PLN-530035293
...
97
PUMP DIAPHRAGM PLN-504130807
...
98
GASKET PLN-504130906
...
99
Idle Speed Screw Included in Gasket/Diaphragm Kit. PLN-530035203
...
100
Spring Included in Gasket/Diaphragm Kit. PLN-501667801
...
101
Pin Included in Gasket/Diaphragm Kit. PLN-505520125
...
102
Metering Lever Included in Gasket/Diaphragm Kit. PLN-505520127
...
103
Metering Lever Spring Included in Gasket/Diaphragm Kit. PLN-530035188
...
104
Needle PLN-503117001
...
105
Fuel Inlet Screen PLN-530035178
...
106
Carb. Kwik Repair Kit PLN-530035264
...
107
Gasket Diaphragm Kit PLN-530069844
...
108
Circuit Plate Gasket PLN-530035211
...
109
Mixture Needle Washer PLN-530035217
...
110
"O" Ring Mixture PLN-530035218
...
111
Limiter Cap (Black) PLN-530035337
...
xx
Operator Manual Not Shown. PLN-530082506
...
xx
Type 1 Not Shown. PLN-530029627
...
xx
Type 2 Decal (Not a serviceable part) Not Shown. PLN-530038333
...
...
...
