Weed Eater Featherlite SST LE Gas Trimmer Type 3

Model: Featherlite SST LE Gas Trimmer Type 3

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

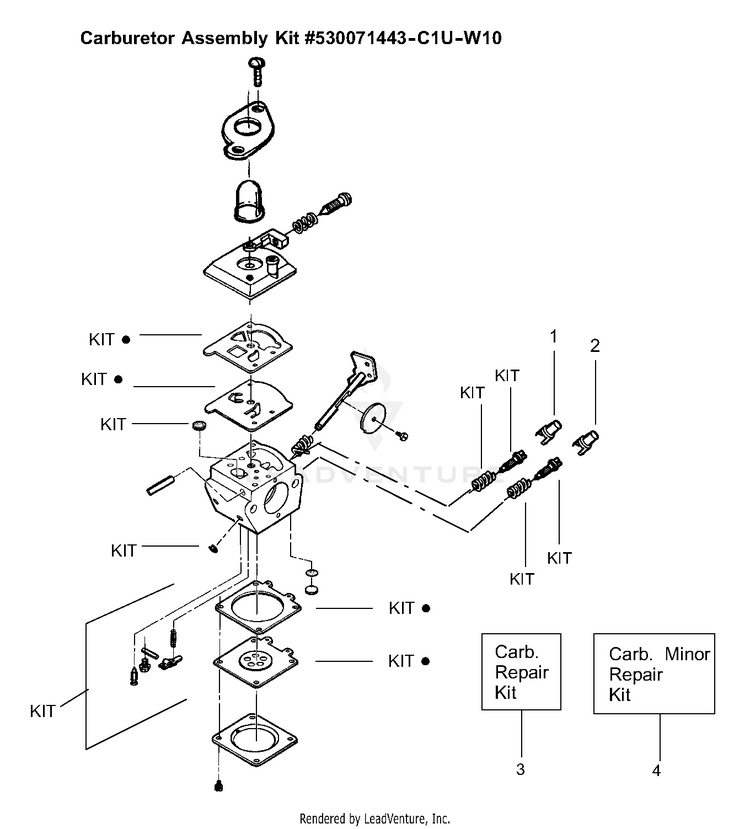

Carburetor Assembly (C1U-W10) P/N 530071443

...
...
1
Limiter Cap (low) PLN-530038478
...
2
Limiter Cap (high) PLN-530038479
...
3
Kit-Carburetor Repair (KIT = Indicates Contents) PLN-530071517
...
4
Kit-Carburetor Minor Repair (DOT = Indicates Contents) PLN-530071442
...
530071443
Carburetor Assembly (C1U-W10) PLN-530071443

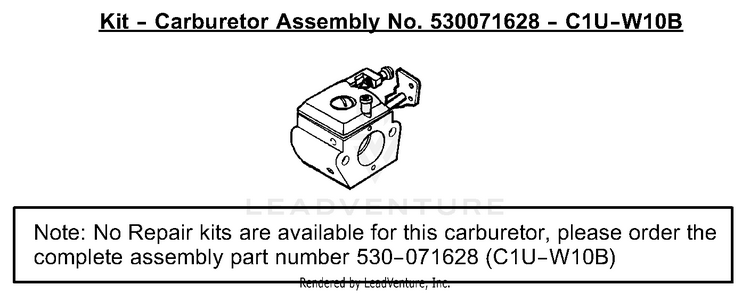

Carburetor Assembly (C1U-W10B) P/N 530071628

...
...
530071628
Kit - Carburetor Assembly - C1U-W10B PLN-530071628

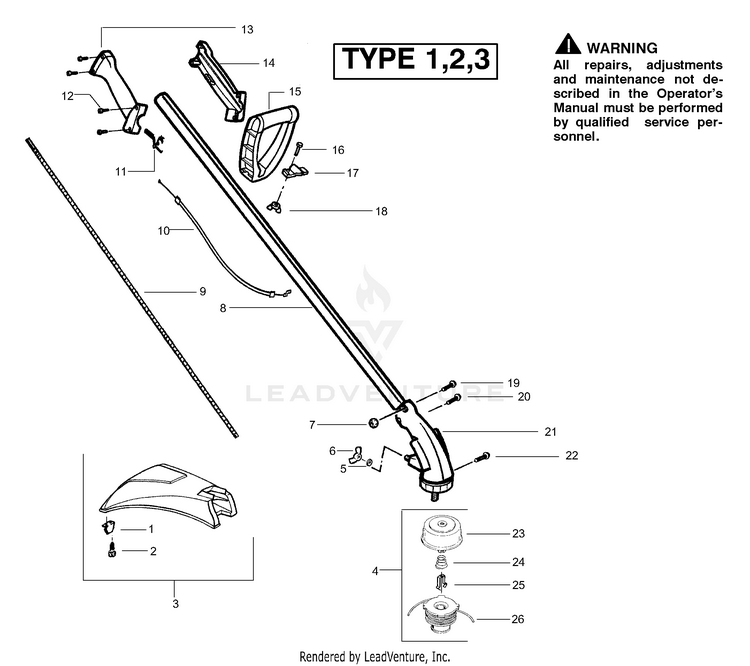

Drive Shaft & Cutting Head

...
...
1
Line Limiter PLN-530052286
...
2
Screw-Line Limiter PLN-530015880
...
3
Shield Kit Ass'y. (Incl. 1 & 2) PLN-530069752
...
4
Accy-TNG 6 Head 5/16 rh 2x (Incl. 23-26) PLN-952711595
...
5
Washer PLN-530092062
...
6
Wingnut-Gear Box PLN-530016225
...
7
Locknut-Gear Box PLN-530016284
...
8
Drive Shaft Hsg. Ass'y PLN-530053002
...
9
Flex-Drive Shaft PLN-530095391
...
10
Throttle Cable Ass'y. PLN-530071548
...
11
Trigger PLN-530038682
...
12
Screw-Throttle Hsg. PLN-530016349
...
13
Throttle Hsg. (Right) PLN-530038581
...
14
Throttle Hsg. (Left) PLN-530038580
...
15
Assist Handle PLN-530038708
...
16
Bolt-Handle PLN-530015820
...
17
Clamp-Handle PLN-530094742
...
18
Nut PLN-530091373
...
19
Screw PLN-530016312
...
20
Screw PLN-530016224
...
21
Kit-Gear Box PLN-530069753
...
22
Screw PLN-530016202
...
23
Kit-Hub Ass'y PLN-530071306
...
24
Spring PLN-530053241
...
25
Retainer PLN-530401957
...
26
Accy-Spool w/Line PLN-952711596
...
xx
Operator Manual Not Shown PLN-530163363
...
xx
Decal-Shaft Warning Not Shown PLN-530055350
...
xx
Decal-Start Inst. Not Shown PLN-530054864

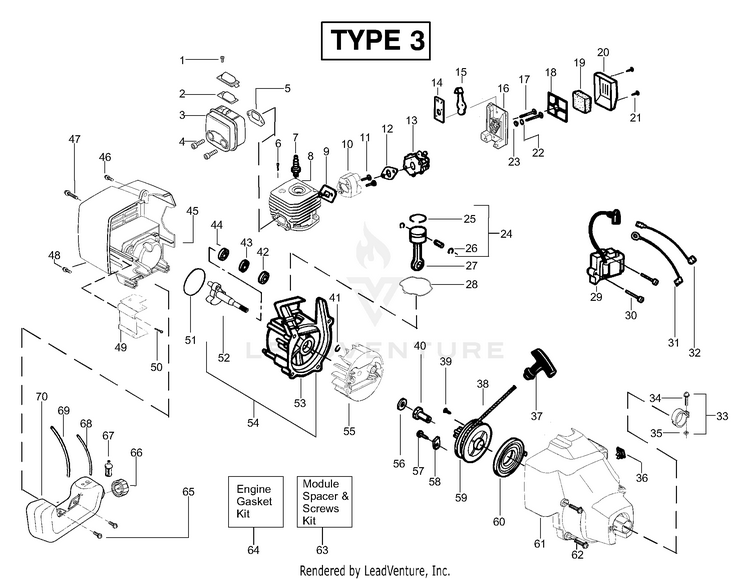

Engine Assembly Type 3

...
...
1
Screw-Screen PLN-530015241
...
2
Kit-Spark Arrestor PLN-530071544
...
3
Kit-Muffler (Incl. #1,2,4,5) PLN-530071672
...
4
Bolt-Muffler PLN-530016338
...
5
Gasket-Muffler (kit) PLN-530071363
...
6
Screw-Cylinder PLN-530015953
...
7
Spark Plug (RCJ 6Y) PLN-952030249
...
8
Kit-Cylinder PLN-530071668
...
9
Gasket-Cyl./Carb.(kit) PLN-530071363
...
10
Adapter-Carb. PLN-530057634
...
11
Screw PLN-530016309
...
12
Gasket-Carb. (kit) PLN-530071363
...
13
Kit-Carburetor Ass'y (C1U-W10B) PLN-530071628
...
14
Choke Plate Mounting PLN-530038747
...
15
Shutter-Choke PLN-530038686
...
16
Air Box PLN-530052431
...
17
Screw PLN-530016393
...
18
Plate-Filter Support PLN-530036569
...
19
Foam-Air Filter PLN-530036575
...
20
Cover-Air Filter PLN-530054414
...
21
Screw PLN-530015892
...
22
Spacer-Choke PLN-530015852
...
23
Washer PLN-530015254
...
24
Kit-Piston (Incl. 25, 26 & Pin) PLN-530071833
...
25
RING PISTON PLN-545154001
...
26
Retainer-Piston Pin PLN-530015162
...
27
CONNECTING ROD ASSY PLN-530049817
...
28
Seal-Cylinder (kit) PLN-530071363
...
29
Ignition Module PLN-530055160
...
30
Screw PLN-530016357
...
31
SWITCH, GROUND WIRE PLN-581425901
...
32
Assy-Leadwire PLN-530014663
...
33
Assy-Nose Cone Clamp (Incls. 34 & 35) PLN-530056365
...
34
Screw-Nose Cone PLN-530016381
...
35
Nut-Nose Cone PLN-530016382
...
36
Kit-Switch PLN-530071356
...
37
Handle-Starter PLN-530027569
...
38
Kit-Rope PLN-530069232
...
39
Screw PLN-530016080
...
40
Coupling-Drive PLN-530038604
...
41
Retain. Ring-C'shaft PLN-530015941
...
42
Outer Bearing PLN-530055728
...
43
Kit-C'case Seal PLN-530071615
...
44
Inner Bearing PLN-530032125
...
45
Shroud-Rear PLN-530056710
...
46
Screw PLN-530016349
...
47
SCREW PLN-530016386
...
48
Screw PLN-530016349
...
49
Shield-Heat PLN-530055351
...
50
Screw PLN-530015805
...
51
O-Ring-C'case (kit) PLN-530071363
...
52
Assy-Crankshaft PLN-530054753
...
53
Assy-Crankcase (Incl. 42-44) PLN-530012510
...
54
Assy-C'case & C'shaft (Incl. 41,52,53) PLN-530071669
...
55
FLYWHEEL ASSY PLN-545221701
...
56
Washer-Flat PLN-530015828
...
57
Screw PLN-530015775
...
58
Retainer-Can PLN-530027523
...
59
STARTER PULLEY KIT (Incl. 39) PLN-530071786
...
60
STARTER SPRING PLN-545008010
...
61
Assy.-Fan Hsg PLN-530056706
...
62
SCREW PLN-530016386
...
63
Kit-Module Spacer & Screws PLN-530071731
...
64
Kit-Engine Gasket (Incl. 5,9,12,28,51) PLN-530071363
...
65
Retainer PLN-530016379
...
66
Assy-Fuel Cap PLN-530014347
...
67
Assy-Fuel Pickup PLN-530095646
...
68
Kit-Fuel Line (Small) PLN-530069247
...
69
Kit-Fuel Line (Large) PLN-530069216
...
70
FUEL TANK ASSY (Incl. filter, lines & fuel cap) PLN-545103802
...
...
...
