Weed Eater FL1500LE Gas Blower Type 1, Featherlite

Model: FL1500LE Gas Blower Type 1

Back To Assemblies

Save Part Not Listed?
product name

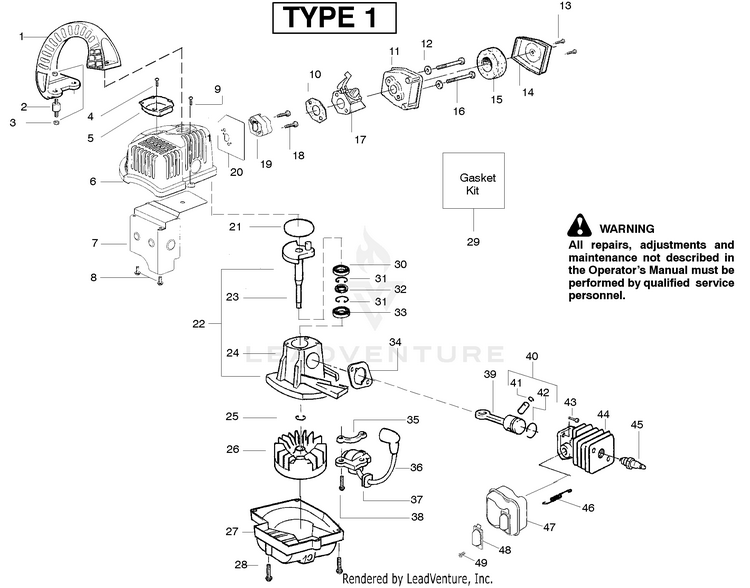

Engine Type 1

...
...
1
Handle PLN-530054429
...
2
Isolator-Handle PLN-530054432
...
3
Nut PLN-530016316
...
4
SCREW PLN-530016386
...
5
Plate-Crankcase PLN-530016258
...
6
Shroud PLN-530055336
...
7
Shield-Heat PLN-530055378
...
8
Screw PLN-530015805
...
9
Screw PLN-530015880
...
10
Gasket-Carb. (Kit) PLN-530071472
...
11
Air Box PLN-530052333
...
12
Washer PLN-530015123
...
13
Screw PLN-530015892
...
14
Cover-Air Box PLN-530052332
...
15
Foam-Air Filter PLN-530047932
...
16
Screw PLN-530016353
...
17
Kit - Carburetor Assy C1U-W12A PLN-530071629
...
17
Kit-Carburetor Ass'y. (C1U-W12A) PLN-530071629
...
18
Screw PLN-530016014
...
19
CARBURETOR ADAPTOR PLN-545030402
...
20
Gasket-Cyl/Carb. Adaptor (Kit) PLN-530071472
...
21
Gasket-C'case/Shroud (Kit) PLN-530071472
...
22
C'case & C'shaft Ass'y. (Incl. 23,24,25, & 30-33) PLN-530071625
...
23
C'case & C'shaft Ass'y. PLN-530071625
...
24
Assy.-Crankcase (Incl. 30-33) PLN-530012462
...
25
Retainer Ring (C'shaft) PLN-530015941
...
26
FLYWHEEL ASSY PLN-545221701
...
27
KIT FAN HSG PLN-545081702
...
28
SCREW PLN-530016386
...
29
Kit-Gasket (Incl. 10,20,21,34) PLN-530071472
...
30
Inner Bearing PLN-530032125
...
31
Retainer Ring (C'case) PLN-530015945
...
32
Seal-Crankcase PLN-530019179
...
33
Bearing-Outer PLN-530032124
...
34
Gasket-Cylinder (Kit) PLN-530071472
...
35
Spacer-Ign. Module PLN-530036145
...
36
Ignition Module PLN-530039163
...
37
Grommet-Ign. Module PLN-530019182
...
38
Screw PLN-530015954
...
39
CONNECTING ROD ASSY PLN-530049817
...
40
Kit-Piston (Incl. 41 & 42) PLN-530071833
...
41
Wrist Pin Retainer PLN-530015162
...
42
RING PISTON PLN-545154001
...
43
Screw PLN-530015953
...
44
Cylinder PLN-530012416
...
45
Spark Plug (RCJ-6Y) PLN-952030249
...
46
Spring-Muffler PLN-530042088
...
47
Assy-Muffler (Incl. #46) PLN-530071470
...
48
Kit-Spark Aresstor PLN-530071361
...
49
Screw PLN-530015241
