Weed Eater FL1500 Gas Blower Type 7, Featherlite

Model: FL1500 Gas Blower Type 7

Back To Assemblies

Save Part Not Listed?
product name

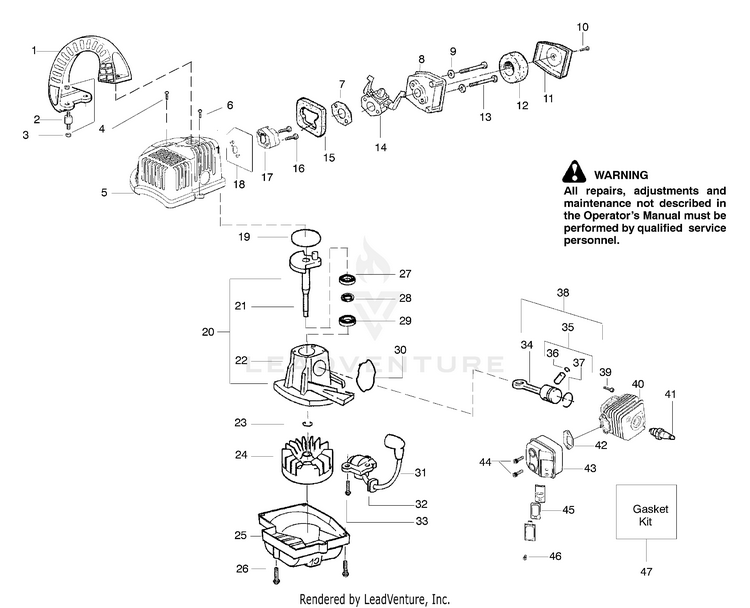

Blower Assembly Type 7

...
...
1
Handle PLN-530054429
...
2
Isolator-Handle PLN-530054432
...
3
Nut PLN-530016316
...
4
SCREW PLN-530016386
...
5
Shroud PLN-530057102
...
6
Screw PLN-530016349
...
7
Gasket-Carb. (Kit) PLN-530071472
...
8
Air Box PLN-530052333
...
9
Washer PLN-530015123
...
10
Screw PLN-530016349
...
11
Cover-Air Box PLN-530052332
...
12
Foam-Air Filter PLN-545082301
...
13
Screw PLN-530016394
...
14
Kit-Carburetor Ass'y. (C1U-W12A) PLN-530071629
...
15
Foam-Air Dam PLN-530057725
...
16
Screw PLN-530016309
...
17
Adaptor-Carb. PLN-530057634
...
18
Gasket-Cyl/Carb. Adaptor (Kit) PLN-530071472
...
19
O-ring-C'case/Shroud (Kit) PLN-530071472
...
20
Assy.-C'case & C'shaft (Incl. 21-23) PLN-530071680
...
21
C'case & C'shaft Ass'y. PLN-530071625
...
22
Assy.-Crankcase (Incl. 27-29) PLN-530012510
...
23
Retainer Ring (C'shaft) PLN-530015941
...
24
FLYWHEEL ASSY PLN-545221701
...
25
Fan Housing PLN-530058942
...
26
SCREW PLN-530016386
...
27
Inner Bearing PLN-530032125
...
28
Seal-Crankcase PLN-530019264
...
29
Bearing-Outer PLN-530055728
...
30
Seal-Cylinder (Kit) PLN-530071472
...
31
Ignition Module PLN-530039163
...
32
Grommet-Ign. Module PLN-530019182
...
33
Screw PLN-530016357
...
34
CONNECTING ROD ASSY PLN-530049817
...
35
Kit-Piston (Incl. 36 & 37) PLN-530071833
...
36
Wrist Pin Retainer PLN-530015162
...
37
RING PISTON PLN-545154001
...
38
Kit-Piston/Rod Assy. (Incl. 34,35) PLN-530071785
...
39
Screw PLN-530015953
...
40
Cylinder PLN-530012500
...
41
Spark Plug (RCJ-6Y) PLN-952030249
...
42
Gasket-Muffler (kit) PLN-530071472
...
43
Kit-Muffler (incl. #42,44-46) PLN-530071805
...
44
Bolt-Muffler PLN-530016338
...
45
Kit-Spark Aresstor PLN-530071544
...
46
Screw PLN-530015241
...
47
Kit-Gasket (incl. 7,18,19,30). PLN-530071472
...
xx
Manual Not Shown PLN-530164008
...
xx
Decal-Start Inst. Not Shown PLN-530059953
