Weed Eater FL1500 Gas Blower Type 6, Featherlite

Model: FL1500 Gas Blower Type 6

Back To Assemblies

Save Part Not Listed?
product name

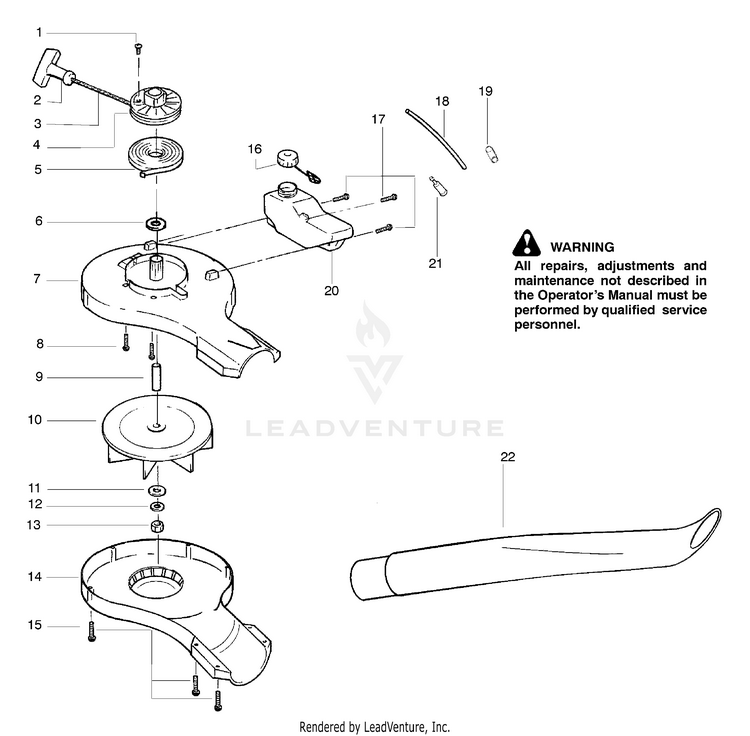

Chassis Assembly Type 1-6

...
...
1
Screw PLN-530016392
...
2
Handle-Starter PLN-530049488
...
3
Kit-Rope PLN-530069907
...
4
Kit-Starter Pulley (Incl. 1) PLN-530071792
...
5
KIT STARTER SPRING PLN-545008011
...
6
Washer PLN-530015149
...
7
Housing-Impeller (Upper) PLN-530052334
...
8
Screw PLN-530015814
...
9
Spacer-Flywheel PLN-530052434
...
10
Assy-Impeller PLN-530053237
...
11
Washer-Flat PLN-530016260
...
12
Lockwasher PLN-530092322
...
13
Nut PLN-530626605
...
14
Assy-Impeller Housing (Lower) PLN-530054181
...
15
Screw PLN-530015886
...
16
Assy-Fuel Cap PLN-530014347
...
17
Screw PLN-530016349
...
18
Kit-Fuel Line PLN-530069599
...
19
Grommet-Fuel Line PLN-530053314
...
20
Assy-Fuel Tank (Incl. cap,filter, fuel lines) PLN-545103903
...
21
Fuel Pick-up Ass'y. PLN-530095646
...
22
Tube-Blower PLN-530052337
Schematic Image Zoomed
