product name

Weed Eater EHT-18D Electric Hedgertrimmer

Model: EHT-18D Electric Hedgertrimmer

Save
 Part Not Listed?Part Not Listed?
product name

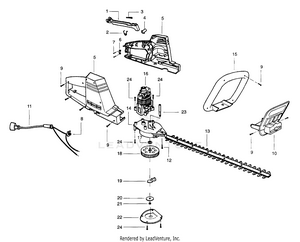

Electric Hedgetrimmer Assembly

...
...
1
Trigger Switch PLN-530403285
...
2
Spring Clip PLN-530403299
...
3
Spring - Trigger Lock PLN-530403300
...
4
Button - Trigger Lock PLN-530403286
...
5
Housing Set (R & L) PLN-530403279
...
6
Cordset Clamp PLN-530403287
...
7
Screw PLN-534826801
...
8
Switch (On/Off) PLN-530401503
...
9
Screw PLN-530340179
...
10
Shield PLN-530403282
...
11
Cordset PLN-530403293
...
12
Screw PLN-530016086
...
13
Blade Ass'y. 18" PLN-530403230
...
13
Blade Ass'y. 22" PLN-530403231
...
14
Gear Box Ass'y. PLN-530403278
...
15
Handle Ass'y. PLN-530053578
...
16
Motor Ass'y. PLN-530403277
...
17
Washer - Thrust PLN-530401228
...
18
Gear PLN-530400859
...
19
Drive Cam PLN-530400980
...
20
Washer - Cam PLN-530400876
...
21
Locknut PLN-530401229
...
22
Plate Cover PLN-530403295
...
23
Shaft PLN-530403296
...
24
Screw PLN-530015875
...
xx
Operator Manual Not shown PLN-530085735
...
...
...
