Weed Eater EBV210 Electric Blower Type 2

Model: EBV210 Electric Blower Type 2

Save Part Not Listed?
product name

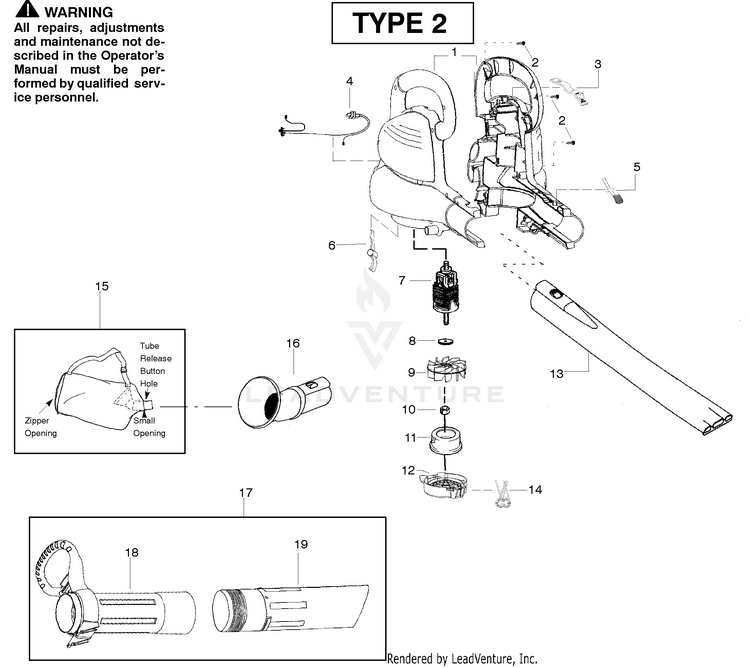

Type 2 - Product Complete

...
...
1
Housing Set (Incl. #5) PLN-530404377
...
2
Screw PLN-530016120
...
3
Cover - Switch PLN-530404397
...
4
ASSY WIRE HARNESS (incl. switch) PLN-545124301
...
5
Button - Tube Latch PLN-530404367
...
6
Button - Door Latch PLN-530404363
...
7
Assy. Motor PLN-530403770
...
8
Washer PLN-530403834
...
9
Impeller PLN-530403771
...
10
NUT LOCKING PLN-545162101
...
11
Restrictor - Inlet PLN-530403791
...
12
Door - Vacuum Inlet PLN-530404365
...
13
Tube - Blower PLN-530404368
...
14
Spring - Door PLN-530403833
...
15
Assy. - Vac Bag PLN-530095599
...
16
Tube - Elbow PLN-530404383
...
17
Tube - Upper Vac w/handle PLN-530403842
...
18
Tube - Upper Vac w/handle PLN-530403842
...
19
Kit-Upper/Lower Tube w/handle PLN-530403988
...
19
Decal - Warning Not Shown PLN-530403871
Schematic Image Zoomed
