Weed Eater EBV200 Electric Blower

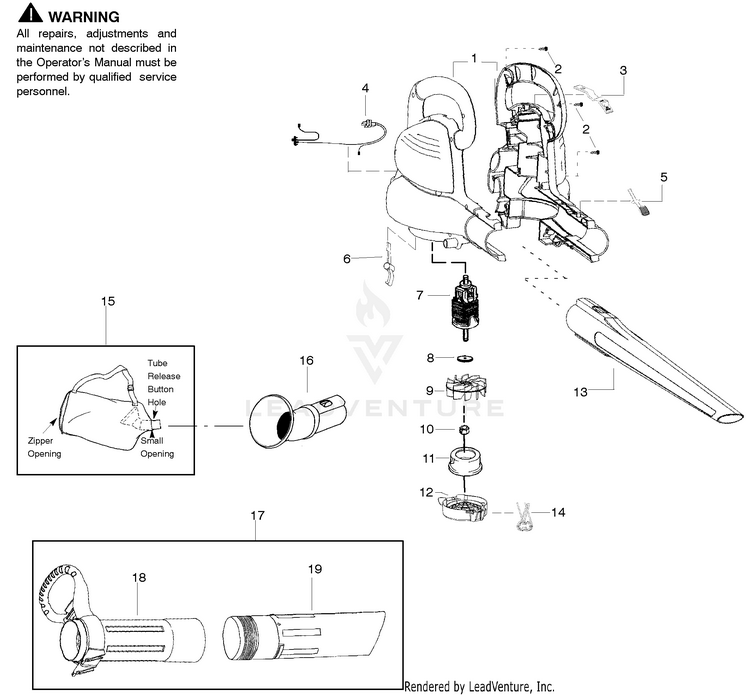

Model: EBV200 Electric Blower

Save Part Not Listed?

Product Complete

Housing Set (incl. #5) PLN-530404401

Screw PLN-530016120

Cover - Switch PLN-530403764

ASSY WIRE HARNESS (incl. switch) PLN-545124301

Button - Tube Latch PLN-530403775

Button - Door Latch PLN-530403790

Assy. Motor PLN-530403770

Washer PLN-530403834

Impeller PLN-530403771

NUT LOCKING PLN-545162101

Restrictor - Inlet PLN-530403791

Door - Vacuum Inlet PLN-530403788

Tube - Blower PLN-530403765

Spring - Door PLN-530403833

Assy. - Vac Bag PLN-530095599

Attachment-Vac Bag PLN-530403769

Tube - Upper Vac w/handle PLN-530403842

Kit-Upper/Lower Tube w/handle PLN-530403988

Manual - Operator's Not Shown PLN-545117534

Decal - Warning Not Shown PLN-545141603

No Parts Available for this Schematic
