Weed Eater E150BT Electric Edger

Model: E150BT Electric Edger

Back To Assemblies

Save Part Not Listed?
product name

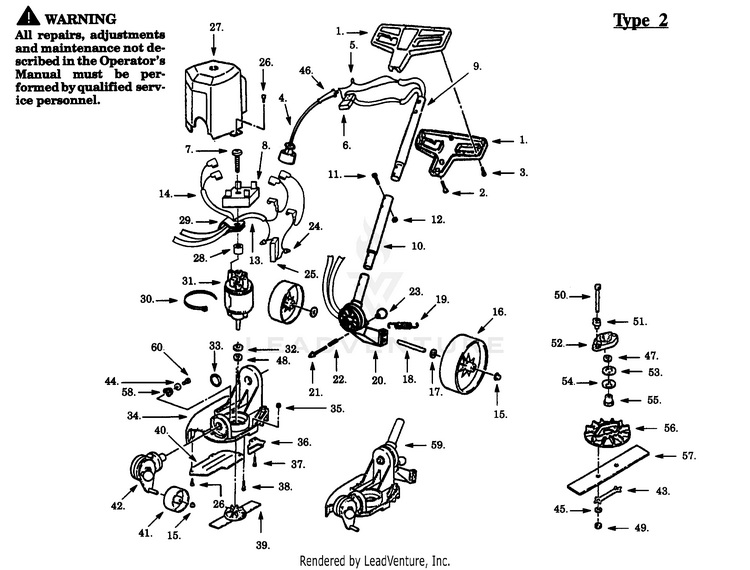

TRIMMER ASSEMBLY - TYPE 2

...
...
1
Handle Set (Incl. 1, 4 & 46) See Ser. Ref. 1 PLN-530402076
...
2
Screw PLN-534790300
...
3
Screw PLN-534790302
...
4
Power Cord PLN-530401874
...
5
Wire Nut PLN-534253201
...
6
Switch PLN-534193004
...
7
Screw PLN-534136402
...
8
Bridge PLN-530401569
...
9
Upper Tube PLN-534838001
...
10
Lower Tube PLN-534838101
...
11
Screw PLN-534774701
...
12
Locknut PLN-534828300
...
13
Harness Ass'y. (Red/White) PLN-530401597
...
14
Harness Ass'y. (Blue/White) PLN-530401596
...
15
Push Nut PLN-534121000
...
16
Rear Wheel PLN-534236800
...
17
Washer PLN-534137900
...
18
Rear Axle PLN-534137701
...
19
Spring PLN-534121300
...
20
Rear Swivel PLN-534137505
...
21
Pin-Index PLN-534700002
...
22
Swivel Lock Spring PLN-534710000
...
23
Knob PLN-534720001
...
24
Terminal Cap PLN-534561000
...
25
Resister PLN-534134500
...
26
Screw PLN-534826800
...
27
Motor Cover PLN-534824929
...
28
Spacer PLN-530027689
...
29
Clip PLN-530401567
...
30
Tie Wrap PLN-534134700
...
31
Motor Ass'y., E125BT PLN-534961801
...
31
Motor Ass'y., E150BT PLN-530400591
...
32
Washer PLN-534938100
...
33
Retaining Ring PLN-534780000
...
34
Deck Frame PLN-534130529
...
35
Locknut PLN-534315300
...
36
Blade Guide PLN-534830000
...
37
Screw PLN-534315200
...
38
Screw PLN-534136401
...
39
Blade Ass'y. PLN-534135205
...
40
Side Guard Plate PLN-534131515
...
41
Front Wheel PLN-534240003
...
42
Front Swivel Ass'y PLN-534130705
...
43
Lock Strap PLN-534135700
...
44
Washer PLN-534778000
...
45
Lockwasher PLN-534136600
...
47
Washer PLN-534758000
...
48
Washer PLN-534757900
...
49
Nut PLN-534136200
...
50
Screw PLN-534135901
...
51
Insulating Sleeve PLN-530401512
...
52
Clutch Plate PLN-534135410
...
53
Washer PLN-534136300
...
54
Spring Washer PLN-534238900
...
55
Clutch Sleeve PLN-534135500
...
56
Fan PLN-534135305
...
57
Blade PLN-534205300
...
58
Front Swivel Spring PLN-534120500
...
59
Frame Ass'y PLN-534135129
...
60
Screw PLN-534778000
...
xx
Operator Manual Not Shown. PLN-530082545
...
xx
Carton Contents Bag Not Shown. PLN-530400485
