Weed Eater E150BT Electric Edger

Model: E150BT Electric Edger

Back To Assemblies

Save Part Not Listed?
product name

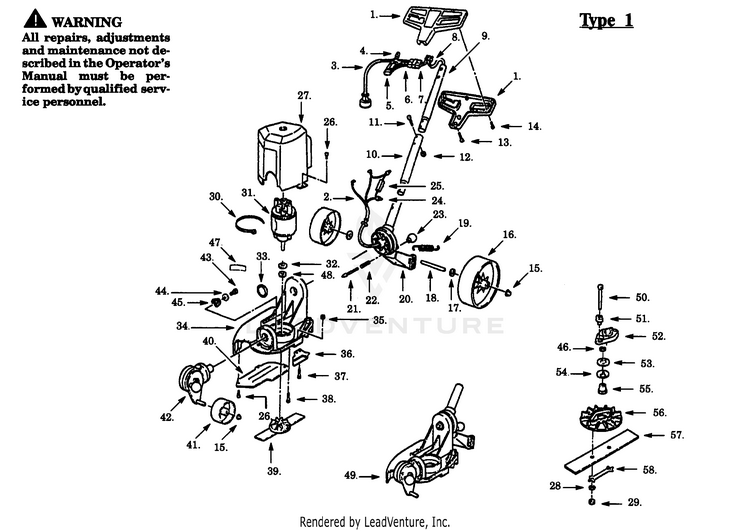

TRIMMER ASSEMBLY - TYPE 1

...
...
1
Handle Set PLN-534234229
...
2
Harness Ass'y. PLN-534337000
...
3
Power Cord PLN-534895701
...
4
Wire Nut PLN-534253201
...
5
Switch PLN-534193004
...
6
Bridge Ass'y., Model E125BT PLN-534336501
...
6
Bridge Ass'y., Model E150BT PLN-530400605
...
7
Insulator Shield PLN-534954300
...
8
Harness Ass'y., Model E125BT PLN-534337200
...
8
Harness Ass'y., Model E150BT PLN-530400604
...
9
Upper Tube PLN-534838001
...
10
Lower Tube PLN-534838101
...
11
Screw PLN-534774701
...
12
Nut PLN-530403094
...
13
Screw PLN-534790300
...
14
Screw PLN-534790302
...
15
Push Nut PLN-534121000
...
16
Rear Wheel PLN-534236800
...
17
Washer PLN-534137900
...
18
Rear Axle PLN-534137701
...
19
Spring PLN-534121300
...
20
Rear Swivel PLN-534137505
...
21
Swivel Lock Shaft PLN-534700002
...
22
Swivel Lock Spring PLN-534710000
...
23
Knob PLN-534720001
...
24
Terminal Cap PLN-534561000
...
25
Resister PLN-534134500
...
26
Screw PLN-534826800
...
27
Motor Cover PLN-534824929
...
28
Lockwasher PLN-534136600
...
29
Locknut PLN-534136200
...
30
Tie Wrap PLN-534134700
...
31
Motor Ass'y., Model E125BT PLN-534961801
...
31
Motor Ass'y., Model E150BT PLN-530400591
...
32
Washer PLN-534938100
...
33
Retaining Ring PLN-534780000
...
34
Deck Frame PLN-534130529
...
35
Locknut PLN-534315300
...
36
Blade Guide PLN-534830000
...
37
Screw PLN-534315200
...
38
Screw PLN-534136401
...
39
Blade Ass'y. PLN-534135205
...
40
Side Guard Plate PLN-534131529
...
41
Front Wheel PLN-534240003
...
42
Front Swivel Ass'y. PLN-534130705
...
43
Screw PLN-534779000
...
44
Washer PLN-534778000
...
45
Front Swivel Spring PLN-534120500
...
46
Washer PLN-534758000
...
47
Warning Label, Model E125BT PLN-534101570
...
47
Warning Label, Model E150BT PLN-534101510
...
48
Washer PLN-534757900
...
49
Edger Frame Ass'y. PLN-534135129
...
50
Screw PLN-534135901
...
51
Insulating Sleeve PLN-530401572
...
52
Clutch Plate PLN-534135410
...
53
Washer PLN-534136300
...
54
Spring Washer PLN-534238900
...
55
Clutch Sleeve PLN-534135500
...
56
Fan PLN-534135305
...
57
Blade PLN-534205300
...
58
Lock Strap PLN-534135700
...
xx
Operator Manual, Model E125BT Not Shown. PLN-534887230
...
xx
Operator Manual, Model E150BT Not Shown. PLN-530068523
...
xx
Operator Manual, Carton Contents Bag Not Shown. PLN-530400485
