Weed Eater DAHT 22 Gas Hedge Trimmer

Model: DAHT 22 Gas Hedge Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

Engine Assembly

...
...
1
Screw PLN-530016386
...
2
Assy-Shroud/H'shield PLN-530058799
...
3
O-Ring-C'case (kit) PLN-530071486
...
4
CRANKSHAFT ASSY PLN-545145801
...
5
Assy-C/case-C/shaft (Incl. #4,6 & 22) PLN-530071681
...
6
Ring-Retainer-C'shaft PLN-530015941
...
7
FLYWHEEL ASSY PLN-545221701
...
8
Washer-Flat PLN-530015828
...
9
Spacer-Flywheel PLN-530055729
...
10
Screw PLN-530015496
...
11
Plate-Baffle PLN-530055681
...
12
Screw PLN-530015882
...
13
Kit-Starter Pulley (Incl.# 12) PLN-530069353
...
14
Assy-Fan Housing PLN-545037401
...
15
Handle-Starter PLN-530027569
...
16
Kit-Rope PLN-530069232
...
17
Grommet-Ignition Module PLN-530019182
...
18
Screw-(f/hsg to shrd) PLN-530016386
...
19
STARTER SPRING PLN-545008010
...
20
Screw PLN-530016357
...
21
Ignition Module PLN-530054137
...
22
Assy-Crankcase (Incl. 23,24,25) PLN-530012510
...
23
Bearing-Outer PLN-530055728
...
24
Seal-Crankcase PLN-530019264
...
25
Bearing-Inner PLN-530032125
...
26
Screw PLN-530015934
...
27
Seal-Cylinder (kit) PLN-530071486
...
28
Kit-Piston/Rod Assy. (Incl. 29 & 30) PLN-530071785
...
29
CONNECTING ROD ASSY PLN-530049817
...
30
Kit-Piston (Incl. 31 & 32) PLN-530071476
...
31
Retainer-Piston Pin PLN-530015162
...
32
PISTON RING PLN-545154009
...
33
Gasket-Carb. Adapt. (kit) PLN-530071486
...
34
Adapter-Carburetor PLN-530057634
...
35
Screw PLN-530016309
...
36
Kit-Carburetor Ass'y. (C1U-W13) PLN-530071633
...
37
Kit-Choke Lever PLN-530071718
...
38
Air Box PLN-530055680
...
39
Screw PLN-530016429
...
40
Air Filter Foam PLN-530047932
...
41
Air Filter Cover PLN-530055679
...
42
Screw PLN-530015957
...
43
Washer PLN-530015123
...
44
Gasket-Carburetor (kit) PLN-530071486
...
45
Assy-Throttle Cable PLN-530058756
...
46
Spark Plug (RCJ-6Y) PLN-952030249
...
47
Cylinder PLN-530012553
...
48
Screw PLN-530015953
...
49
Gasket-Muffler (kit) PLN-530071486
...
50
Kit-Muffler (incl. # 49,51.52,53) PLN-530071682
...
51
Bolt-Muffler PLN-530016338
...
52
Kit-Spark Arrestor PLN-530071544
...
53
Screw PLN-530015241
...
54
Assy-Pick-up PLN-530095992
...
55
Kit-Fuel Line (small) PLN-530069247
...
56
Kit-Fuel Line (large) PLN-530069216
...
57
Fitting-Fuel Line PLN-530023877
...
58
Clip-Retainer PLN-530016103
...
59
Kit-Gasket (Incl. #3,27,33,44,49) PLN-530071486
...
xx
Operator Manual Not Shown PLN-545137501

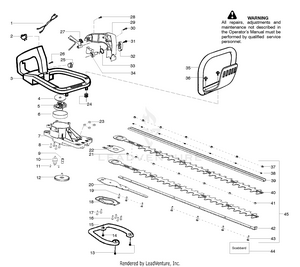

Tank & Blade Assembly

...
...
1
WIRE HARNESS ASSY (Incl. #2) PLN-545172901
...
2
Switch-Ignition PLN-530029954
...
3
HANDLE PLN-530071655
...
4
Washer-Clutch PLN-530015611
...
5
CLUTCH ASSY PLN-530057740
...
6
Assy-Drum PLN-530150583
...
7
Assy-Gear Box (incl.# 9,10,11,16,17) PLN-530071994
...
8
Screw PLN-530015886
...
9
Bearing-Gear PLN-530016013
...
10
Assy-Pinion PLN-530096258
...
11
Screw PLN-530015805
...
12
Assy-Gear PLN-530096338
...
13
Screw PLN-530015934
...
14
Screw PLN-530015849
...
15
Plate-Isolator PLN-530036046
...
16
Screw PLN-530016472
...
17
Screw PLN-530015940
...
18
Cover-Gear Box Plate PLN-530029916
...
19
Screw PLN-530016476
...
20
Plate-Bearing PLN-530150582
...
21
Spacer (Qty. 1) PLN-545047301
...
22
Spacer-Plate PLN-545047401
...
23
Nut PLN-545009101
...
24
Spring PLN-530029946
...
25
FUEL CAP ASSY W/RET LW PRM PLN-577858601
...
26
Screw PLN-530016406
...
27
Lockout-Throttle PLN-530053900
...
28
Screw PLN-530015934
...
29
Kit-Handle Cover PLN-545008001
...
30
Screw PLN-530015940
...
31
Screw PLN-530015775
...
32
Lever-Trigger PLN-530057818
...
33
Spring-Trigger PLN-530036123
...
34
Trigger PLN-530053884
...
35
Handle-Front PLN-530094992
...
36
Screw PLN-530015955
...
37
Nut (Qty. 7) PLN-530016478
...
38
Lockwasher (Qty. 7) PLN-545053101
...
39
Bar-Top PLN-530044954
...
40
Blade-recipricating (Qty. 2) PLN-530096334
...
41
Spacer (Qty. 6) PLN-530150580
...
42
Bar-Bottom PLN-530044953
...
43
Screw (Qty. 4) PLN-530016477
...
44
Scabbard-Blade PLN-530031193
...
45
ASSY BLADE 22" (Incl. 19,20,21,37,38,39,40,41,42,43) PLN-545055701
...
...
...
