Weed Eater BV1850 Gas Blower Type 3, Barracuda

Model: BV1850 Gas Blower Type 3

Back To Assemblies

Save Part Not Listed?
product name

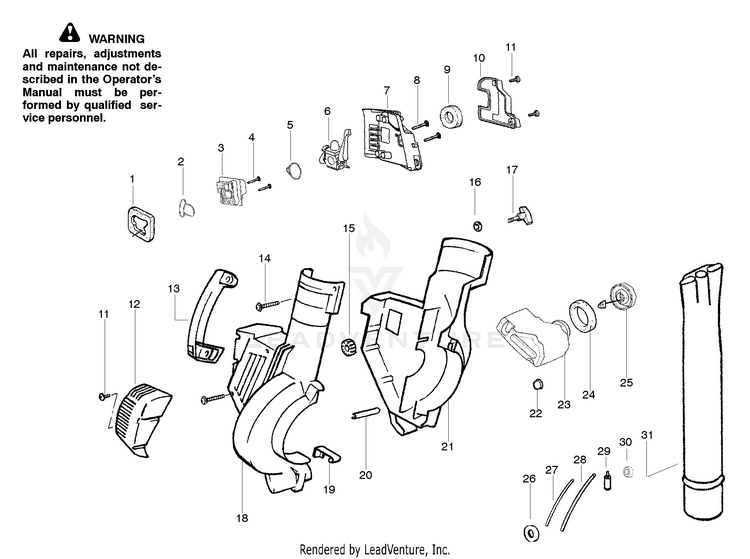

Handle, Chassis & Blower Assembly Type 3

...
...
1
Air Dam (kit) PLN-530071459
...
2
Gasket-Adapter (kit) PLN-530071458
...
3
Carburetor Adaptor PLN-530035561
...
4
Screw PLN-530016309
...
5
Gasket-Carburetor (kit) PLN-530071458
...
6
Kit-Carb Ass'y (C1Q-W11) PLN-530071465
...
6
KIT CARB ASSY C1Q-W11 PLN-530071775
...
6
Kit-Carb Ass'y (WT-606) PLN-530071775
...
7
Air Box PLN-530056629
...
8
Screw-Carb. PLN-530015849
...
9
Filter-Air PLN-530049383
...
10
Cover-Air Filter PLN-530056581
...
11
Screw PLN-530016349
...
12
Guard-Muffler PLN-545085001
...
13
Handle PLN-530095469
...
14
Screw PLN-530015886
...
15
Isolator PLN-530049323
...
16
Nut PLN-530015197
...
17
Knob-Blower PLN-530016322
...
18
Housing-Right PLN-530056682
...
19
Spring-Cover Latch PLN-530402044
...
20
Guide-Starter Rope PLN-530049617
...
21
SHROUD LH WE GREEN PLN-530057631
...
22
Isolator-Crankcase PLN-530036792
...
23
Assy-Fuel Tank PLN-545058007
...
24
Gasket-Fuel Tank PLN-530049527
...
25
Assy - Fuel Cap w/retainer PLN-530057973
...
26
Grommet-Shroud PLN-530049656
...
27
Kit-Line Carb/Purge PLN-530069247
...
28
Kit-Line Tank/Purge PLN-530069216
...
29
Assy-Fuel Pick-up PLN-530095646
...
30
Grommet-Fuel line (kit) PLN-530071459
...
31
Tube - Blower BV - 1850 PLN-530095597
...
31
Tube - Blower BV - 2000 PLN-530095593
...
xx
Tube - Blower Operator Manual Not Shown PLN-530163804
...
xx
Tube - Blower Warning Decal Not Shown PLN-530057414
...
xx
Tube - Blower Decal-Start Inst. Not Shown PLN-530057215
