product name

Weed Eater BV1850 Gas Blower Type 3, Barracuda

Model: BV1850 Gas Blower Type 3

Back To Assemblies

Save Part Not Listed?
product name

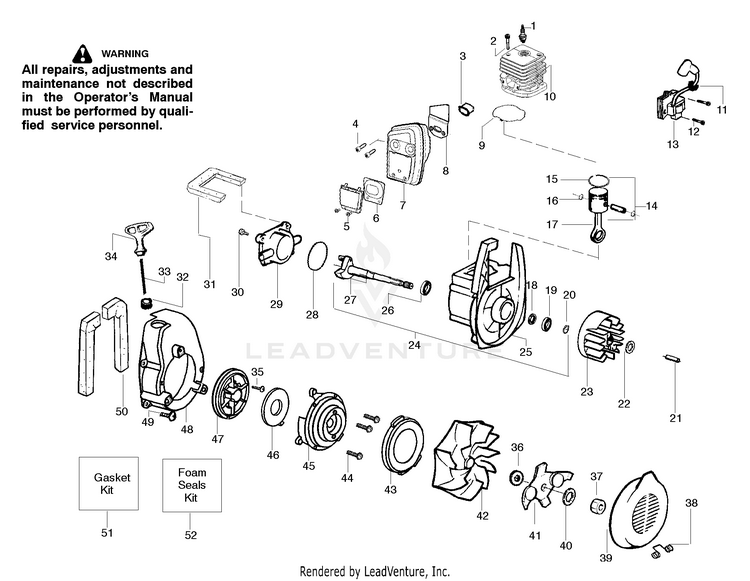

Engine Assembly Type 3

...
...
1
Spark Plug (RCJ-6Y) PLN-952030249
...
2
Screw PLN-530015953
...
3
Insulator-Heat PLN-530055191
...
4
Screw-Muffler-Internal PLN-530016387
...
5
Screw PLN-530015241
...
6
Kit-Spark Screen (incl. #5) PLN-530071593
...
7
MUFFLER KIT (incl. 4,5,6, & 8) PLN-530071592
...
8
Gasket-Baffle (kit) PLN-530071458
...
9
Gasket-Cylinder (kit) PLN-530071458
...
10
Kit-Cylinder PLN-530071457
...
11
Grommet-Ign. Module PLN-530019182
...
12
Screw-Ignition Module PLN-530016357
...
13
Ignition Module PLN-530035505
...
14
Kit-Piston (Incl. 15 & 16) PLN-530071833
...
15
RING PISTON PLN-545154001
...
16
Retainer-Piston Pin PLN-530015162
...
17
CONNECTING ROD ASSY PLN-530049817
...
18
Kit-Crankcase Seal PLN-530071615
...
19
Bearing-Outer PLN-530055728
...
20
Retainer Ring-C'chaft PLN-530015941
...
21
Spacer-Flywheel PLN-530016190
...
22
Washer PLN-530015149
...
23
FLYWHEEL ASSY PLN-530047534
...
24
Assy-Crankcase/Crank shaft (incl. 20,25.27) PLN-530071456
...
25
Assy-Crankcase (Incl. 18,19,26) PLN-530012492
...
26
Bearing-Inner PLN-530032125
...
27
Assy-Crankshaft PLN-530012452
...
28
O-ring-C/case (kit) PLN-530071458
...
29
Cover-Crankcase PLN-530012443
...
30
SCREW PLN-530016386
...
31
Foam-219mm (kit) PLN-530071459
...
32
Eyelet-Flange PLN-530029182
...
33
Kit-Rope (Incl. 35) PLN-530071467
...
34
Handle-Starter PLN-530054834
...
35
Screw-Rope PLN-530016391
...
36
Washer-Belleville PLN-530016240
...
37
Nut PLN-530626605
...
38
Spring-Return Cover PLN-530402043
...
39
Inlet Door PLN-530049313
...
40
Washer-Flat (bv1850 only) PLN-530016279
...
41
Mulch Blade PLN-530095355
...
42
Assy-Impeller PLN-530069817
...
43
Seal-Ring PLN-530056625
...
44
Screw PLN-530016349
...
45
Housing-Pulley PLN-530055101
...
46
KIT STARTER SPRING PLN-545008011
...
47
PULLEY STARTER PLN-545150201
...
48
Fan Housing PLN-530055102
...
49
SCREW PLN-530016386
...
50
Foam-182mm (kit) PLN-530071459
...
51
Kit-Gasket (page 3 incl. 2, & 5 ); (page 6 incl. 8,9, & 28 ) PLN-530071458
...
52
Kit-Foam Seals (page 3 incl. 1,30); (page 6 incl. 31 & 50) PLN-530071459
